Coxreels 1185-2028 Hose Reel 1.5 Inch Id 125 Ft

Product Description

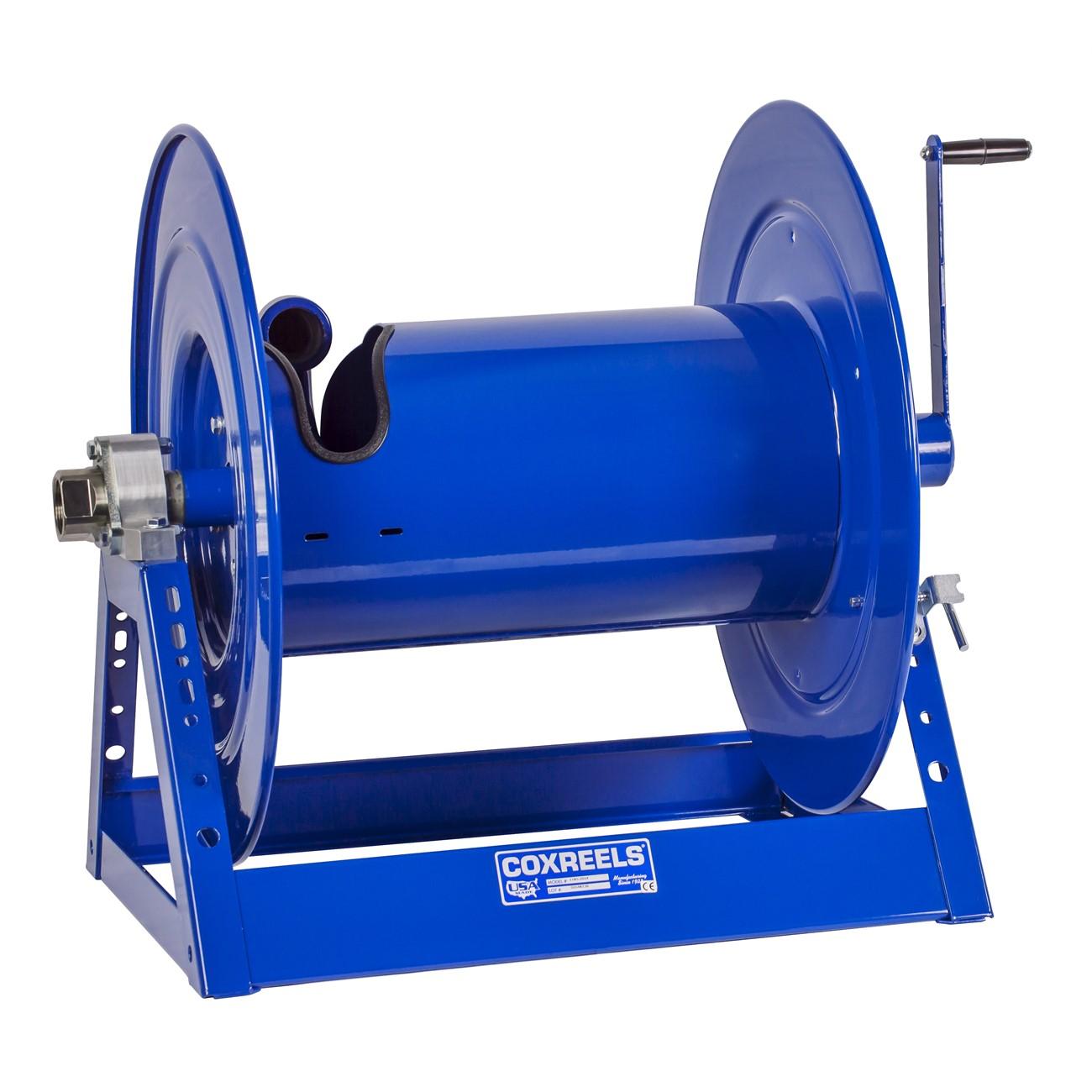

The COXREELS 1185-2028 is a heavy-duty hose reel from the 1185 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. At 109 pounds and measuring 32 inches long by 32 inches wide by 34 inches tall, this reel is constructed around a one-piece all-welded steel A-frame base, providing the structural rigidity needed to carry the extra weight of large-bore hose in demanding service environments. It accommodates hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter up to 125 feet in length. Licensed HVAC technicians, plumbers, and industrial service professionals install this unit in applications where standard lightweight reels cannot meet the volume or weight requirements.

The 1185-2028 is suited for commercial and industrial settings where high-flow hose management is critical. Its open drum slot design and exclusive low-profile outlet riser prevent hose crimping and ensure a flat, smooth hose wrap during both deployment and retraction. The direct hand crank provides mechanical retraction without the need for powered assistance. Mobile applications such as service trucks and field equipment mounting are supported by the base mounting pattern, which allows straightforward installation and detachment in the field.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel enables seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece all-welded 0.25-inch steel A-frame base, not bolted, for superior structural integrity
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and maintains a flat, smooth wrap
• Permanently lubricated horizontal surface-mount bearings for consistent, low-effort rotation
• Chip-resistant, rust-inhibiting CPC powder coat finish with long-handled locking pin and direct hand crank for mechanical retraction

Compatibility

Designed as an OEM-style replacement and direct fitment option for industrial and commercial hose reel applications requiring 1.5-inch ID hose accommodation up to 125 feet in length.

Installation Notes

Installation is typically performed by licensed plumbers, industrial mechanics, or qualified service technicians familiar with high-volume fluid transfer equipment. Shut off and depressurize the connected fluid supply line completely before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the provided mounting pattern, following applicable load and fastener requirements for the installation environment. Do not exceed the hose size and length specifications for this reel model.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 125 feet
• Unit Weight: 109 pounds
• Length: 32 inches
• Width: 32 inches
• Height: 34 inches
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255833593

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028
