Coxreels 1185-2028-H Hose Reel 1.5 in Id 125 Ft

Product Description

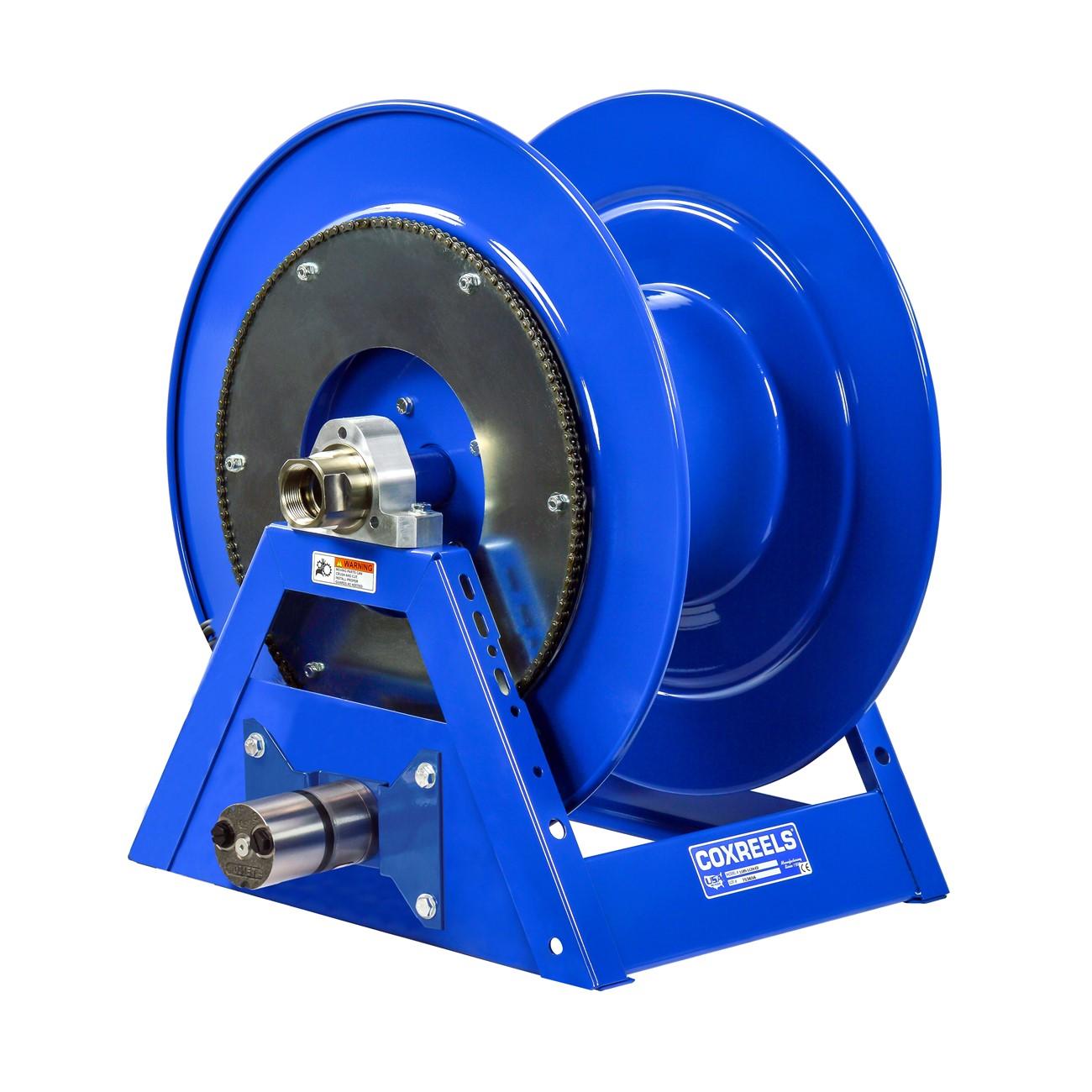

The COXREELS 1185-2028-H is a heavy-duty hose reel from the 1185 Series, engineered for high-volume fluid delivery applications requiring long runs of large-diameter hose. Built around an all-welded steel A-frame base, this reel accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, handling up to 125 feet of hose. The unit ships at 117 pounds and measures 44 inches long, 28 inches wide, and 34 inches tall. It is driven by a hydraulic motor and can also be operated by hand crank. HVAC contractors, industrial maintenance crews, and mobile service technicians install this reel where large-bore hose management and consistent flow volume are required.

The 1185-2028-H is suited for commercial and industrial installations where high flow rates demand large-diameter hose in extended lengths. The open drum design and low-profile outlet riser are built to prevent hose kinking and ensure a flat, even wrap across the drum. Its mounting pattern is located in the steel base, making it straightforward to secure to service trucks, equipment skids, or fixed facility mounts. The reel is a practical choice for fluid transfer, wash-down, and similar high-volume applications in mobile and stationary setups.

Key Features

• Hydraulic motor drive with hand crank capability for flexible operation
• Electroless nickel-plated steel full-flow NPT in-line swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• One-piece, all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CPC powder coat finish for chip resistance and rust inhibition in demanding environments

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and commercial hose reel applications requiring 1.5-inch ID hose in lengths up to 125 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic systems and fluid handling equipment. Shut down and depressurize the hydraulic circuit before connecting or disconnecting the motor drive lines. Secure the reel to a flat, load-rated surface using the integrated base mounting pattern and appropriately rated hardware. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 125 feet
• Drive Type: Hydraulic motor with hand crank
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel: Electroless nickel-plated steel full-flow NPT in-line swivel
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 117 pounds
• UPC: 674255857018

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-H
