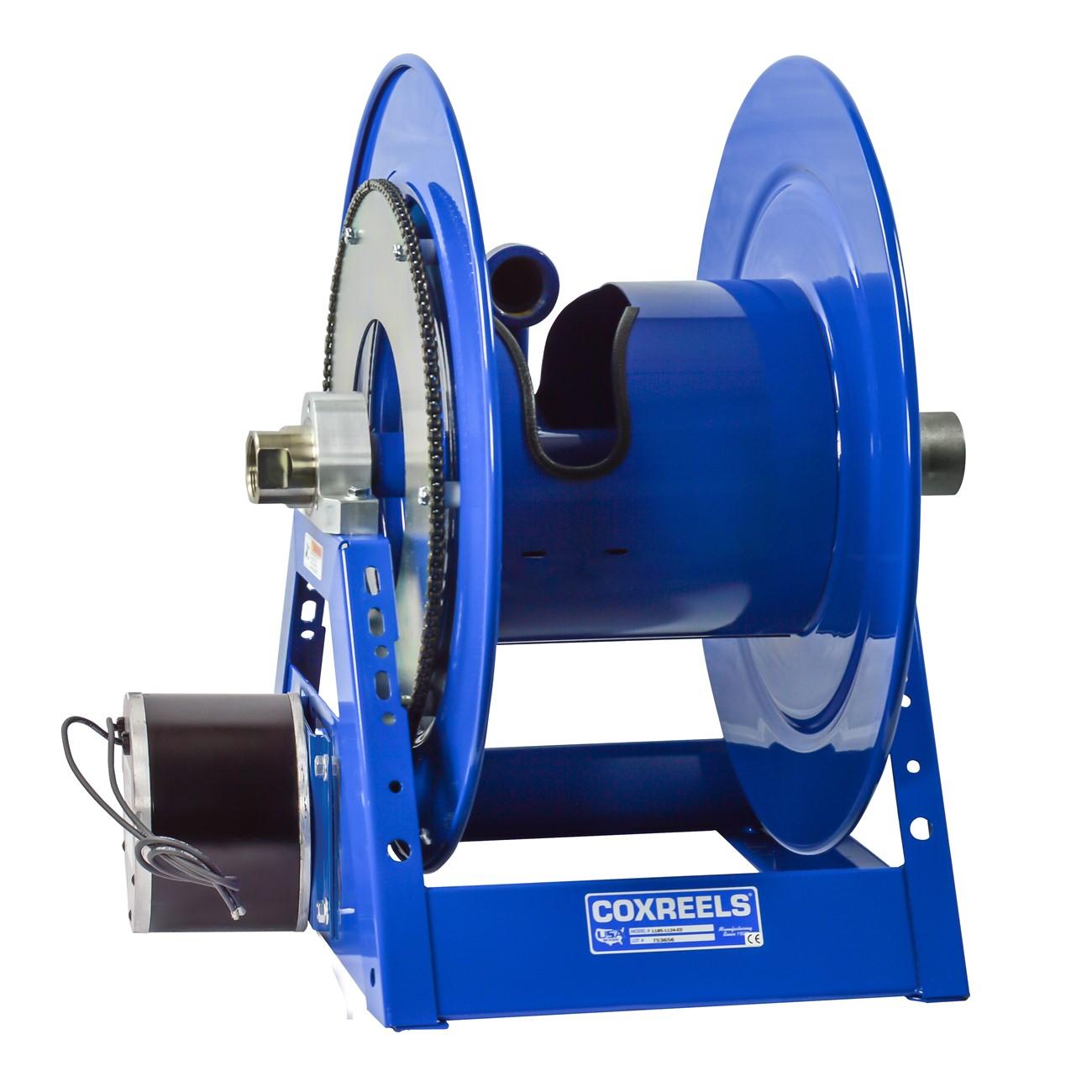

Coxreels 1185-2028-EF Hose Reel 1.5 in Id 125 Ft Motor Driven

Product Description

The COXREELS 1185-2028-EF is a heavy-duty, motor-driven hose reel from the 1185 Series, engineered for high-volume fluid delivery using long runs of large-diameter hose. The reel features a 1.5-inch inner diameter and accommodates hose up to 125 feet in length, making it well suited for demanding flow applications. Power comes from a 24-volt DC, 1/3 HP reversible motor that drives both retrieval and deployment. An exclusive low-profile outlet riser paired with an open drum slot design keeps the hose wrap flat and non-crimping, protecting hose integrity over repeated use cycles. Licensed HVAC, plumbing, and industrial service technicians are the primary installers of this reel class.

The 1185-2028-EF is built for applications requiring increased volume delivery over extended hose lengths, including mobile service rigs, fleet maintenance bays, industrial facilities, and commercial service operations. The all-welded steel A-frame base gives it the structural rigidity to handle the additional weight of large-diameter hose in mobile environments where vibration and shifting loads are common. Its mounting pattern is integrated into the steel base, simplifying installation and removal from service vehicles or fixed stations.

Key Features

• 24-volt DC, 1/3 HP reversible motor for powered hose retrieval and deployment
• 1.5-inch ID hose capacity up to 125 feet for high-volume delivery applications
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• One-piece CNC robotically welded 1/4-inch steel A-frame base for superior structural strength without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Long-lasting CPC powder coat finish provides chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1185 Series platform for large-diameter, high-volume hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and low-voltage DC electrical connections. Disconnect all power sources before wiring the motor drive circuit and verify the supply voltage matches the 24-volt DC motor requirement prior to energizing. Secure the reel to its mounting surface using the integrated base mounting pattern and confirm all fasteners are torqued to the mounting surface manufacturer specification. Follow applicable local codes and equipment manufacturer guidelines for hose connections, pressure ratings, and mobile mounting requirements.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 125 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 1/4-inch welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 122 pounds
• UPC: 674255857643

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-EF
