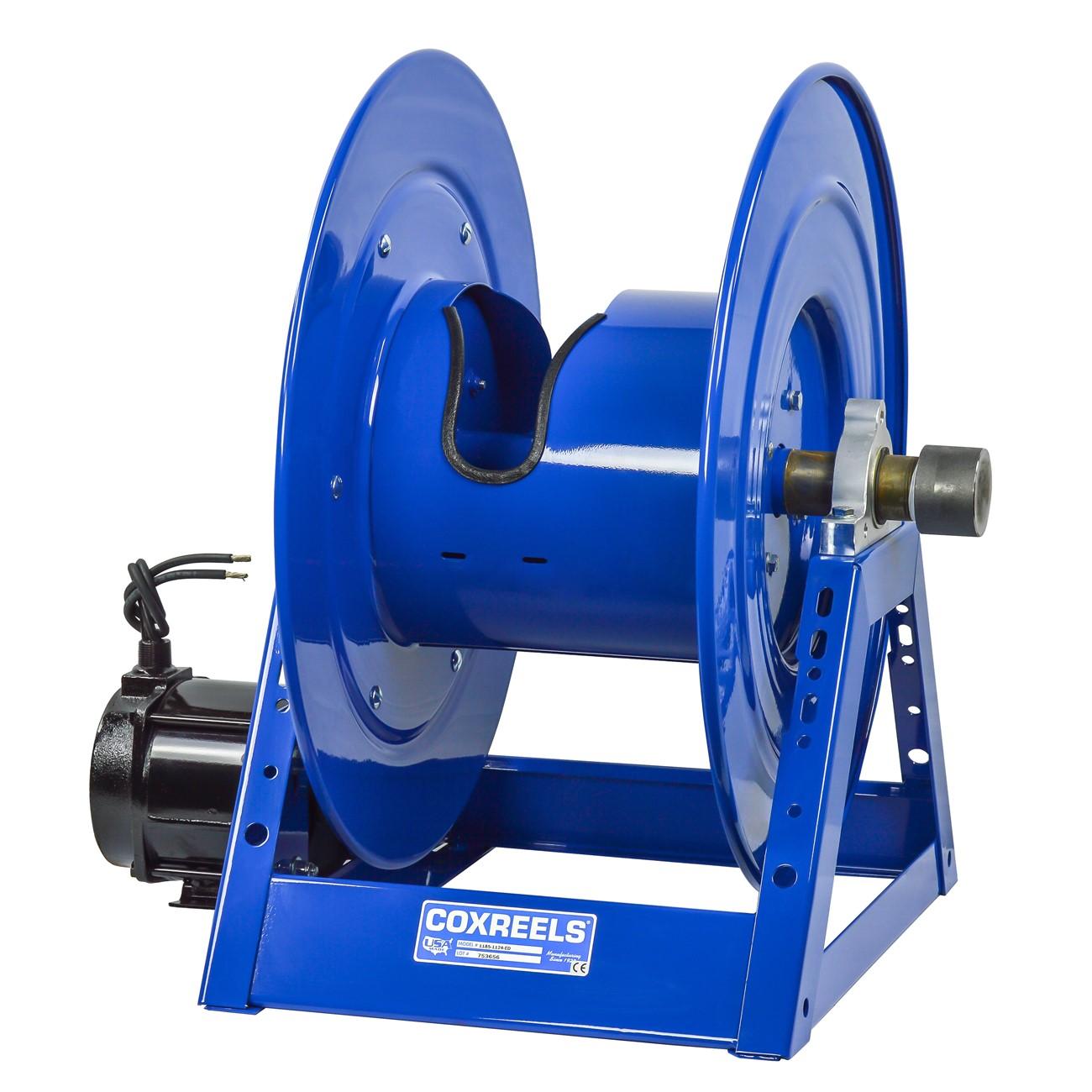

Coxreels 1185-2028-ED-BYXX Storage Hose Reel 12V Dc

Product Description

The COXREELS 1185-2028-ED-BYXX is a heavy-duty motorized storage hose reel built for industrial and trade applications that demand reliable handling of long-length materials. Constructed with a steel all-welded A-frame base and CNC robotically spun ribbed discs, this reel is engineered for stationary or mobile use in demanding environments. It is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor, making it suited for use in locations where ignition hazards are a concern. At 135 pounds, the unit is a substantial piece of equipment intended for permanent or semi-permanent installation by qualified maintenance or industrial trade professionals.

This storage reel is designed for facilities, fleet operations, industrial plants, and field service environments where large quantities of hose, cord, cable, rope, wire, barbed wire, tape, chain, or collapsible hose must be stored and deployed efficiently. It is equally functional on stationary mounts or mobile service vehicles. The motorized drive allows controlled retrieval without manual cranking, reducing operator fatigue during repeated use cycles. No swivel and no riser are included, as this unit is purpose-built for storage rather than fluid or gas transfer.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered retrieval in hazardous-rated environments
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and operator safety
• All-welded 1/4-inch steel A-frame base — no bolted joints — provides superior reel rigidity and easy mounting
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust for extended durability in field conditions

Compatibility

Designed as a storage reel for long-length materials including hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain. No swivel or riser is included; this reel is not intended for active fluid or gas transfer applications.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial reel mounting and 12V DC electrical connections. Disconnect and lock out all power sources before wiring the motor. The steel base includes a factory mounting pattern for secure attachment to a floor, wall mount, or vehicle surface. Verify that the installation environment is rated for the explosion-proof motor classification before energizing the unit.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: Steel, 1/4 inch all-welded A-frame
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated self-aligning pillow block
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 135 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-ED-BYXX
