Coxreels 1185-2028-ED-BUXX Hose Reel 1-1/2 Inch Id

Product Description

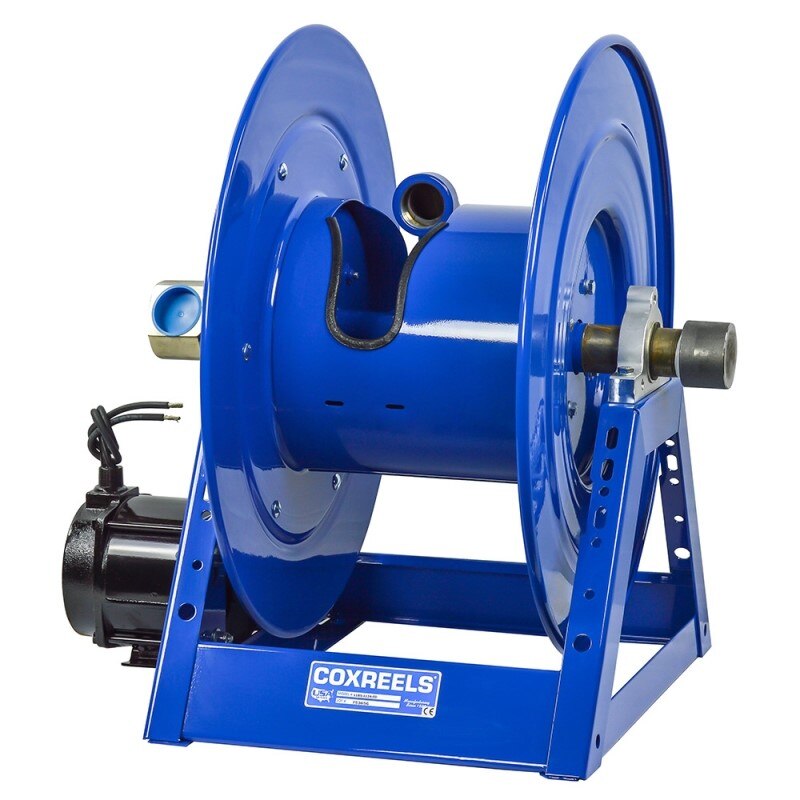

The COXREELS 1185-2028-ED-BUXX is a motor-driven hose reel engineered for high-volume fluid delivery through large-diameter hose. Built on the 1185 Series platform, it combines a 12-volt DC, 1/2 HP explosion-proof reversible motor with a fully welded steel A-frame base to handle the added weight of long, large-bore hose runs. The electroless nickel-plated steel swivel with ball bearings allows full-flow NPT connection without removing the reel from its mount. An exclusive low-profile outlet riser and open drum slot design ensures a non-crimping, flat smooth hose wrap on every retraction. The unit weighs 135 pounds and measures 44 inches long by 28 inches wide by 34 inches tall.

This reel is suited for industrial, commercial, and mobile applications that demand reliable delivery of large volumes through 1-1/2 inch ID hose. The open drum and welded base design make it a practical choice for truck-mounted or stationary service setups where heavy hose loads are routine. Demanding mobile environments are a primary use case, and the powder coat finish resists chips and rust in field conditions. A licensed technician or qualified mechanic familiar with high-flow fluid systems and low-voltage DC wiring should perform installation and commissioning.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval in hazardous-rated environments
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose connection without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Low-profile outlet riser and open drum slot design eliminates hose crimping and promotes flat, even wrapping
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure, repeatable installation
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition in field and mobile environments

Compatibility

Designed for use with 1-1/2 inch ID hose in the COXREELS 1185 Series configuration. Consult COXREELS documentation to confirm hose OD, length rating, and fluid media compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with low-voltage DC electrical systems and high-flow fluid handling equipment. Disconnect and lock out all power and fluid supply lines before mounting or servicing the reel. The base mounting pattern is integrated into the steel frame — use appropriate fasteners rated for the load and mounting surface. Verify motor wiring and explosion-proof integrity comply with applicable NEC requirements for the installation environment before energizing.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Motor: 12V DC, 1/2 HP, explosion-proof reversible
• Frame Material: 12-gauge steel, fully welded
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 135 pounds
• UPC: 674255856417

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-ED-BUXX
