Coxreels 1185-2028-E Hose Reel 1.5 in Id 125 Ft Motor Driven

Product Description

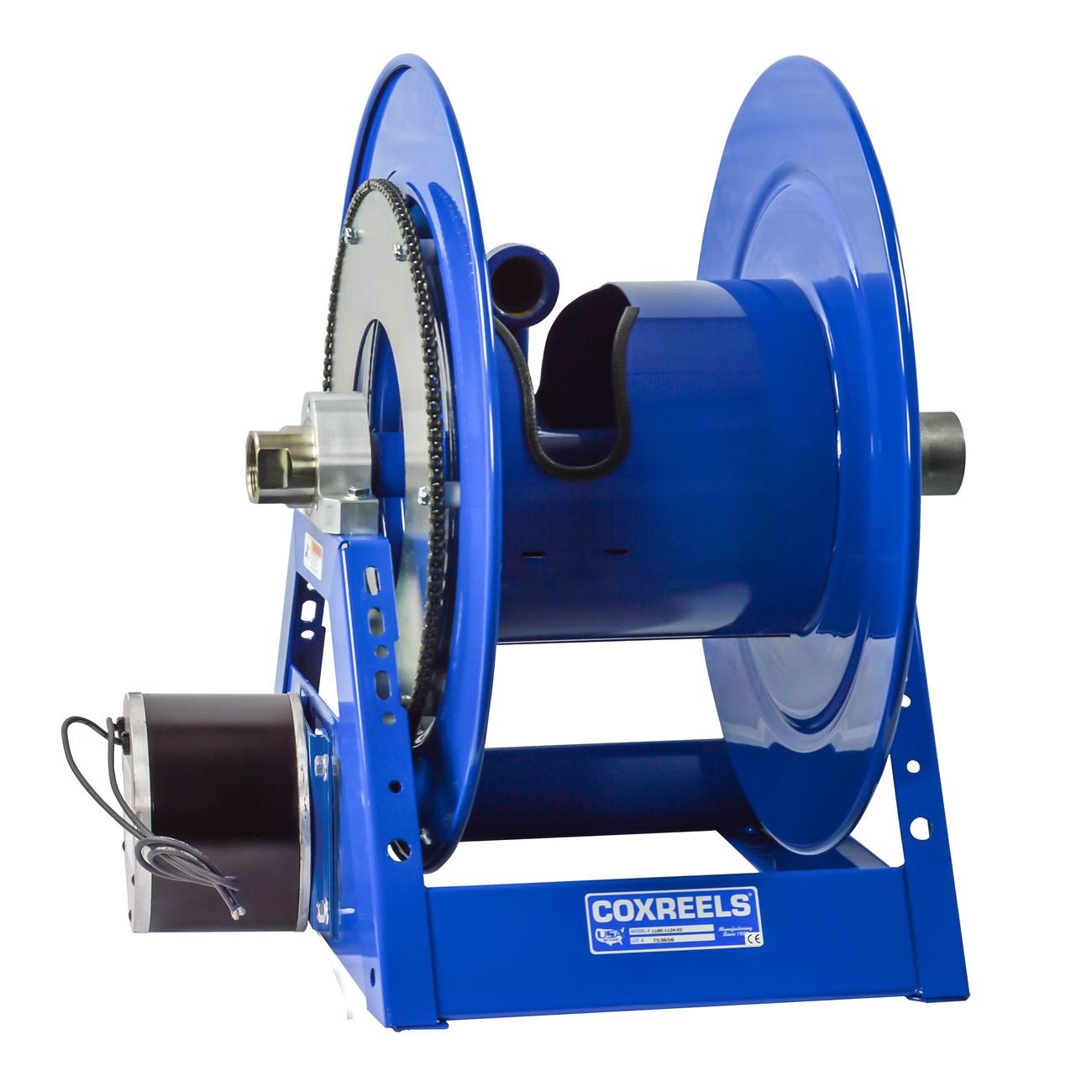

The COXREELS 1185-2028-E is a heavy-duty hand crank and motor driven hose reel from the 1185 Series, built to manage long lengths of large diameter hose in high-volume delivery applications. It features a 1.5 inch inner diameter hose path and an open drum design with an exclusive low-profile outlet riser that produces a non-crimping, flat smooth hose wrap. The all-welded steel A-frame base is constructed from 0.25 inch steel plate and robotically welded as a single piece for structural rigidity. A 12V DC, 0.33 HP reversible motor drives the reel, making it suited for demanding mobile and stationary installations where manual retrieval of heavy hose is impractical.

The 1185-2028-E is intended for industrial, municipal, and mobile service applications that require controlled deployment and retrieval of large diameter hose. Typical use cases include fuel delivery, water transfer, agriculture, and industrial fluid handling. The reel is designed for installations where extended hose runs and elevated flow volume are required, and it performs in both fixed mounting configurations and mobile vehicle-mounted setups. The reel ships as a single unit and mounts via a bolt pattern integrated into the steel base.

Key Features

• 12V DC, 0.33 HP reversible motor for powered hose retrieval and deployment
• Low-profile outlet riser and open drum slot design prevent hose crimping and ensure flat, even wrap
• One-piece robotically welded 0.25 inch steel A-frame base for superior structural strength
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface mount bearings for smooth rotation
• CPC powder coat finish resists chips and rust for extended service life

Compatibility

Designed as an OEM-style replacement or direct application reel for large diameter hose systems requiring a 1.5 inch inner diameter inlet connection and motor-driven retrieval in mobile or stationary configurations.

Installation Notes

Installation is typically performed by a qualified mechanic or industrial service technician. Disconnect and lock out all electrical power and depressurize the hose system completely before mounting or servicing the reel. Secure the unit to a structurally sound surface using the integrated base mounting pattern with hardware rated for the reel weight of 122 pounds. Verify that the 12V DC power supply circuit is properly fused and rated for continuous motor load before energizing.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 125 feet
• Motor: 12V DC, 0.33 HP reversible
• Frame Material: 0.25 inch welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel Material: Electroless nickel plated steel
• Weight: 122 pounds
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• UPC: 674255833883

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-E
