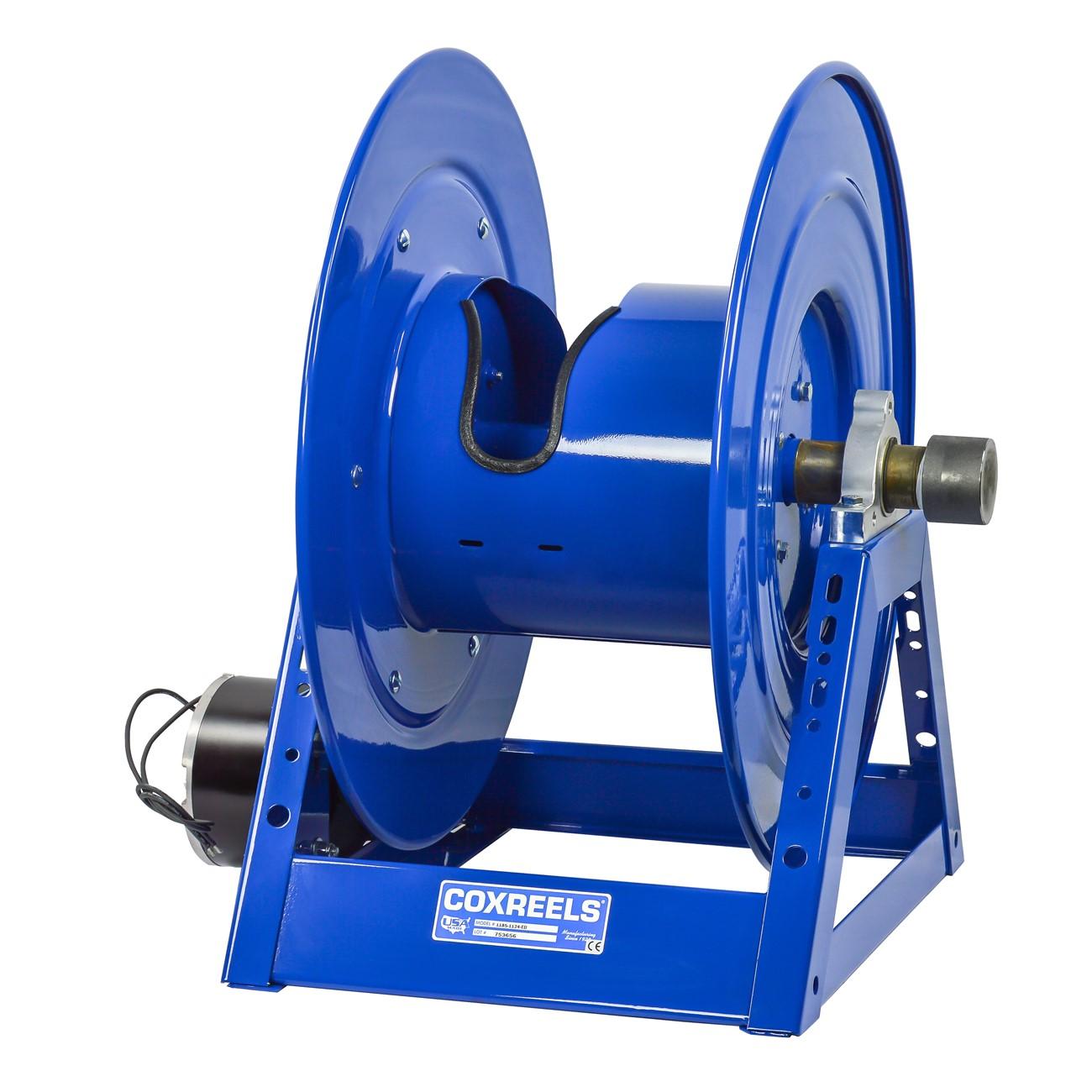

Coxreels 1185-2028-E-BYXX Storage Hose Reel 12V Dc

Product Description

The COXREELS 1185-2028-E-BYXX is a heavy-duty motorized storage hose reel built for industrial and trade applications. It features a 12-volt DC, 1/3 HP reversible electric motor for powered retrieval and a welded steel A-frame base for a rigid, bolt-free structure. The reel stores and maintains long lengths of hose, cord, cable, rope, wire, tape, chain, and similar materials. CNC robotically spun and ribbed steel discs with rolled edges provide structural strength while protecting stored material and improving operator safety. At 122 pounds, this is a substantial unit designed for demanding stationary or mobile deployments.

This reel is suited for contractors, fleet maintenance operations, industrial facilities, and other professional environments where large quantities of hose, cable, or cordage must be stored, dispensed, and retrieved efficiently. The motorized drive makes it practical in settings where manual retrieval of heavy or long runs is impractical. Its mounting pattern in the steel base allows straightforward installation on trailers, service trucks, or fixed floor positions. The unit ships as a single piece and is appropriate for both stationary and mobile use cases.

Key Features

• 12-volt DC, 1/3 HP reversible electric motor for powered spool-in and spool-out operation
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and material protection
• Sturdy one-piece, all-welded 1/4-inch steel A-frame base — not bolted — for superior structural integrity
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life

Compatibility

Designed as an OEM-style storage reel for professional use with hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, chain, and similar long-length materials on stationary or mobile platforms.

Installation Notes

Installation should be performed by a qualified technician familiar with 12-volt DC electrical systems and mechanical reel mounting. Disconnect and isolate the power supply before making any electrical connections to the motor. Secure the reel to its mounting surface using the integrated base mounting pattern and appropriately rated fasteners for the application. Verify that the mounting surface can support the unit weight of 122 pounds plus the load of stored material before placing in service.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: Steel, 1/4-inch welded A-frame
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated, self-aligning pillow block
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 122 pounds
• UPC: 674255857667

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-E-BYXX
