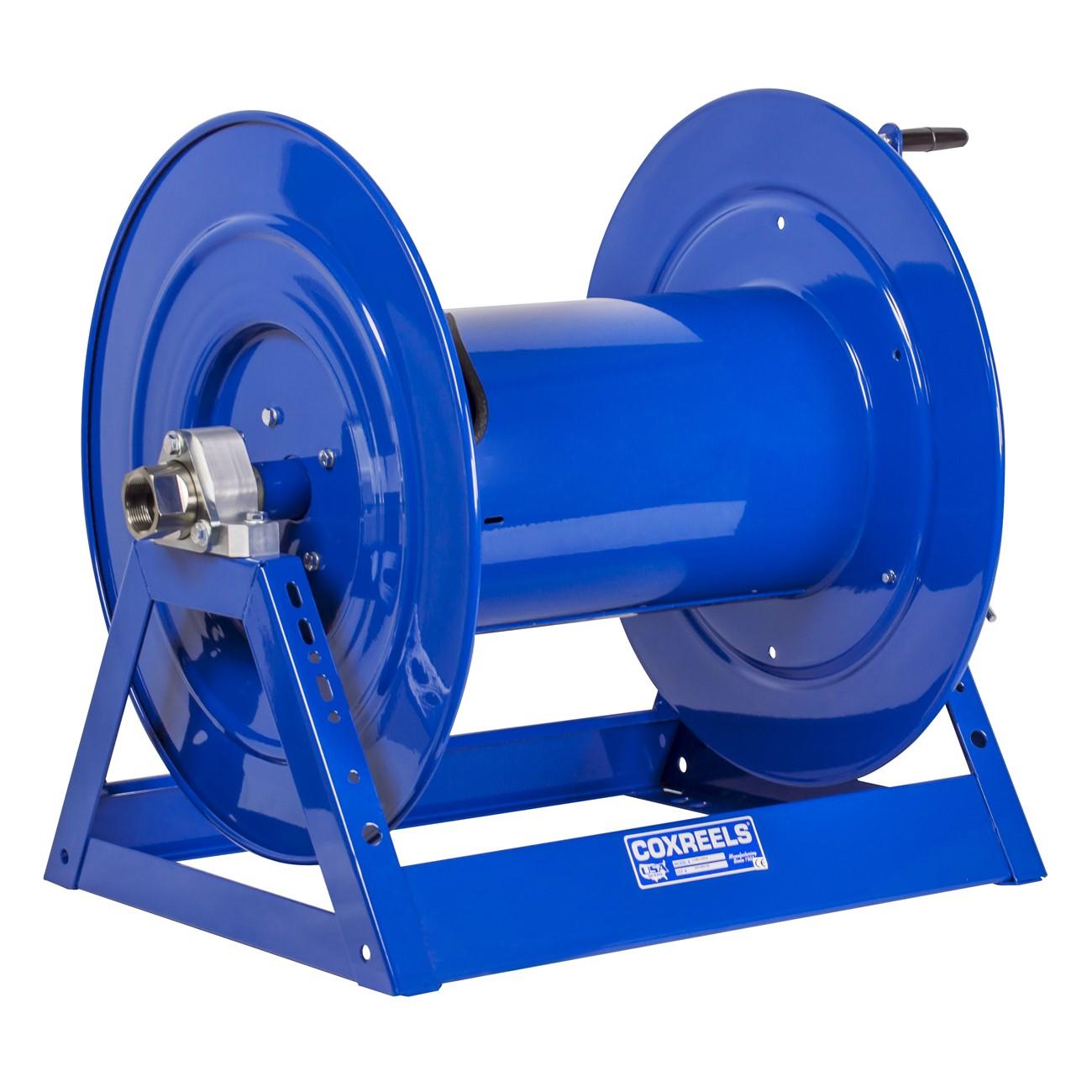

Coxreels 1185-2028-C Hose Reel 1.5 in Id 125 Ft

Product Description

The COXREELS 1185-2028-C is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Featuring a 1.5 inch ID and 2.0625 inch OD hose path with a 125 ft capacity, this reel handles significant hose weight without performance loss. The all-welded steel A-frame base and CNC robotically spun discs give it the structural integrity needed for demanding mobile and stationary service environments. Licensed plumbing and mechanical contractors, fleet service technicians, and industrial maintenance crews are the primary installers.

The 1185-2028-C suits applications where large-bore hose must be stored, deployed, and retracted efficiently. Its open drum slot design and low-profile outlet riser eliminate hose crimping and ensure a flat, smooth wrap across the full 125 ft length. The front bevel-geared hand crank provides mechanical advantage for manual retraction of heavy hose loads. This reel is well suited for mobile lube trucks, industrial wash-down stations, bulk fluid transfer setups, and heavy commercial service applications where hose volume and durability are the primary requirements.

Key Features

• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• One-piece all-welded 0.25 inch steel A-frame base for superior structural strength — no bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection, strength, and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth, consistent rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Front bevel-geared crank and long-handled locking pin for easy mechanical retraction and secure positioning

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for large-diameter, high-volume hose reel applications requiring hand crank or motor-driven operation.

Installation Notes

Installation is typically performed by licensed plumbing or mechanical contractors familiar with large-bore fluid transfer systems. Power down or shut off all fluid supply lines and depressurize the hose completely before mounting or servicing the reel. Secure the reel to a structurally rated surface using the mounting pattern in the steel base, following applicable load and fastener requirements. Do not exceed the rated hose capacity or operate with kinked or damaged hose.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Capacity: 125 ft
• Frame Material: 0.25 inch welded steel
• Length: 32 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 112 pounds
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-C
