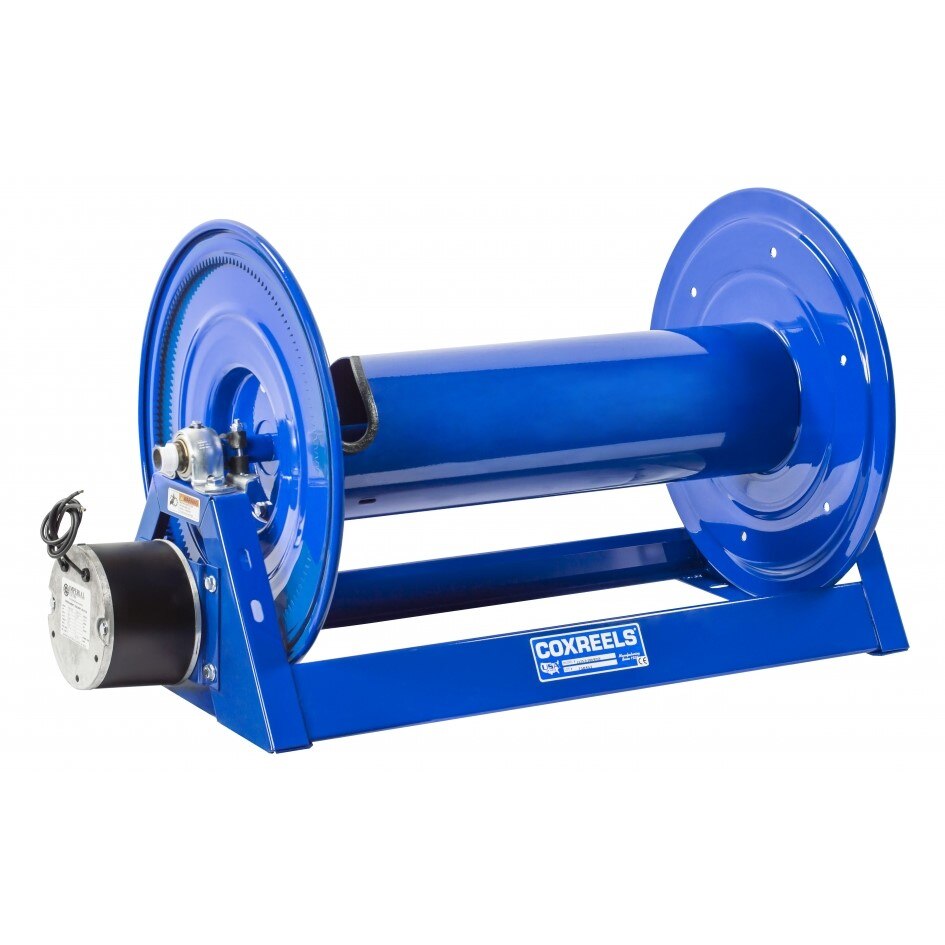

Coxreels 1185-2028-BYXX Storage Hose Reel Hand Crank

Product Description

The COXREELS 1185-2028-BYXX is a heavy-duty storage hose reel built for industrial and trade applications where long runs of hose, cord, cable, wire, rope, or chain need to be stored and managed efficiently. The reel is constructed with CNC robotically spun and ribbed steel discs featuring rolled edges for added structural strength and operator safety. A one-piece all-welded steel A-frame base provides a rigid, reliable platform without bolted connections. At 109 pounds, this is a substantial unit suited for permanent stationary mounting or mobile equipment installations. A direct hand crank allows for straightforward mechanical retraction without power requirements.

This storage reel is designed for demanding professional environments including construction, industrial facilities, agriculture, utilities, and fleet maintenance. Because it is a storage-only reel with no swivel and no riser, it is optimized for handling long lengths of material rather than active fluid transfer. Typical applications include managing collapsible hose, electrical power cord, cable, rope, barbed wire, tape, and chain. The reel suits both stationary installations and mobile unit configurations where secure, organized storage of extended-length materials is required on a daily basis.

Key Features

• Storage-only design with no swivel and no riser, optimized for long-length hose, cord, cable, rope, wire, tape, and chain
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece all-CNC robotically welded 1/4-inch steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low-maintenance operation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style storage reel for stationary or mobile industrial and trade installations requiring management of long-length hose, cord, cable, or similar materials.

Installation Notes

Installation is typically performed by maintenance technicians or trade professionals familiar with industrial reel mounting. Power down or de-energize any connected systems before attaching cords or cables to the reel. The steel A-frame base includes a built-in mounting pattern for bolting to a floor, wall, or mobile platform. Consult applicable facility or vehicle mounting codes to ensure proper fastener selection and torque for the mounting surface.

Technical Specifications

• Weight: 109 pounds
• Length: 32 inches
• Width: 32 inches
• Height: 24 inches
• Frame Material: Steel
• Frame Construction: One-piece all-welded 1/4-inch steel A-frame
• Retraction Method: Hand crank
• Bearing Type: Permanently lubricated self-aligning pillow block bearings
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255851023

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-BYXX
