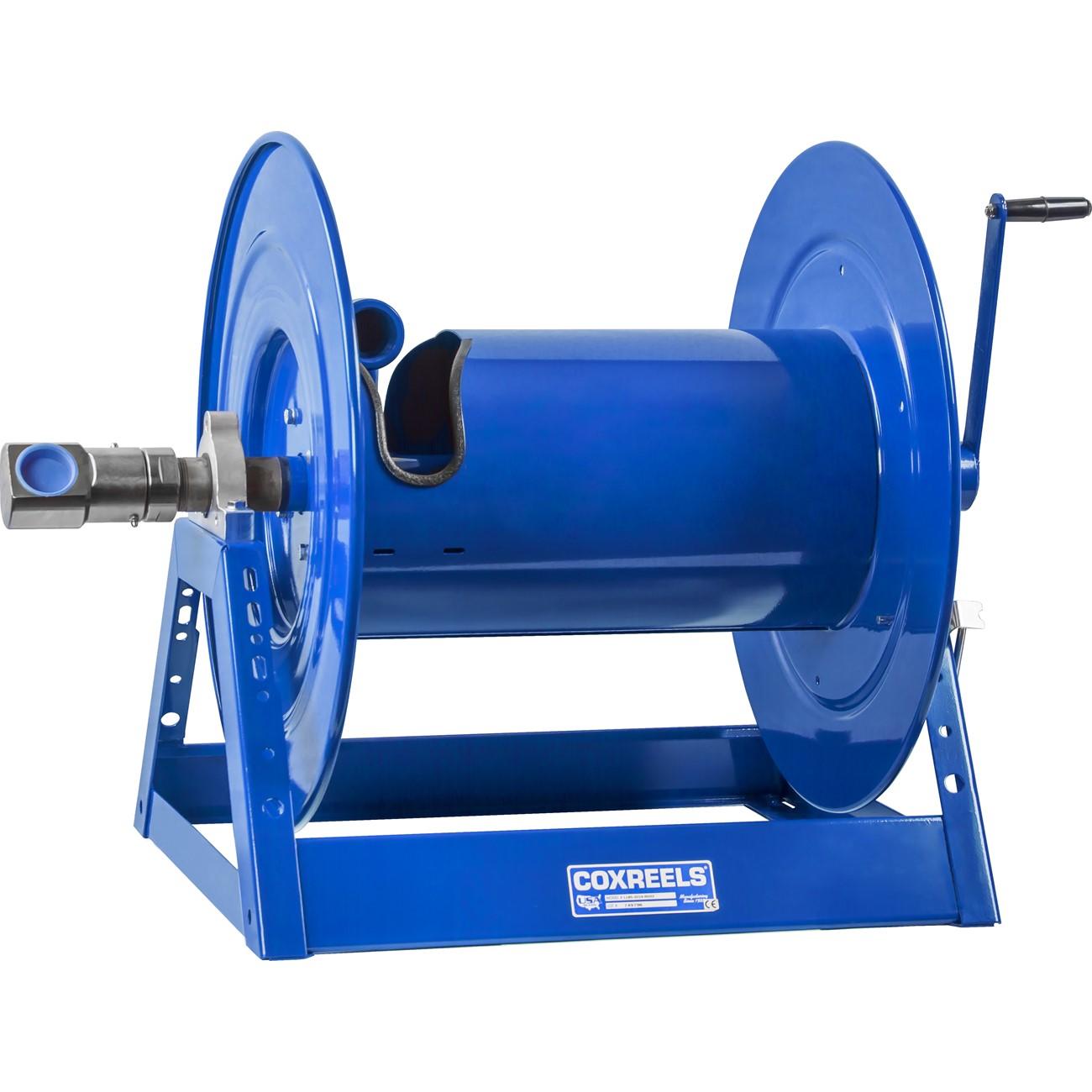

Coxreels 1185-2028-BUXX Hose Reel 1-1/2 Inch Id Hand Crank

Product Description

The COXREELS 1185-2028-BUXX is a heavy-duty industrial hose reel from the 1185 Series, engineered for long-length, large-diameter hose applications requiring high-volume fluid delivery. The reel features a direct hand crank for mechanical retraction and is available in motor-driven configurations. Built on an all-welded 12-gauge steel A-frame base, it accepts 1-1/2 inch ID hose and ships at 109 pounds. The open drum design and exclusive low-profile outlet riser promote a non-crimping, flat smooth hose wrap, protecting hose integrity across demanding work cycles. Licensed HVAC techs, plumbers, and industrial service professionals working with large-bore hose runs are the primary installers.

The 1185-2028-BUXX suits commercial and industrial service environments where extended hose lengths and high flow volumes are required. Its open drum slot and low-profile outlet riser design make it particularly well suited for mobile applications where equipment endures vibration, load shifts, and repeated deployment cycles. The mounting pattern is integrated into the steel base, simplifying installation and detachment on service vehicles, job-site trailers, or fixed wall and floor mounts. Where large-diameter hose needs to be managed reliably in the field, this reel is a direct working solution.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Long-handled locking pin secures reel position; direct hand crank enables mechanical retraction

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for use with 1-1/2 inch ID large-diameter hose in hand crank and motor-driven configurations.

Installation Notes

Installation of large industrial hose reels should be performed by qualified mechanical or plumbing tradespeople familiar with high-volume fluid systems. Before servicing or mounting, depressurize and drain the connected hose and shut off the fluid supply at the source. Verify that the mounting surface can support the rated loaded weight of the reel and hose assembly. Consult applicable local codes and manufacturer documentation before final installation on mobile or elevated platforms.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Weight: 109 pounds
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• UPC: 674255857483

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-BUXX
