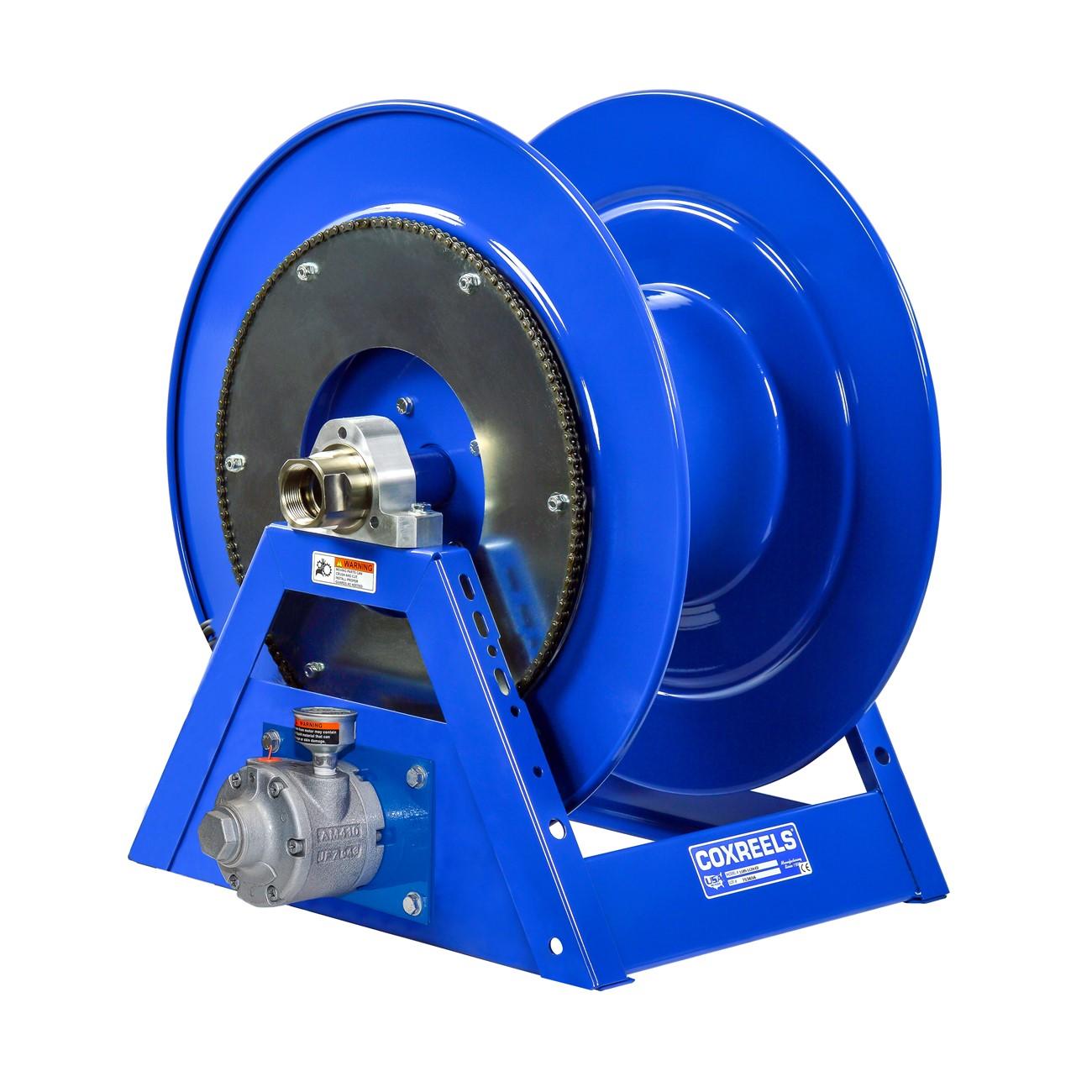

Coxreels 1185-2028-AB Hose Reel 1.5 in Id 125 Ft

Product Description

The COXREELS 1185-2028-AB is a heavy-duty hose reel from the 1185 Series, built for hand crank or motor-driven operation in high-volume hose delivery applications. It accepts hose with a 1.5-inch inner diameter and a 2.0625-inch outer diameter, with a working length of 125 feet. The reel features a low-profile outlet riser and an open drum slot design that keeps hose flat and prevents crimping during wrap. Weighing 117 pounds and measuring 44 inches long by 28 inches wide by 34 inches tall, this is a substantial unit intended for demanding industrial, mobile, and stationary installations handled by trade professionals or fleet maintenance crews.

The 1185-2028-AB is designed for applications requiring long runs of large-diameter hose with high flow volume, such as industrial fluid transfer, mobile service trucks, and heavy equipment maintenance. The all-welded steel A-frame base and CNC robotically spun discs give it the structural integrity to manage the added weight of large hose lengths without performance degradation, even under mobile or vibration-prone conditions. The motor-driven option suits automated dispensing setups where manual cranking is impractical.

Key Features

• Low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• One-piece CNC robotically welded 0.25-inch steel A-frame base — welded construction, not bolted — for superior structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in harsh environments

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for large-diameter hose applications requiring 1.5-inch ID hose in hand crank or motor-driven reel configurations.

Installation Notes

Installation is typically performed by industrial mechanics or fleet service technicians. Power down or depressurize the system completely before connecting or disconnecting hose at the swivel. The mounting pattern is located in the steel base for straightforward reel installation and detachment from its mount. Ensure the mounting surface can support the reel weight plus the weight of a fully loaded 125-foot hose run before securing.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length: 125 feet
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated horizontal surface mount
• Swivel: Electroless nickel plated steel full-flow NPT in-line swivel
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 117 pounds
• UPC: 674255833852

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-AB
