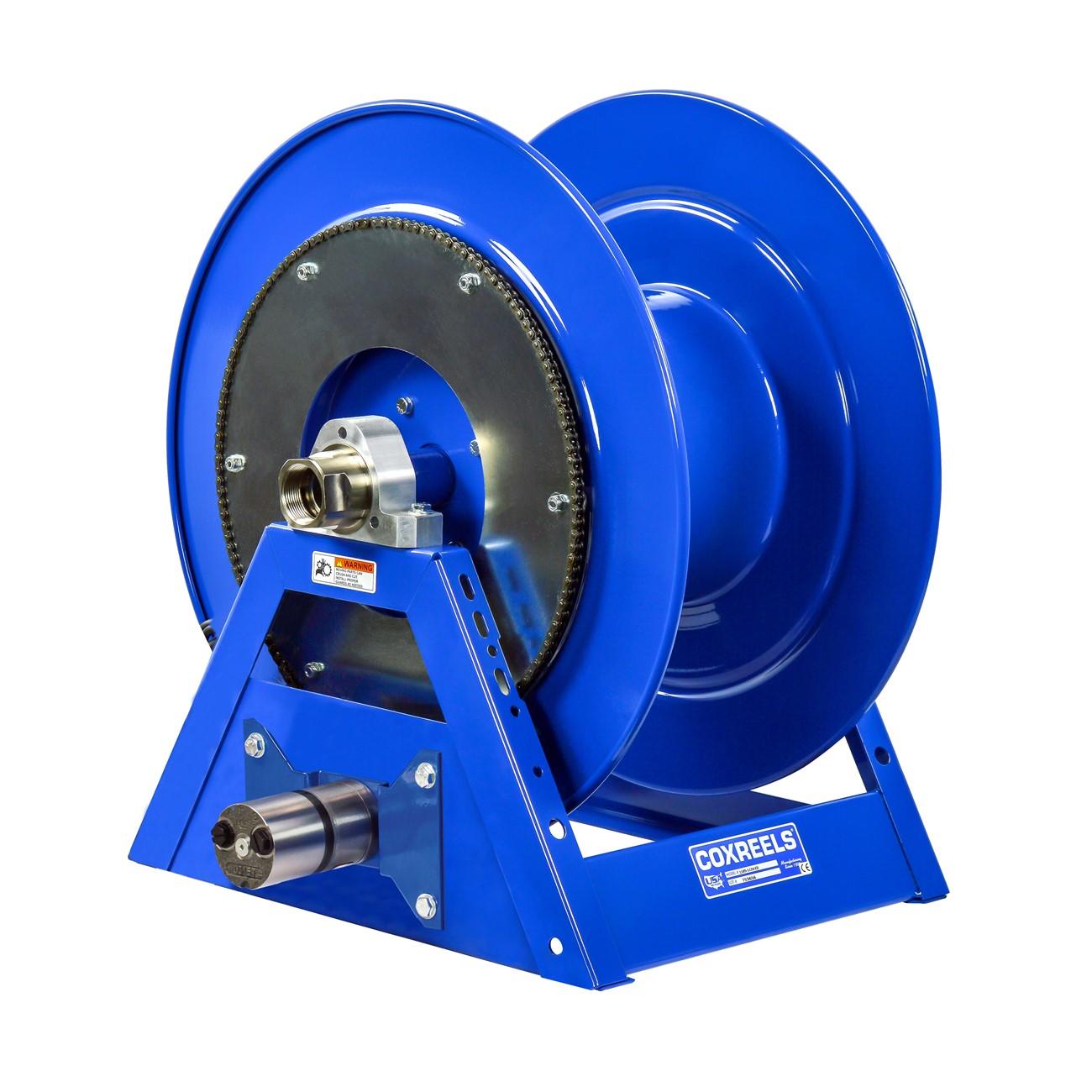

Coxreels 1185-2024-H Hose Reel 1.5 in Id 100 Ft

Product Description

The COXREELS 1185-2024-H is a heavy-duty hose reel from the 1185 Series, engineered for large-diameter, high-volume hose management in demanding trade applications. It accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, handling up to 100 feet of hose length. The reel ships at 107 pounds and measures 37.5 inches long by 32 inches wide by 34 inches tall. It features both hand crank and hydraulic motor drive options, making it suitable for fixed and mobile service setups where full-flow delivery and reliable hose retrieval are required. Licensed contractors and fleet service technicians are the typical installers.

The 1185-2024-H is built for applications requiring long hose runs and large flow volumes, such as industrial fluid transfer, mobile lube and oil service trucks, and heavy equipment maintenance operations. The open drum design and exclusive low-profile outlet riser prevent hose crimping and promote a flat, smooth wrap even under repeated use. Its all-welded steel A-frame base and CNC-spun ribbed discs make it well suited for both permanent mount installations and demanding mobile environments where vibration and load stress are ongoing concerns.

Key Features

• Hand crank and hydraulic motor drive for flexible operation in fixed or mobile setups
• Low-profile outlet riser with open drum slot design prevents hose crimping and ensures flat, smooth hose wrap
• One-piece all-CNC robotically welded 0.25-inch steel A-frame base for superior structural strength without bolted joints
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed as a direct-fit replacement or new installation hose reel for systems requiring 1.5-inch ID hose connections with NPT swivel fittings in industrial, mobile, and heavy-duty service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and hydraulic drive components. Shut down and depressurize any connected fluid or hydraulic lines before mounting or servicing the reel. The mounting pattern is located in the steel base for straightforward installation and removal. Consult applicable local codes and the equipment manufacturer guidelines before connecting hydraulic motor drive lines.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 100 feet
• Drive Type: Hand crank and hydraulic motor
• Frame Material: 0.25-inch welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 107 pounds
• UPC: 674255847637

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-H
