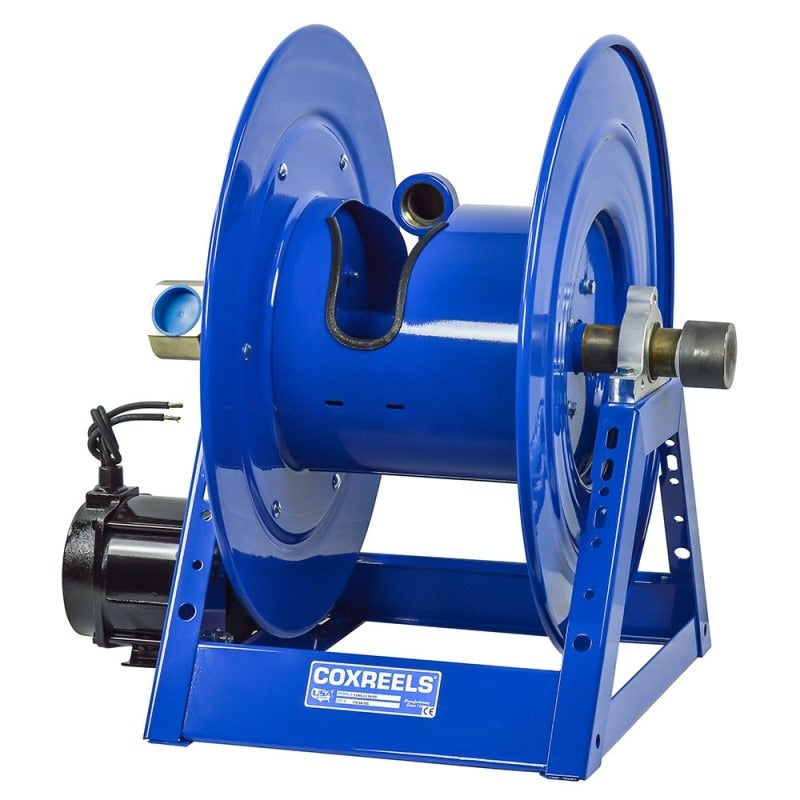

Coxreels 1185-2024-H-BUXX Hose Reel 1-1/2 in Id

Product Description

The COXREELS 1185-2024-H-BUXX is a heavy-duty industrial hose reel from the 1185 Series, designed for high-volume fluid delivery through long lengths of large-diameter hose. Built with a hydraulic motor drive and an all-welded CNC steel A-frame base, this reel handles demanding workloads without sacrificing structural integrity. The exclusive low-profile outlet riser and open drum slot design produce a non-crimping, flat hose wrap that protects hose integrity over repeated use cycles. At 100 pounds, it is engineered for durability in both stationary and mobile applications where weight capacity and reliable flow are critical.

This hose reel is suited for industrial, commercial, and mobile service applications requiring delivery of large volumes through hose with a 1-1/2 inch inner diameter and a 2-1/16 inch outer diameter. Typical use cases include fluid transfer, wash-down systems, and heavy-duty service operations where a motorized or hand-crank reel with a robust frame is required. The hydraulic motor drive makes it appropriate for mobile units or fixed installations with hydraulic power available on site.

Key Features

• Electroless nickel plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and maintains flat, smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base provides superior structural integrity over bolted alternatives
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chipping and rust for long service life in harsh environments
• Hydraulic motor drive for powered retraction in demanding or high-frequency service applications

Compatibility

Designed for use with hose measuring 1-1/2 inches inner diameter and 2-1/16 inches outer diameter; part of the COXREELS 1185 Series platform supporting hand crank and hydraulic motor driven configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic or fluid transfer systems. Disconnect and depressurize all hydraulic lines before mounting or servicing the reel. The steel base mounting pattern is designed for straightforward installation and detachment from a fixed or mobile surface. Follow applicable site safety codes and equipment manufacturer guidelines when integrating with hydraulic power systems.

Technical Specifications

• Hose Inner Diameter: 1-1/2 inches
• Hose Outer Diameter: 2-1/16 inches
• Drive Type: Hydraulic motor
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 100 pounds
• UPC: 674255855359

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-H-BUXX
