Coxreels 1185-2024-EF Hose Reel 1.5 in Id 100 Ft Motor Driven

Product Description

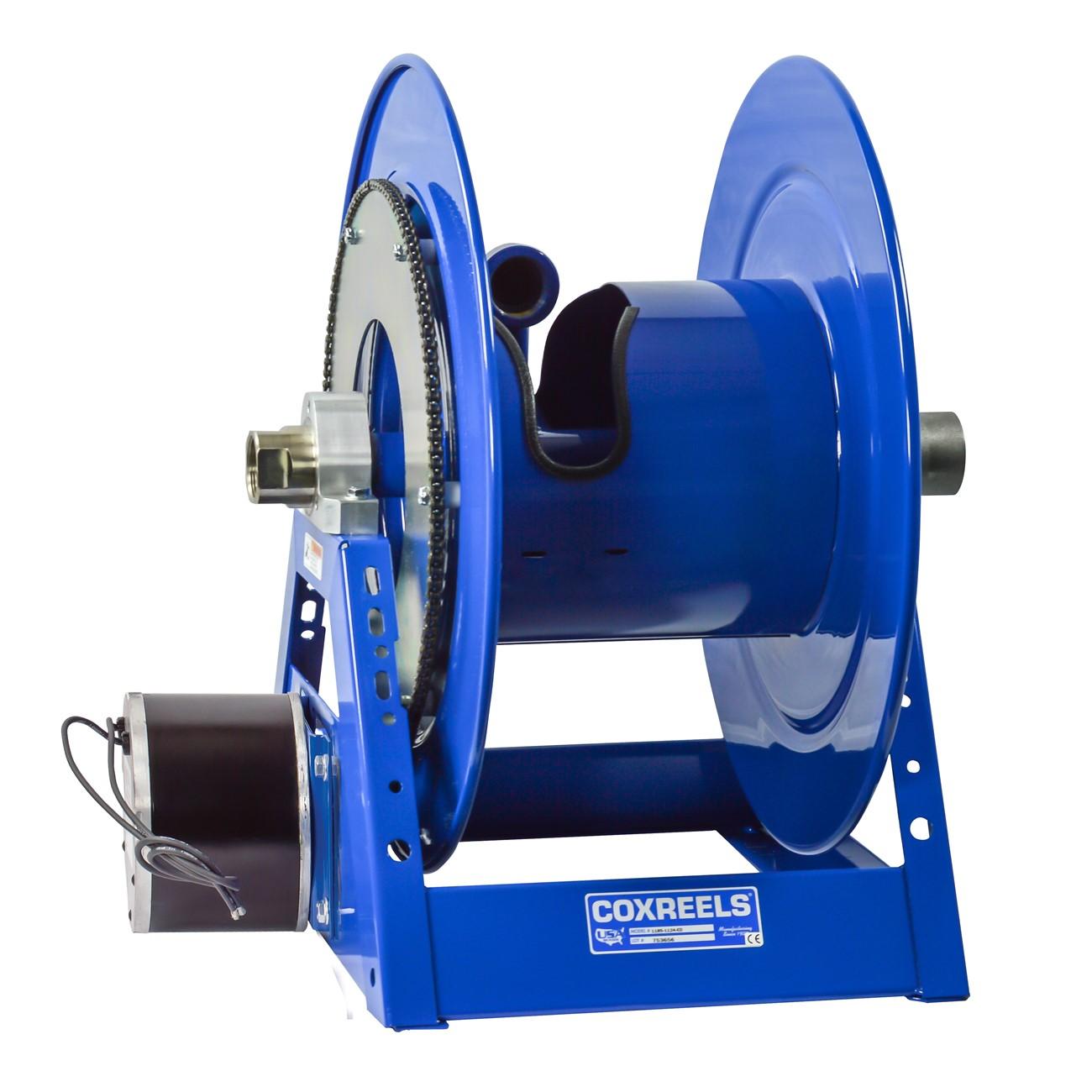

The COXREELS 1185-2024-EF is a heavy-duty, motor-driven hose reel from the 1185 Series, built for high-volume fluid delivery applications requiring long runs of large-diameter hose. It features a 1.5-inch inner diameter and 2.0625-inch outer diameter hose path with a 100-foot hose capacity. Power comes from a 24-volt DC, 0.33 HP reversible motor that drives both pay-out and retrieval. The all-welded A-frame base is constructed from 0.25-inch steel and provides the structural integrity needed to support the combined weight of the reel and a fully loaded large-diameter hose. Licensed HVAC technicians, industrial service contractors, and mobile service operators are the primary installers and users of this reel.

The 1185-2024-EF is suited for commercial and industrial applications where large-diameter hose must be deployed and retracted repeatedly, including mobile service trucks, wash-down stations, and high-flow fluid transfer setups. The open drum design and low-profile outlet riser keep hose lay flat and non-crimping across the full drum width, preserving hose life and maintaining consistent flow rates. The reel ships as a single unit and mounts via a bolt pattern integrated into the steel base.

Key Features

• 24-volt DC, 0.33 HP reversible motor for powered hose pay-out and retrieval
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes a flat, smooth wrap
• One-piece, fully CNC robotically welded 0.25-inch steel A-frame base — no bolted joints — for superior structural strength
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection, strength, and operator safety
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in demanding environments

Compatibility

Designed as an OEM-style large-diameter hose reel for commercial and industrial fluid delivery systems requiring 1.5-inch ID hose with up to 100 feet of capacity.

Installation Notes

Installation is typically performed by industrial mechanics or qualified service technicians. Disconnect and lock out all electrical power and relieve system pressure before mounting or servicing the reel. The base mounting pattern accepts standard fasteners — refer to the reel documentation for bolt hole layout before drilling or welding to a vehicle or platform. Electrical connections to the 24-volt DC motor must comply with applicable local electrical codes and the vehicle or facility wiring standards.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 100 feet
• Motor Voltage: 24 volts DC
• Motor Output: 0.33 HP reversible
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 107 pounds
• Sold As: Each
• UPC: 674255855816

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-EF
