Coxreels 1185-2024-E Hose Reel 1.5 in Id 100 Ft Motor Driven

Product Description

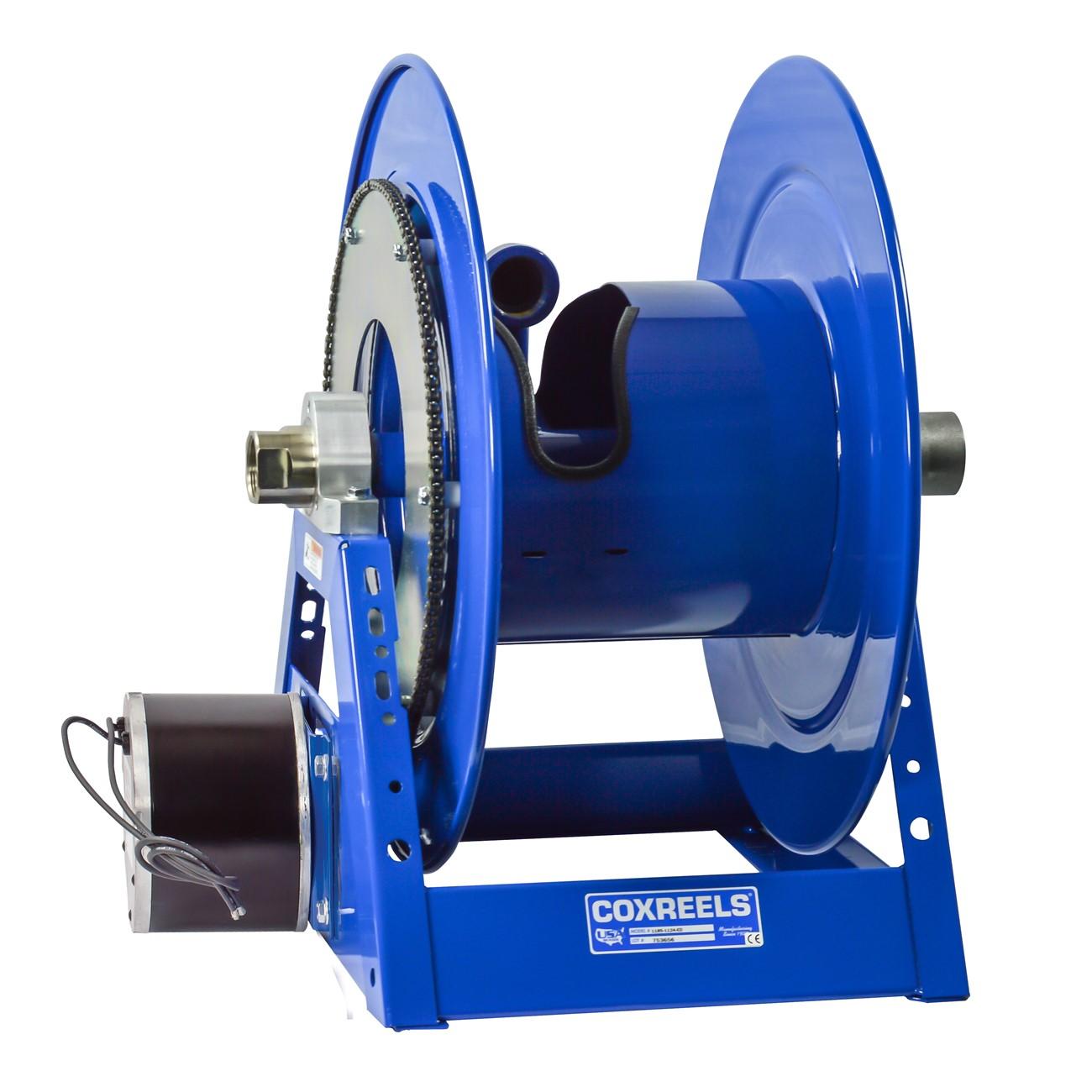

The COXREELS 1185-2024-E is a heavy-duty hose reel from the 1185 Series, built for high-volume fluid delivery applications that require long lengths of large-diameter hose. It accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, with a 100-foot length capacity. The reel is available with a 12-volt DC, 1/3 HP reversible electric motor for powered retrieval. The all-welded steel A-frame base and CNC robotically spun discs provide structural rigidity suited to demanding fixed and mobile installations. Licensed HVAC technicians, industrial mechanics, and fleet service professionals are the typical installers for this class of reel.

The 1185-2024-E is designed for applications that require high flow rates and extended hose runs, such as bulk fluid transfer, industrial wash-down, or large-format irrigation service. The open drum slot and low-profile outlet riser allow the hose to lay flat and smooth during winding, reducing crimp risk on large-diameter hose. The welded steel base includes a pre-drilled mounting pattern for straightforward installation on service trucks, shop floors, or fixed equipment stations.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval and deployment
• Low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• CNC robotically spun and ribbed discs with rolled edges for strength and operator safety
• One-piece all-welded 0.25-inch steel A-frame base — not bolted — for superior structural integrity
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated horizontal surface-mount bearings for smooth rotation

Compatibility

Designed as an OEM-specification reel for large-diameter hose applications requiring a 1.5-inch ID hose connection and 100-foot capacity in the COXREELS 1185 Series.

Installation Notes

Installation should be performed by qualified service technicians familiar with fluid transfer equipment and low-voltage DC electrical systems. Disconnect all power sources before wiring the 12V DC motor drive. Secure the reel using the pre-drilled mounting pattern in the steel base, ensuring the mounting surface can support a minimum of 112 pounds plus the weight of filled hose. Verify all NPT swivel connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 100 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 112 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-E
