Coxreels 1185-2024-C Hose Reel 1-1/2 in Id 100 Ft

Product Description

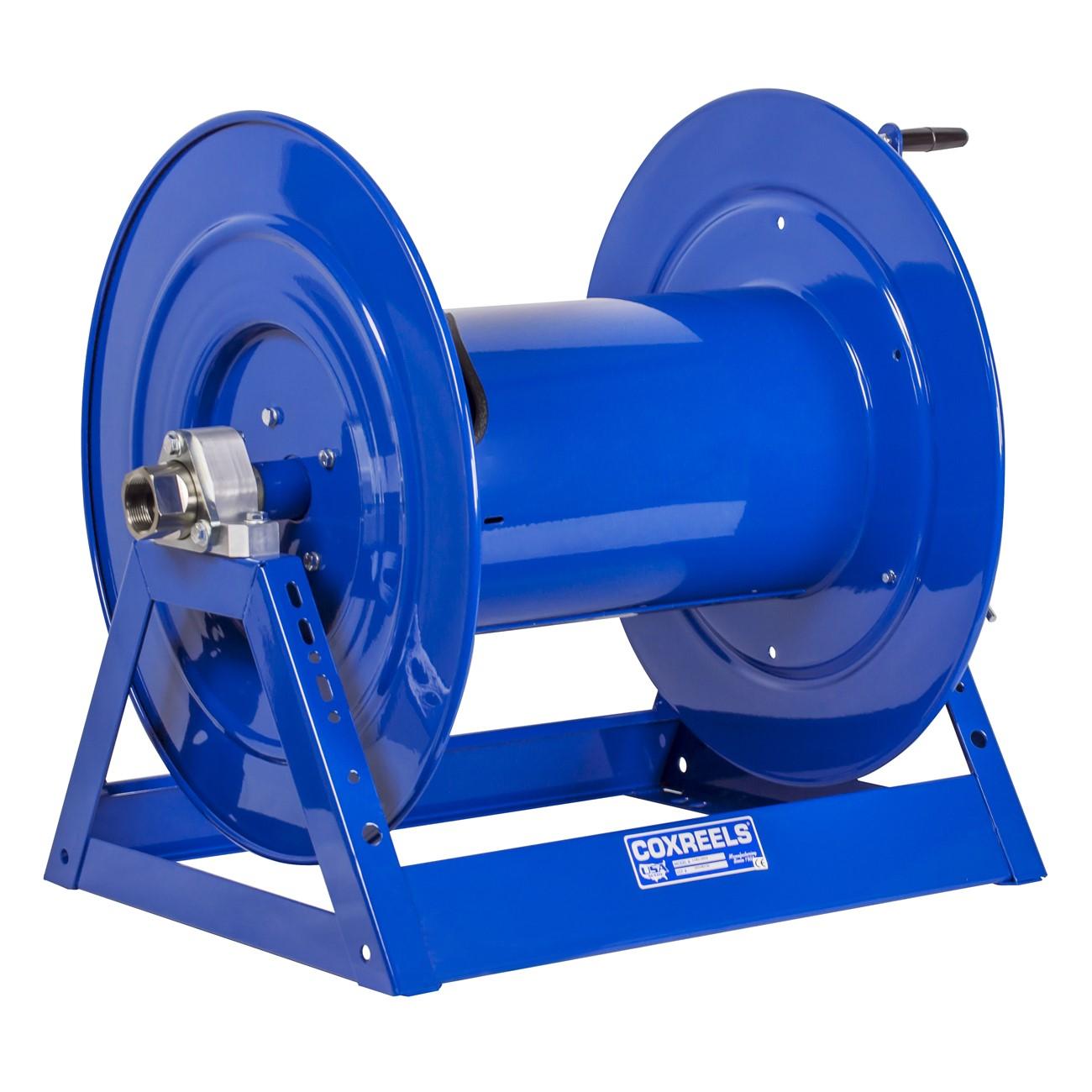

The COXREELS 1185-2024-C is a heavy-duty hand crank and motor-driven hose reel built for long-length, large-diameter hose applications requiring high-volume fluid delivery. It features a 1-1/2 inch inner diameter hose path and accommodates up to 100 feet of hose. The unit weighs 97 pounds and measures 29.5 inches long by 25 inches wide by 26.5 inches tall. An exclusive low-profile outlet riser and open drum slot design produce a non-crimping, flat hose wrap. A fully welded steel A-frame base provides the structural integrity needed to support large hose loads in demanding mobile and fixed installations. Licensed HVAC, plumbing, and industrial service technicians are the primary installers.

The 1185-2024-C is suited for industrial, commercial, and mobile service applications where large-diameter hose and extended hose lengths are required. Its open drum design and robust frame make it a practical choice for high-volume delivery tasks on service trucks, in mechanical rooms, and at fixed facility stations. The reel is sold as an individual unit and is appropriate wherever increased flow capacity and durable hose management are needed.

Key Features

• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes a flat, smooth hose wrap
• Fully CNC robotically welded 1/4 inch steel A-frame base — no bolted joints — for superior structural integrity
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanent lubricated horizontal surface mount bearings for smooth, easy rotation
• Front bevel geared crank for mechanical retraction; long-handled locking pin secures the reel at rest
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1185 Series, compatible with large-diameter hose assemblies having a 1-1/2 inch inner diameter and 2-1/16 inch outer diameter up to 100 feet in length.

Installation Notes

Installation is typically performed by qualified industrial, plumbing, or mechanical service technicians. Shut off all fluid supply and depressurize the hose and connected lines completely before mounting or servicing the reel. The steel base mounting pattern allows secure bolting to a flat surface; ensure the mounting substrate is rated for the combined weight of the reel and filled hose. Follow all applicable facility safety codes and equipment manufacturer guidelines during installation.

Technical Specifications

• Hose Inner Diameter: 1-1/2 inches
• Hose Outer Diameter: 2-1/16 inches
• Hose Length Capacity: 100 feet
• Unit Weight: 97 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Frame Material: 1/4 inch welded steel
• Swivel Material: Electroless nickel plated steel
• Finish: CPC powder coat
• Drive Type: Hand crank and motor driven
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-C
