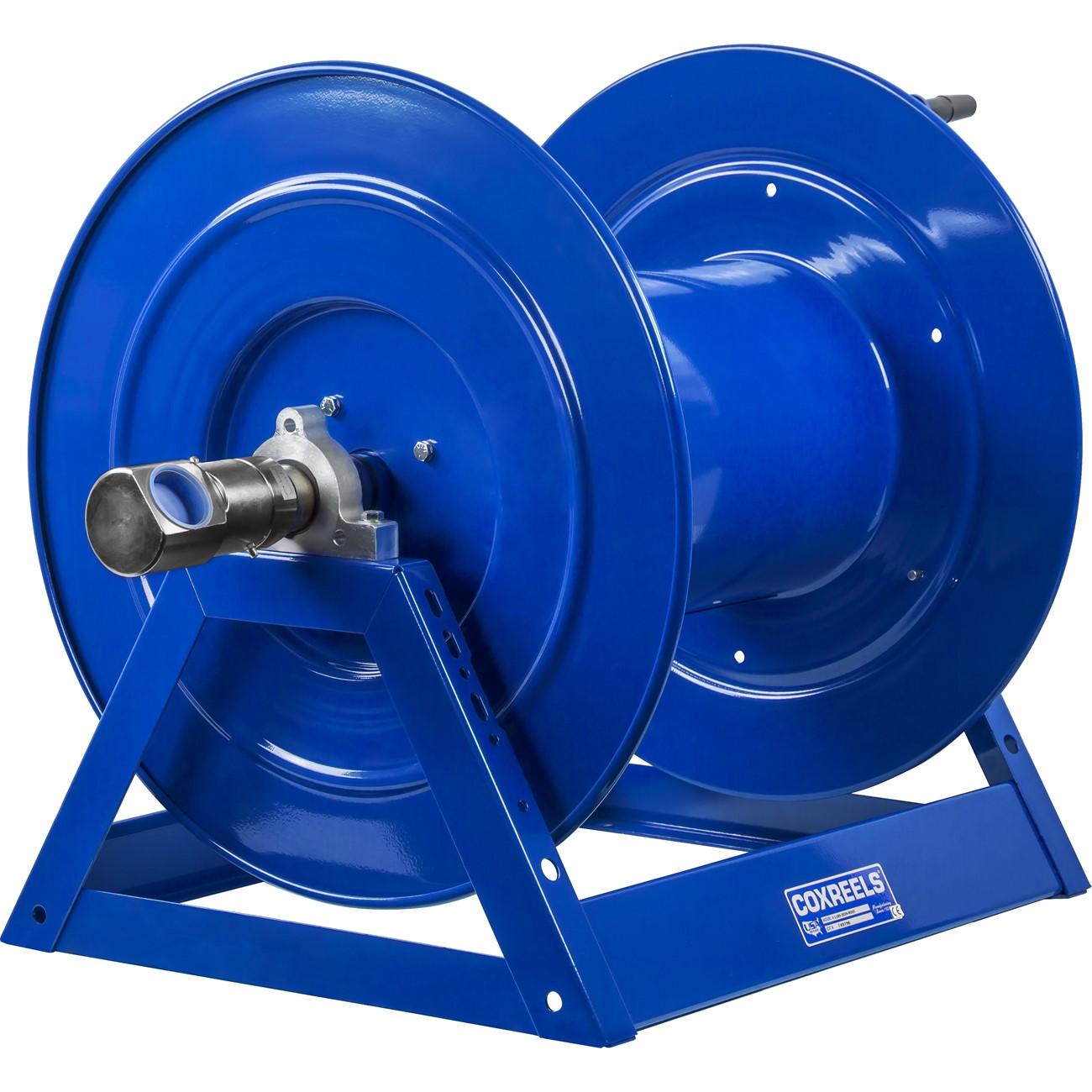

Coxreels 1185-2024-C-BUXX Hose Reel 1-1/2 Inch Id

Product Description

The COXREELS 1185-2024-C-BUXX is a heavy-duty hand crank hose reel engineered to manage long lengths of large-diameter hose in high-volume delivery applications. Part of the 1185 Series, it features an all-welded steel A-frame base and CNC robotically spun ribbed discs with rolled edges. The exclusive low-profile outlet riser and open drum slot design keep hose wraps flat and non-crimping, protecting hose integrity during repeated use. At 97 pounds, this reel is built for demanding fixed or mobile installations and is sized at 36 inches long by 30 inches wide by 30 inches tall. Licensed HVAC, plumbing, and industrial service professionals are the primary installers.

The 1185-2024-C-BUXX is suited for industrial, commercial, and mobile service applications requiring large-diameter hose management. The 1-1/2 inch ID and 2-1/16 inch OD hose path supports high-volume fluid or air delivery. Its robust construction makes it appropriate for use on service trucks, shop floors, and fixed utility stations where repeated hose deployment under load is expected. The front bevel-geared crank provides mechanical advantage for easy manual retraction of heavy, fully loaded hose lengths.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design ensures non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with mounting pattern in the base for straightforward installation and detachment
• Permanently lubricated horizontal surface-mount bearings for smooth rotation
• CPC powder coat finish resists chips and rust; long-handled locking pin secures reel position; front bevel-geared crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1185 Series for large-diameter hose reel applications requiring a 1-1/2 inch ID hose path.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with industrial hose reel mounting requirements. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern; verify fastener ratings are appropriate for the reel weight of 97 pounds plus loaded hose. Consult applicable local codes for fluid-handling equipment installations in commercial or mobile service environments.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Retraction Type: Hand crank with front bevel gear
• Frame Construction: 12-gauge all-welded steel A-frame
• Swivel: Electroless nickel-plated steel 90-degree full-flow NPT with ball bearings
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 97 pounds
• UPC: 674255855281

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-C-BUXX
