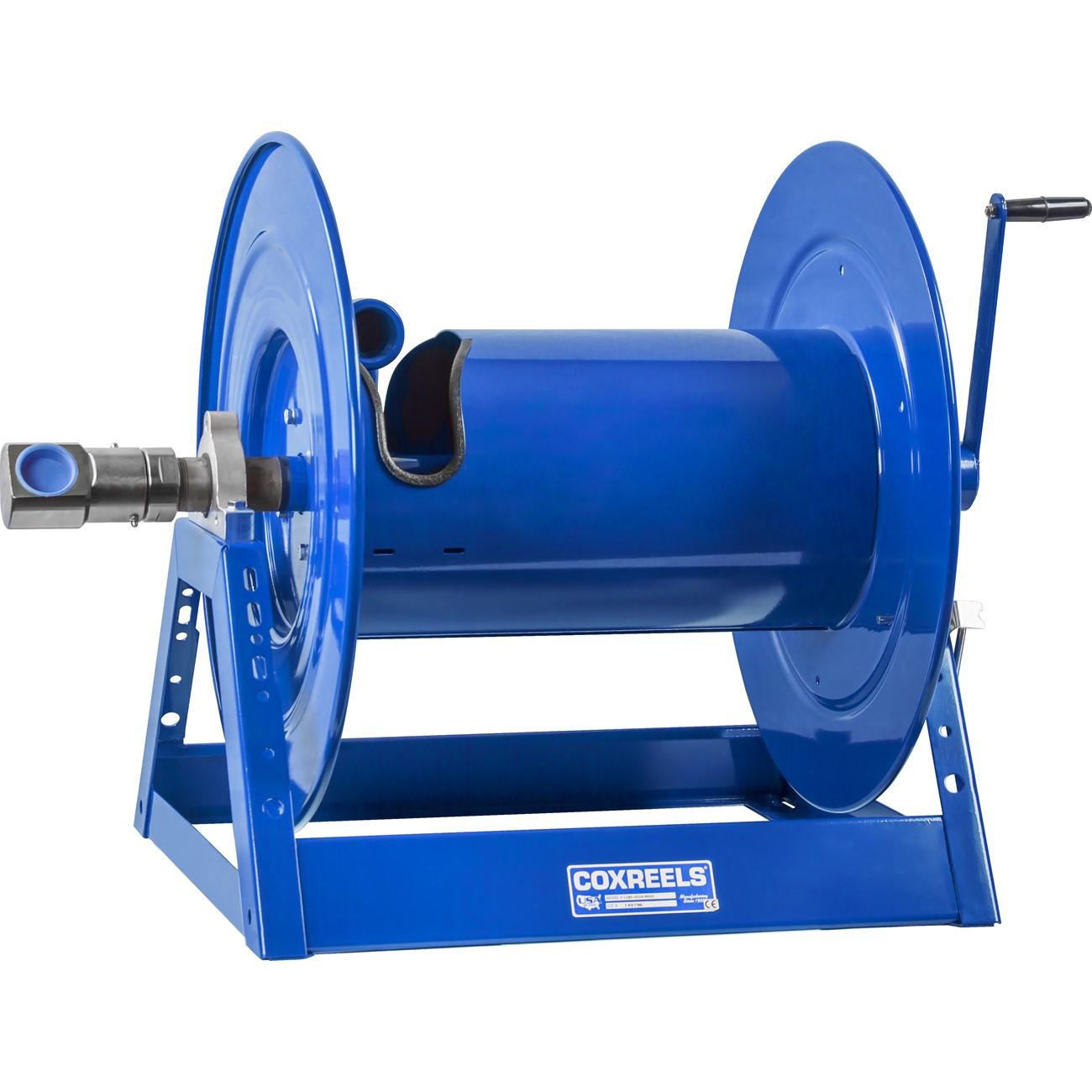

Coxreels 1185-2024-BUXX Hose Reel 1-1/2 Inch Id Hand Crank

Product Description

The COXREELS 1185-2024-BUXX is a heavy-duty hand crank hose reel built for high-volume fluid delivery applications requiring long lengths of large-diameter hose. Part of the COXREELS 1185 Series, this reel accepts hose with a 1-1/2 inch ID and 2-1/16 inch OD. It features an open drum design with a low-profile outlet riser that produces a non-crimping, flat hose wrap, reducing wear on large-bore hose during repeated use. The all-welded steel A-frame base and CNC robotically spun ribbed discs give the unit the structural strength to manage the added weight of large hose loads. Licensed HVAC, plumbing, and industrial service technicians typically install this reel in fixed or mobile service configurations.

The 1185-2024-BUXX is suited for demanding fixed-mount and mobile applications where large-diameter hose must be deployed and retracted repeatedly. The open drum slot and low-profile outlet riser work together to protect hose integrity during wrap. The unit weighs 94 pounds and measures 36 inches long by 30 inches wide by 30 inches tall, making it appropriate for service trucks, shop bays, and industrial facilities requiring consistent high-flow delivery. Direct hand crank retraction gives the operator mechanical control without requiring a power source.

Key Features

• Open drum and low-profile outlet riser provide non-crimping, flat hose wrap on large-bore hose
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12-gauge steel A-frame base — not bolted — for superior structural integrity
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life
• Long-handled locking pin secures reel position; direct hand crank enables mechanical retraction

Compatibility

Designed as an OEM-specification reel within the COXREELS 1185 Series for use with large-diameter hose having a 1-1/2 inch ID and 2-1/16 inch OD in hand crank or motor-driven configurations.

Installation Notes

Installation is typically performed by licensed plumbing, HVAC, or industrial service technicians. Power down or shut off the fluid supply completely before connecting or disconnecting hose at the swivel inlet. Secure the reel to a structurally adequate mounting surface using the base mounting pattern; verify fastener ratings are appropriate for the 94-pound unit weight plus hose and fluid load. Consult applicable local codes and manufacturer guidelines before mounting in mobile vehicle applications.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Frame Material: 12-gauge welded steel
• Swivel Finish: Electroless nickel-plated steel
• Retraction Type: Direct hand crank
• Length: 36 inches
• Width: 30 inches
• Height: 30 inches
• Weight: 94 pounds
• UPC: 674255853331

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-BUXX
