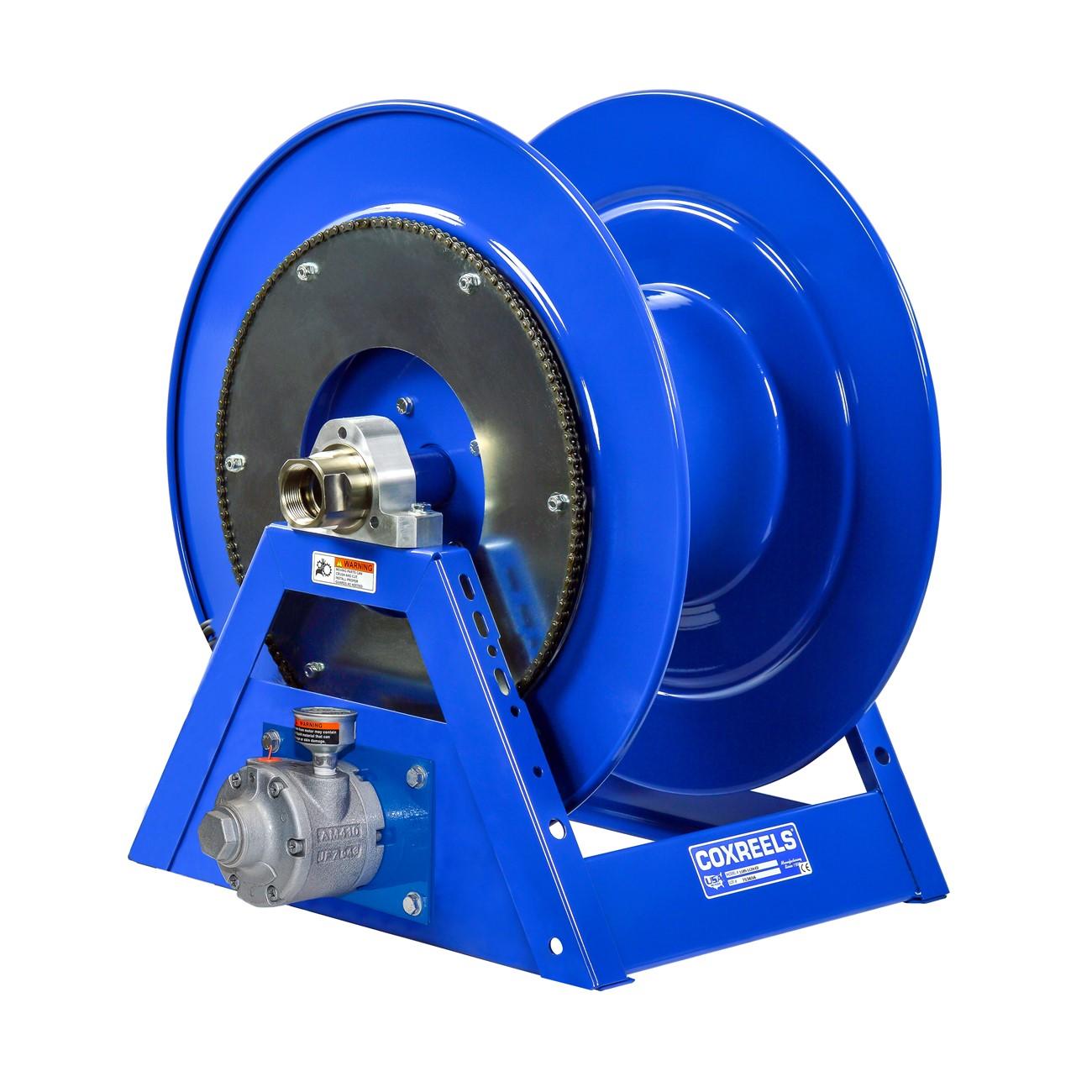

Coxreels 1185-2024-AB Hose Reel 1.5 in Id 100 Ft

Product Description

The COXREELS 1185-2024-AB is a heavy-duty hose reel from the 1185 Series, engineered for long-length, large-diameter hose applications where high-volume fluid delivery is required. The reel accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter and accommodates up to 100 feet of hose. An exclusive low-profile outlet riser and open drum slot design produce a non-crimping, flat, smooth hose wrap that protects hose integrity under repeated use. At 102 pounds, this unit is built for demanding fixed and mobile installations. It is installed by journeyman plumbers, industrial mechanics, and fluid-handling technicians in both stationary and mobile service environments.

The 1185-2024-AB is suited for industrial, commercial, and mobile applications that demand large-diameter hose management at high flow volumes. The all-welded A-frame base and motor-drive capability make it appropriate for lube service bays, water delivery trucks, fire suppression support systems, and similar high-demand environments where a conventional lightweight reel would be insufficient. The open drum design supports fast hose retrieval and storage without kinking or bunching on the drum.

Key Features

• Low-profile outlet riser and open drum slot provide a non-crimping, flat hose wrap for hose protection
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 0.25-inch steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated horizontal surface-mount bearings for consistent, low-effort rotation
• CPC powder coat finish rated for chip resistance and rust inhibition for long service life in harsh environments
• Compatible with aluminum-body air motor drive (6-vane) for powered retrieval

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and mobile large-diameter hose reel applications requiring 1.5-inch ID hose with NPT swivel connections.

Installation Notes

Installation is typically performed by qualified mechanics or plumbers familiar with large-volume fluid-handling systems. Shut off all fluid supply and depressurize the hose assembly before mounting or servicing the reel. The integrated base mounting pattern accepts standard fastener layouts for both fixed-surface and mobile-vehicle mounting. Verify that the mounting surface and fasteners are rated to support the combined weight of the reel and a fully loaded 100-foot hose run before commissioning.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 100 feet
• Frame Material: 0.25-inch welded steel
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 102 pounds
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255833777

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-AB
