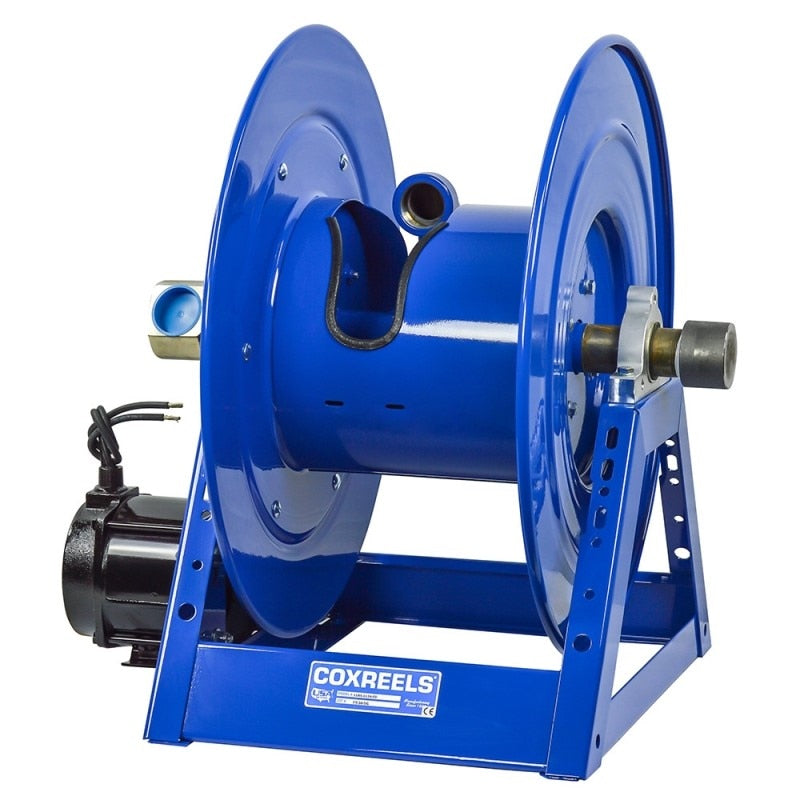

Coxreels 1185-2024-AB-BUXX Hose Reel 1-1/2 Inch Id

Product Description

The COXREELS 1185-2024-AB-BUXX is a large-diameter industrial hose reel from the 1185 Series, engineered for high-volume fluid delivery applications that demand long hose runs and heavy-duty performance. The reel features a 1-1/2 inch ID hose inlet and a 2-1/16 inch OD, and is available in both hand crank and motor-driven configurations. The all-welded A-frame base and CNC robotically spun discs are built to handle the added weight of large-bore hose without flexing or shifting. Licensed HVAC techs, plumbers, and industrial service crews working with high-flow fluid or air systems rely on this reel for consistent, reliable performance in mobile and stationary setups.

The 1185-2024-AB-BUXX is suited for commercial and industrial environments where high-volume delivery through large-diameter hose is required. The open drum slot design and low-profile outlet riser allow the hose to lay flat and wrap without crimping, preserving hose integrity across repeated use cycles. The welded steel frame base includes a built-in mounting pattern that simplifies installation and removal in mobile applications such as service trucks, fleet vehicles, and fixed service bays. An aluminum body air motor with 6-vane design is included for motor-driven operation.

Key Features

• 1-1/2 inch ID hose inlet with 2-1/16 inch OD for large-diameter, high-volume delivery
• Electroless nickel plated steel 90-degree full-flow NPT swivel with ball bearings allows hose connection without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures flat, smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Chip-resistant, rust-inhibiting CPC powder coat finish for long-term durability in demanding environments
• Permanently lubricated horizontal surface mount bearings for smooth reel rotation

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for use with large-diameter hose assemblies in commercial and industrial fluid delivery applications.

Installation Notes

Installation should be performed by a qualified service technician familiar with hose reel mounting and high-flow fluid systems. Shut off all fluid supply lines and depressurize the system completely before connecting or disconnecting hose fittings. Secure the reel to a rigid, load-rated mounting surface using the integrated base mounting pattern. Verify all NPT swivel connections are thread-sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 102 pounds
• Frame Material: 12-gauge welded steel
• Swivel Finish: Electroless nickel plated steel
• Motor Type: Aluminum body, 6-vane air motor
• Finish: CPC powder coat
• Unit of Measure: Each
• UPC: 674255857889

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-AB-BUXX
