Coxreels 1185-2024-A Hose Reel 1.5 in Id 100 Ft

Product Description

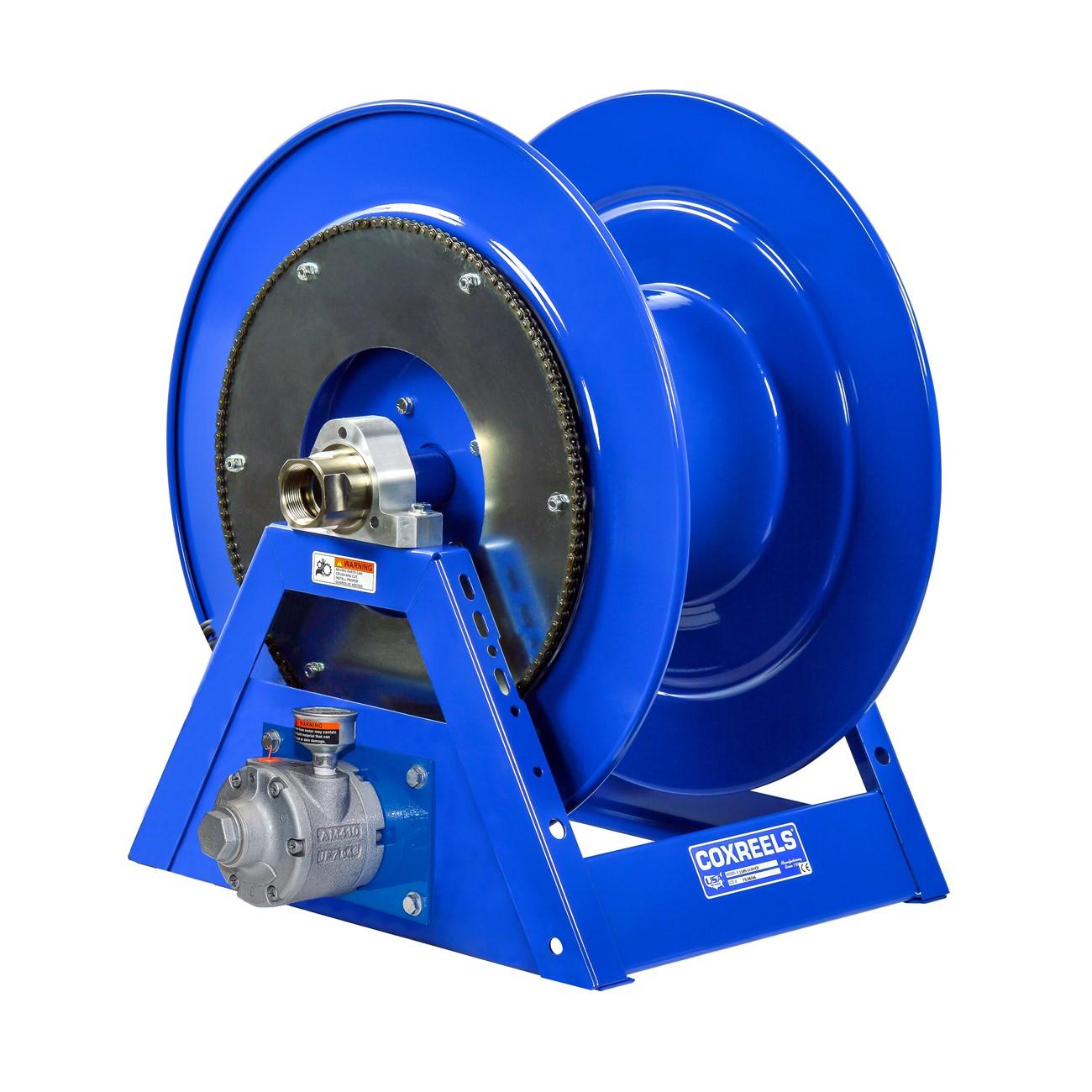

The COXREELS 1185-2024-A is a heavy-duty hand crank and motor driven hose reel from the 1185 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. With a 1.5-inch inner diameter and 100-foot hose capacity, this reel is suited for demanding industrial, mobile, and service applications. The all-welded A-frame base is constructed from 0.25-inch steel and provides the structural strength needed to support the reel's 107-pound weight and the added load of a fully loaded large-bore hose. Licensed trade technicians and fleet service professionals are the primary installers and operators of this equipment.

The 1185-2024-A is designed for use in applications requiring high-volume delivery over extended hose lengths, including industrial fluid transfer, mobile service rigs, and heavy-duty wash-down stations. The open drum and low-profile outlet riser design allows for a flat, non-crimping hose wrap, which is critical when working with large-diameter hose at full extension. The motor-driven option further supports applications where manual cranking of heavy hose loads is impractical.

Key Features

• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• One-piece all-welded 0.25-inch steel A-frame base for superior reel structure with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for smooth rotation under load
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in mobile and outdoor environments
• Aluminum body 4-vane air motor included for motor-driven operation

Compatibility

Designed as an OEM-style heavy-duty hose reel for use with large-diameter hose assemblies in industrial, mobile service, and high-volume fluid transfer applications requiring a 1.5-inch inner diameter connection.

Installation Notes

Installation and mounting should be performed by a qualified technician familiar with industrial hose reel systems and the specific fluid or media being conveyed. Shut off all fluid supply and depressurize the system completely before connecting or disconnecting hose or swivel fittings. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern prior to connecting any supply line. Confirm that all fittings and swivel connections are rated for the intended operating pressure before placing the reel in service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 100 feet
• Drive Type: Hand crank and motor driven
• Motor Type: Aluminum body 4-vane air motor
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• Weight: 107 pounds
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• UPC: 674255836426

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024-A
