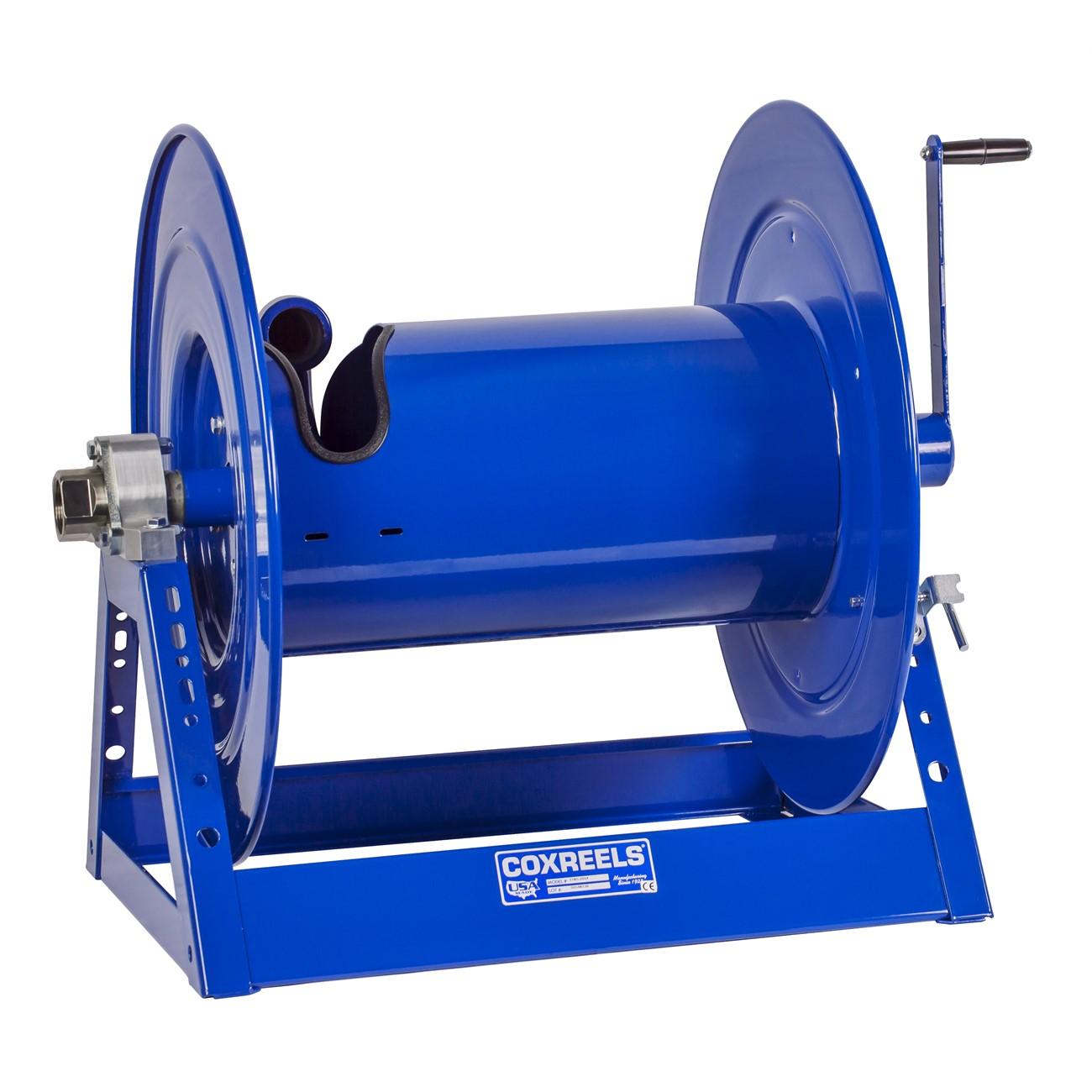

Coxreels 1185-2020 Hose Reel 1.5 in Id 70 Ft Hand Crank

Product Description

The COXREELS 1185-2020 is a heavy-duty hand crank hose reel from the 1185 Series, engineered for high-volume delivery applications requiring long runs of large-diameter hose. With a 1.5-inch inner diameter and 2.0625-inch outer diameter hose path, this reel handles the extra bulk and weight that smaller reels cannot. The all-welded steel A-frame base, CNC robotically spun ribbed discs, and exclusive low-profile outlet riser work together to prevent hose crimping and ensure a flat, smooth wrap. It is suited for professional fluid-handling operations in industrial, agricultural, and mobile service environments where reliable large-diameter hose management is critical.

The 1185-2020 is built for demanding applications where high flow volumes and long hose runs are standard. Its open drum design accommodates up to 70 feet of large-diameter hose, making it practical for mobile service trucks, wash-down stations, and bulk fluid transfer setups. The direct hand crank provides mechanical retraction, and the locking pin secures the drum position when the reel is not in use. Licensed tradespeople and field service technicians working with large-bore hose assemblies will find this reel appropriate for permanent or semi-permanent mount installations.

Key Features

• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes a flat, smooth wrap
• One-piece all-welded 0.25-inch steel A-frame base for superior structural integrity — not bolted
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chipping and rust for long-term service life in mobile or fixed applications
• Long-handled locking pin secures reel position; direct hand crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement or direct-fit reel for large-diameter hose assemblies with 1.5-inch inner diameter hose in high-volume fluid transfer applications.

Installation Notes

This reel should be installed by a qualified technician familiar with fluid-handling systems and applicable safety codes. Power down or shut off all fluid supply lines before mounting or servicing the reel. The mounting pattern is located in the steel base for secure attachment to a fixed surface or mobile platform. Verify that all hose connections and swivel fittings are properly seated and leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 70 feet
• Frame Material: 0.25-inch welded steel
• Swivel Finish: Electroless nickel-plated steel
• Weight: 70 pounds
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• UPC: 674255838918

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020
