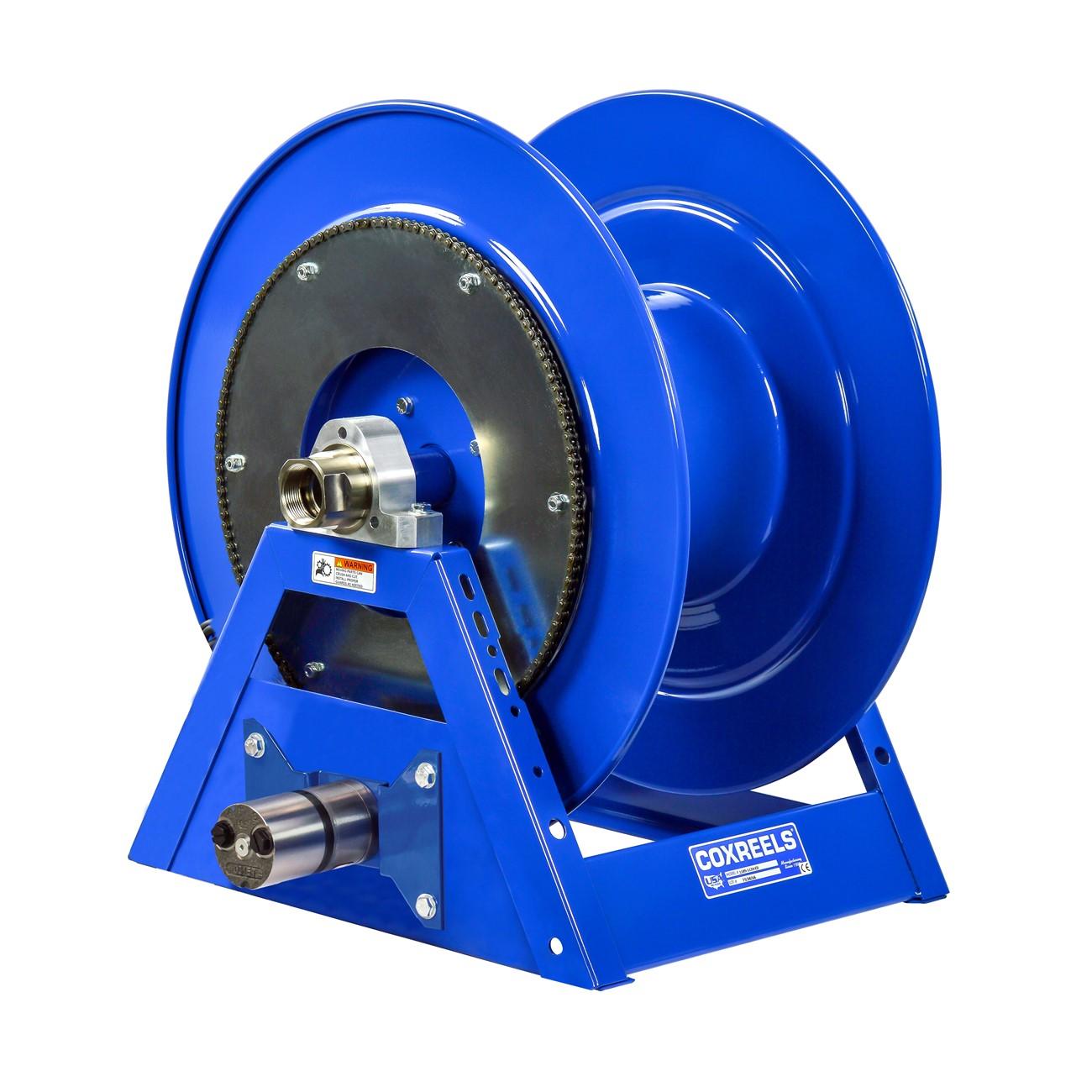

Coxreels 1185-2020-H Hose Reel 1.5 in Id 70 Ft

Product Description

The COXREELS 1185-2020-H is a heavy-duty hand crank and motor driven hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Designed around the 1185 Series platform, it features a 1.5-inch ID and 2.0625-inch OD hose path with a 70-foot capacity. The all-welded steel A-frame base and CNC robotically spun ribbed discs are engineered to support the added weight of large-bore hose without flex or fatigue. A hydraulic motor drive is included. This reel is installed by industrial maintenance crews, oil field service technicians, and mobile equipment operators who need reliable high-flow hose management in demanding field environments.

The 1185-2020-H is suited for stationary and mobile installations where large-diameter hose must be deployed and retrieved repeatedly without kinking or damage. The open drum slot design and low-profile outlet riser work together to produce a flat, non-crimping hose wrap across the full 70-foot length. The CPC powder coat finish resists chips and rust, making this reel appropriate for outdoor, mobile, and industrial plant environments where corrosion and mechanical abuse are ongoing concerns.

Key Features

• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges improve strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design produce a non-crimping, flat smooth hose wrap
• One-piece all-welded 0.25-inch steel A-frame base provides superior structural integrity over bolted designs
• Permanently lubricated horizontal surface mount bearings support smooth rotation under load
• Long-lasting CPC powder coat finish is chip-resistant and rust-inhibiting for extended service life in harsh conditions
• Hydraulic motor drive included for powered hose retrieval

Compatibility

Designed as an OEM-specification reel for large-diameter hose applications in the 1185 Series platform, accommodating 1.5-inch ID hose up to 70 feet in length in hand crank or hydraulic motor driven configurations.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mobile equipment service crews. Mount the reel to a flat, structurally sound surface using the mounting pattern located in the steel base. Depressurize and drain all fluid from the hose and connected system before servicing swivel seals or making hose connections. Verify that all NPT fittings are properly thread-sealed and torqued per the fitting manufacturer specifications before returning the system to service.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Capacity: 70 feet
• Drive Type: Hand crank and hydraulic motor
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel Material: Electroless nickel plated steel
• Bearing Type: Permanently lubricated horizontal surface mount
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 86 pounds
• UPC: 674255848276

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020-H
