Coxreels 1185-2020-E Hose Reel 1.5 in Id 70 Ft Motor Driven

Product Description

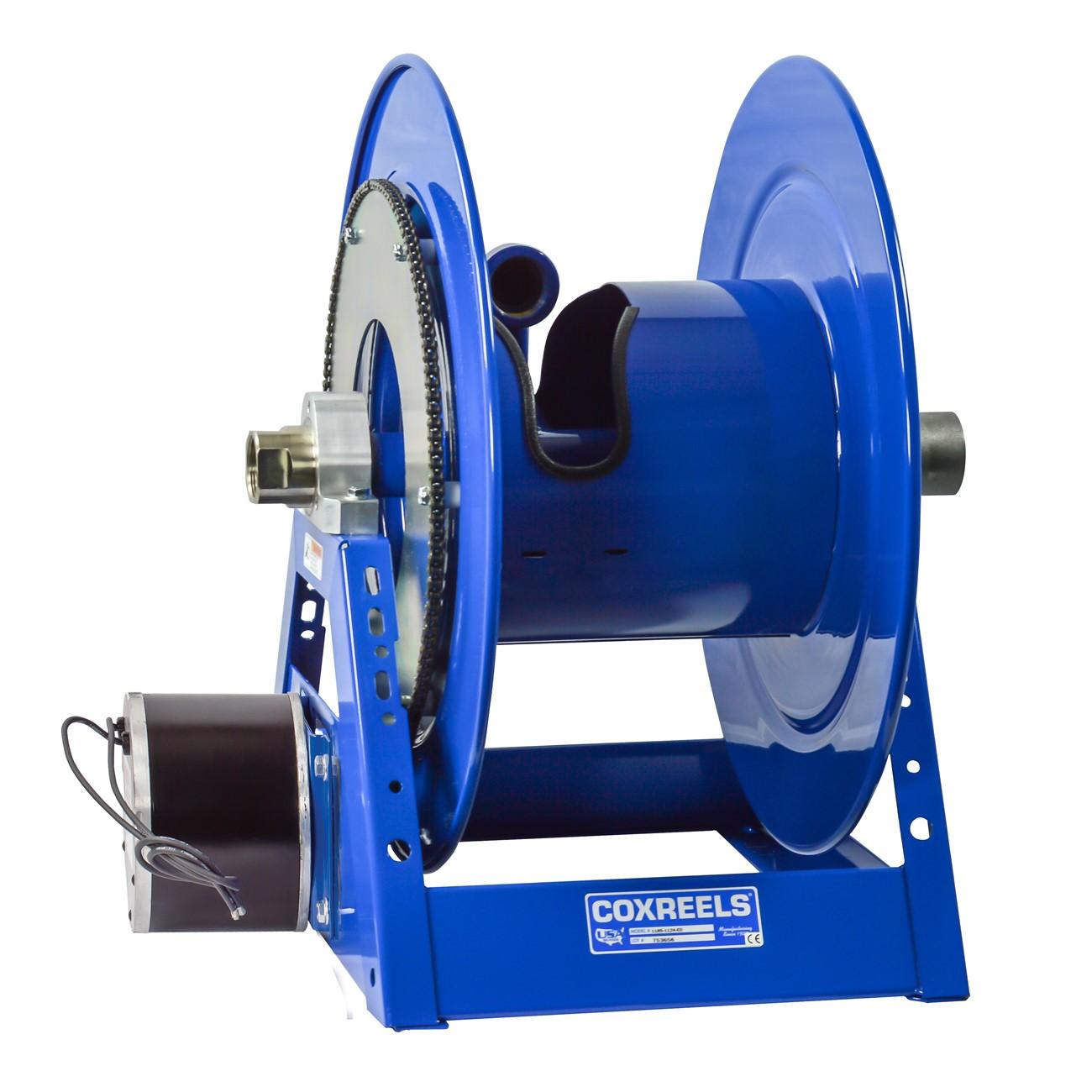

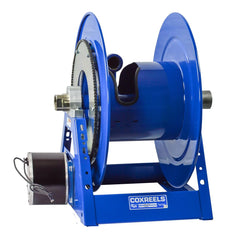

The COXREELS 1185-2020-E is a heavy-duty, motor-driven hose reel from the 1185 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. It features a 12V DC, 1/3 HP reversible motor and accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter up to 70 feet in length. The all-welded steel A-frame base provides rigid structure without bolted joints, making it suited for demanding mobile and stationary applications. Licensed HVAC, plumbing, and industrial service technicians who need a reliable large-hose management solution will find this reel built for repeated daily use.

The 1185-2020-E fits applications requiring extended hose runs and high flow volume, including mobile service trucks, industrial facilities, and commercial service bays. The open drum design and exclusive low-profile outlet riser allow hose to lay flat without crimping, preserving hose integrity over time. This reel is appropriate for residential and commercial service operations where both hand crank and motorized retrieval options are needed for large-diameter hose.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval and extension
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Exclusive low-profile outlet riser and open drum slot design for a non-crimping, flat smooth hose wrap
• One-piece all-welded 0.25-inch steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CPC powder coat finish is chip resistant and rust inhibiting for long service life
• Permanently lubricated horizontal surface mount bearings for smooth rotation

Compatibility

Designed as an OEM-style replacement or direct-fit reel for large-diameter hose service setups requiring a 1.5-inch ID, 70-foot capacity motorized reel in the COXREELS 1185 Series configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic hose management and low-voltage electrical connections. Disconnect and de-energize the 12V DC power source before wiring the motor drive. Secure the reel to a solid mounting surface using the integrated steel base mounting pattern, and verify all swivel fittings are wrench-tight and leak-free before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 70 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel: Electroless nickel plated steel full-flow NPT
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 83 pounds
• UPC: 674255838949

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020-E
