Coxreels 1185-2020-C Hose Reel 1.5 Inch Id 70 Ft

Product Description

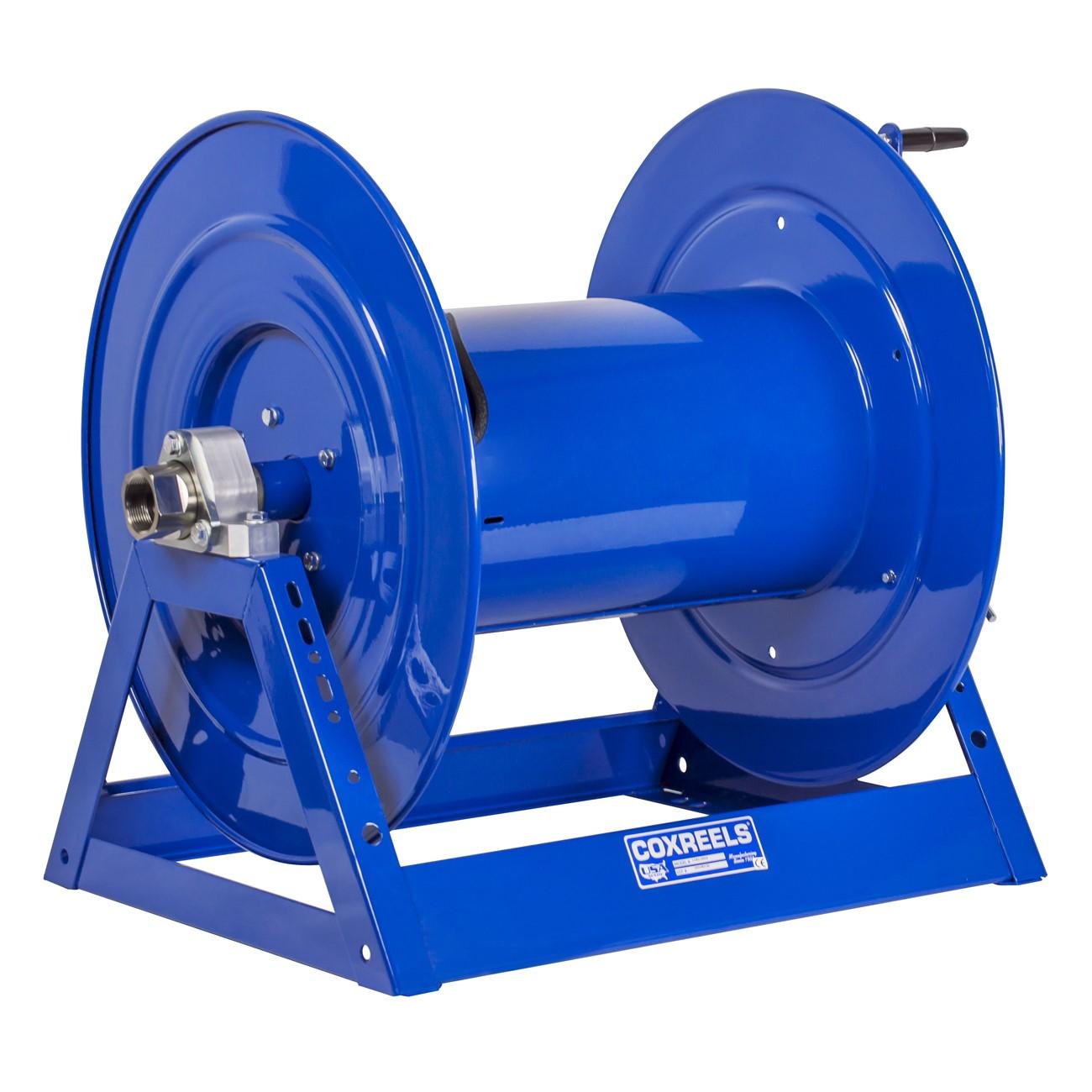

The COXREELS 1185-2020-C is a heavy-duty industrial hose reel from the 1185 Series, engineered to manage long lengths of large-diameter hose where high-volume fluid delivery is required. The reel features a 1.5-inch inner diameter hose path and accommodates up to 70 feet of hose. It is available in hand crank and motor-driven configurations. The all-welded steel A-frame base and CNC-spun ribbed discs provide the structural rigidity needed for demanding mobile and stationary applications. A CPC powder coat finish resists chipping and rust for extended service life in field conditions. Licensed HVAC, plumbing, and industrial service technicians are the primary installers of this reel.

The 1185-2020-C is suited for applications requiring delivery of large volumes of fluid through wide-bore hose, including industrial wash-down, petroleum transfer, chemical dispensing, and heavy-duty irrigation or plumbing service work. The open drum slot design and low-profile outlet riser allow the hose to wrap flat without crimping, preserving hose integrity over repeated cycles. Weighing 83 pounds, it is built for permanent mounting on service trucks, trailers, or fixed service bays where a robust, high-capacity reel is needed.

Key Features

• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 0.25-inch steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• Front bevel-geared crank with long-handled locking pin for easy mechanical retraction and secured reel position
• CPC powder coat finish resists chips and rust for long service life in mobile and outdoor environments

Compatibility

Designed as an OEM-style replacement and direct-fit unit for large-diameter hose reel applications requiring a 1.5-inch ID hose connection and up to 70 feet of hose capacity in hand crank or motor-driven service configurations.

Installation Notes

Installation is typically performed by industrial mechanics, plumbers, or trained service technicians. Depressurize and drain all fluid from the hose and supply line before mounting or servicing the reel. Secure the A-frame base to a flat, load-rated surface using fasteners appropriate for the mounting substrate and application load. Verify that supply-side fittings and swivel connections are thread-sealed and torqued per the fitting manufacturer guidelines before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 70 feet
• Weight: 83 pounds
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel Material: Electroless nickel plated steel
• UPC: 674255852570

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020-C
