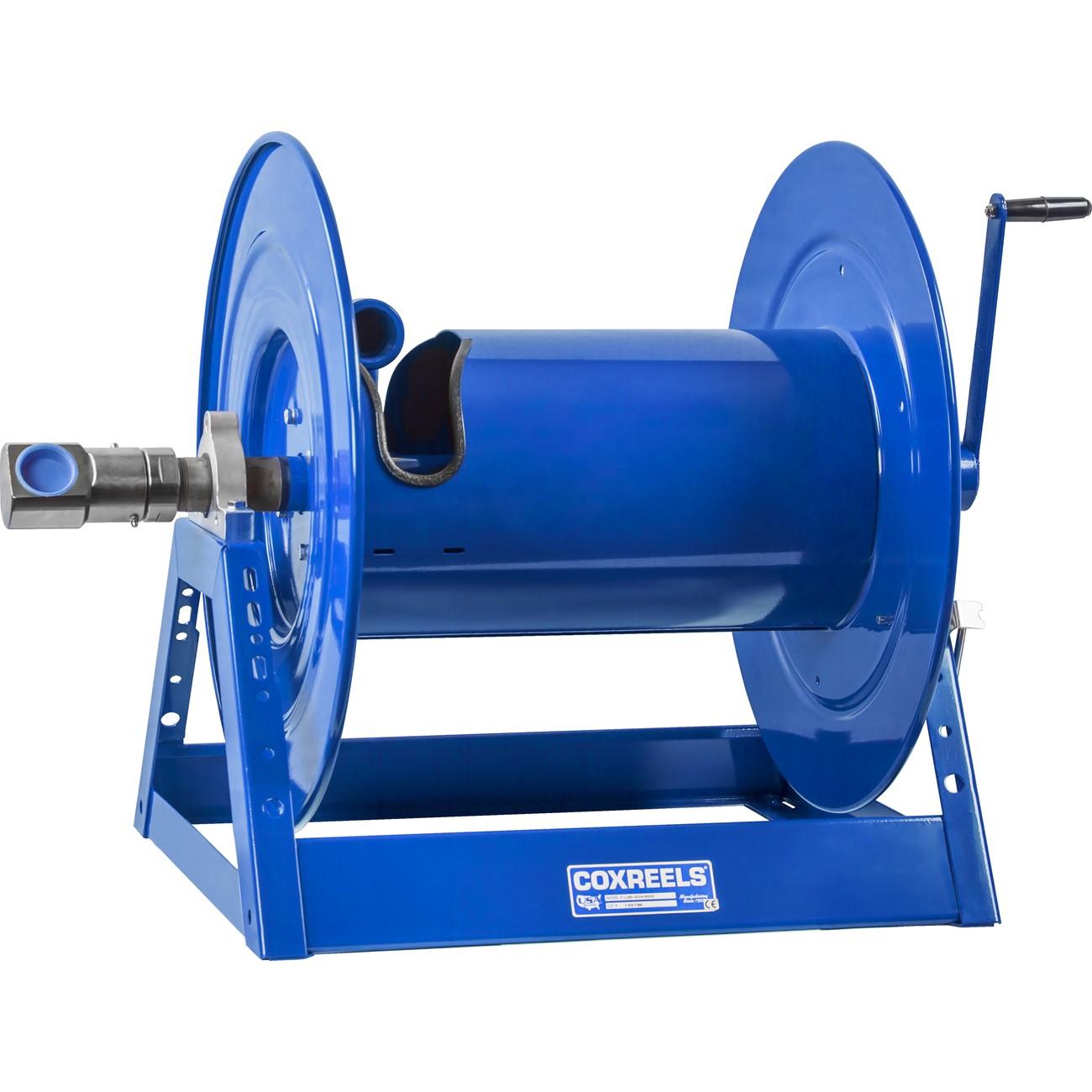

Coxreels 1185-2020-BUXX Hose Reel 1-1/2 in Id Hand Crank

Product Description

The COXREELS 1185-2020-BUXX is a heavy-duty hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Part of the 1185 Series, this reel ships with a 1-1/2 inch ID inlet and a 2-1/16 inch OD drum channel, and it is available in both hand crank and motor-driven configurations. The all-welded steel A-frame base, CNC-spun ribbed discs, and permanent lubricated bearings are engineered to carry the added weight of large-bore hose without flex or fatigue. Licensed HVAC technicians, industrial mechanics, and fleet service professionals install this reel in fixed and mobile service environments where consistent high-flow delivery is required.

The 1185-2020-BUXX is suited for demanding fixed-mount and mobile applications where large-diameter hose must be managed safely and efficiently. The open drum slot design keeps hose wrapping flat and non-crimping, maintaining flow integrity across the full reel length. The low-profile outlet riser reduces hose stress at the feed point. This reel is a practical fit for industrial wash-down stations, mobile lube trucks, high-flow air systems, and similar trade service rigs that require reliable mechanical retraction and secure lockout between uses.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated horizontal surface-mount bearings for smooth, consistent rotation
• CPC powder coat finish is chip-resistant and rust-inhibiting; long-handled locking pin secures reel position between uses

Compatibility

Designed as an OEM-spec unit within the COXREELS 1185 Series, compatible with large-diameter hose applications requiring a 1-1/2 inch ID connection in hand crank or motor-driven configurations.

Installation Notes

This reel should be installed by a qualified mechanic or service technician familiar with high-flow fluid or air systems. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the A-frame base to a rigid surface using the integrated mounting pattern and appropriate fasteners rated for the reel weight. Verify all NPT swivel connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Length: 33 inches
• Width: 20 inches
Height: 23 inches
• Weight: 70 pounds
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255850927

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020-BUXX
