Coxreels 1185-2020-AB Hose Reel 1.5 in Id 70 Ft

Product Description

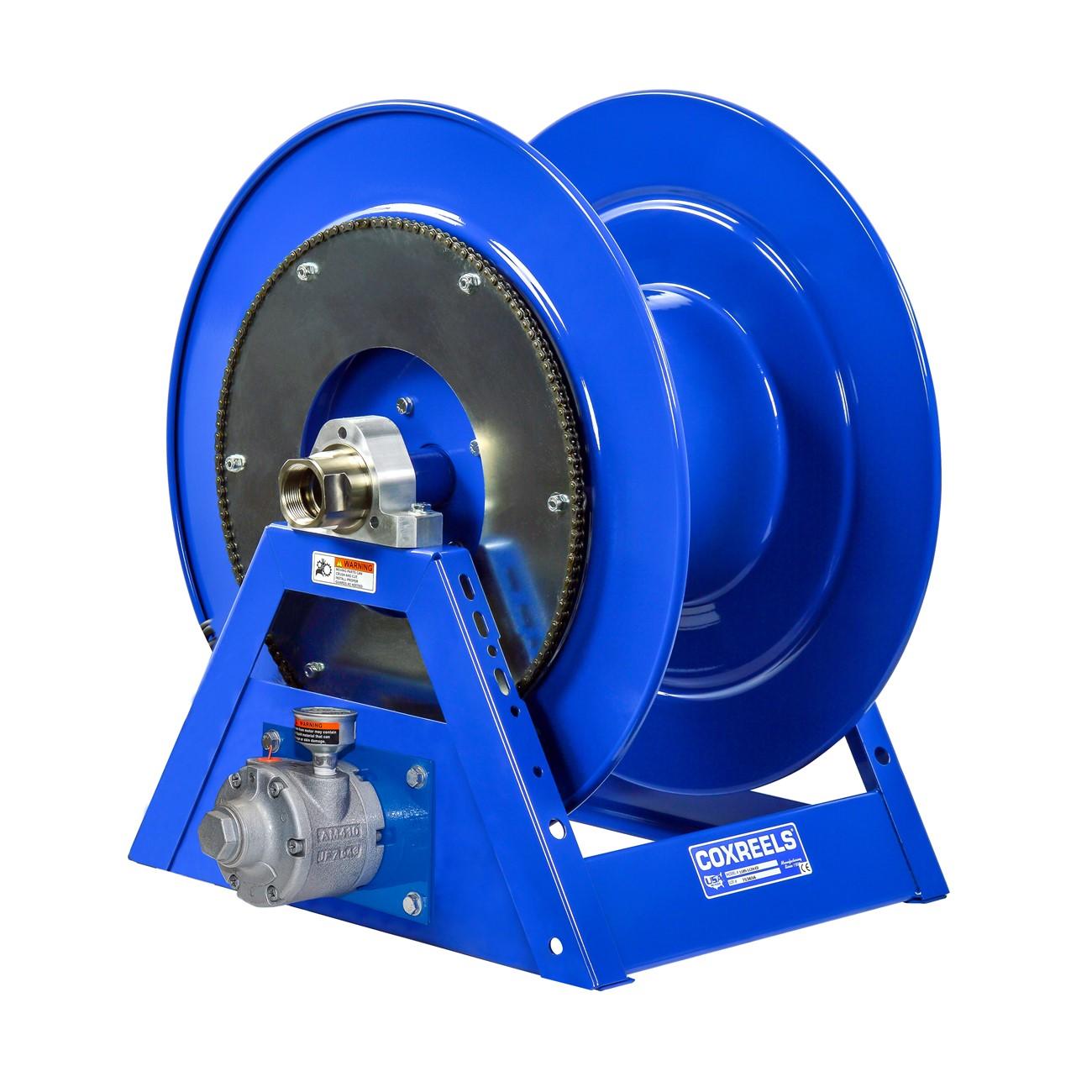

The COXREELS 1185-2020-AB is a heavy-duty hose reel from the 1185 Series, engineered for high-volume fluid delivery through long runs of large-diameter hose. Built on a one-piece all-welded steel A-frame base, this reel is available in hand crank and motor-driven configurations, making it suitable for fixed and mobile service applications. The open drum design and exclusive low-profile outlet riser guide hose onto the drum in a flat, non-crimping wrap. The unit ships as a single assembly weighing 87 pounds and measures 33 inches long by 20 inches wide by 23 inches tall.

The 1185-2020-AB is designed for industrial and commercial service environments where large-diameter hose — 1.5 inch inner diameter and 2.0625 inch outer diameter — must be managed efficiently over lengths up to 70 feet. Typical applications include mobile lube trucks, wash-down stations, bulk fluid transfer, and heavy-duty shop service bays. The motor-driven variant uses a six-vane aluminum body air motor for powered retrieval in high-cycle or demanding mobile installations where manual retrieval is impractical.

Key Features

• One-piece CNC robotically welded 0.25 inch steel A-frame base provides rigid structure without bolted joints
• Low-profile outlet riser and open drum slot eliminate hose crimping and promote flat, smooth layering
• Full-flow in-line swivel with electroless nickel-plated steel body allows seal service and hose changes without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated horizontal surface-mount bearings for consistent, low-effort rotation
• CPC powder coat finish resists chipping and rust for long service life in demanding environments

Compatibility

Designed as an OEM-style replacement or direct-fit unit for large-diameter hose reel applications in the 1185 Series product family; consult COXREELS documentation to confirm fitment for specific mounting configurations and hose specifications.

Installation Notes

Installation is typically performed by qualified service technicians or mechanics familiar with fluid transfer equipment and mobile service rigs. Power down or depressurize any connected fluid system before mounting or servicing the reel. Secure the A-frame base to a flat, load-rated surface using the integrated mounting pattern; verify all fasteners meet the load rating required for an 87-pound assembly under dynamic mobile conditions. If the air motor option is installed, follow applicable pneumatic safety practices and confirm supply pressure is within the motor manufacturer's specified range before operation.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 70 feet
• Unit Weight: 87 pounds
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Frame Material: 0.25 inch welded steel
• Swivel Finish: Electroless nickel-plated steel
• Surface Finish: CPC powder coat
• UPC: 674255838932

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020-AB
