Coxreels 1185-2020-A Hose Reel 1.5 in Id 70 Ft

Product Description

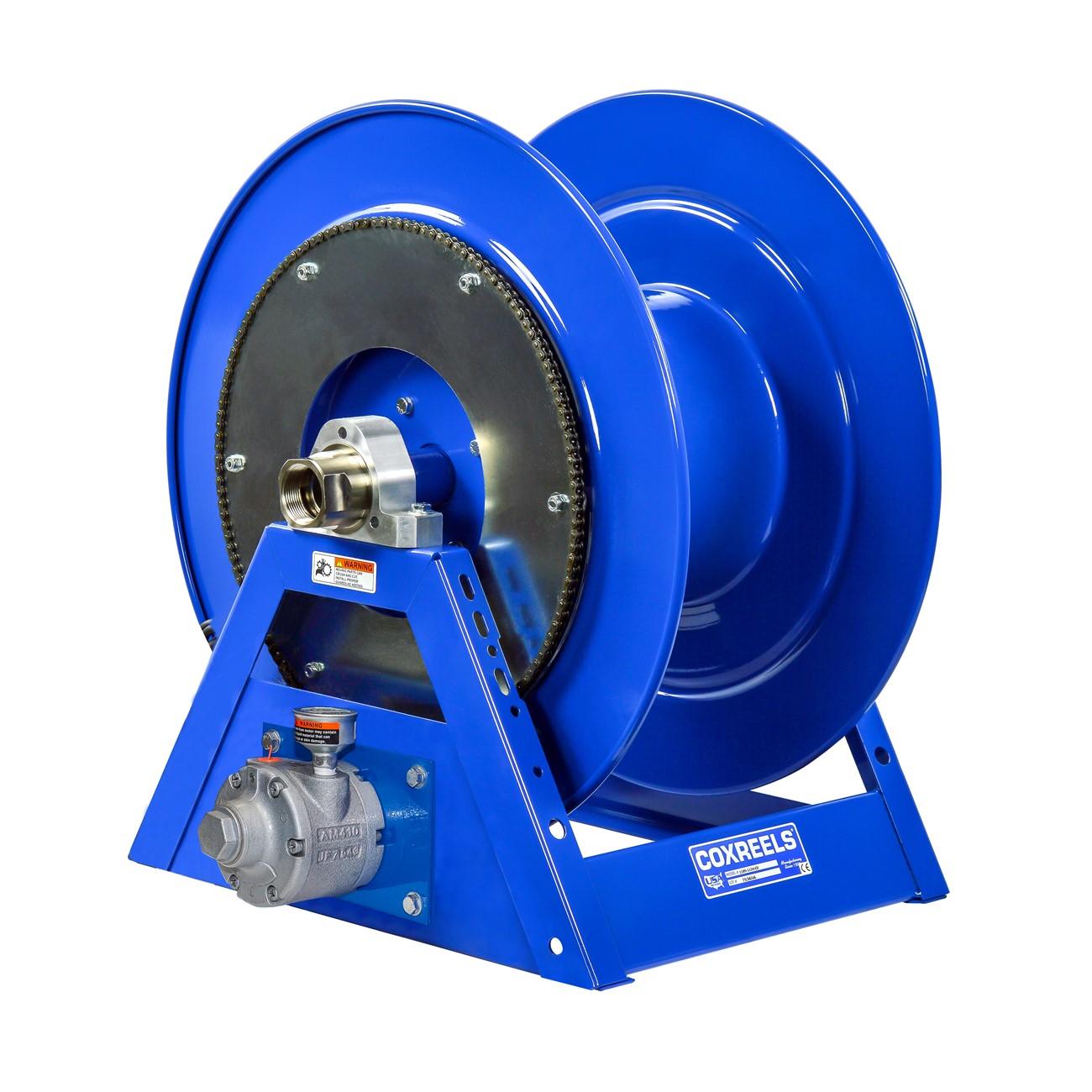

The COXREELS 1185-2020-A is a heavy-duty hose reel from the 1185 Series, engineered for high-volume fluid delivery applications requiring long runs of large-diameter hose. The reel accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, with a 70-foot hose length capacity. It is available in hand crank and motor-driven configurations. The all-welded A-frame base is fabricated from 0.25-inch steel and provides the structural rigidity needed to support the added weight of large-diameter hose without flex or fatigue. Licensed HVAC technicians, industrial mechanics, and fleet service professionals are the primary installers of this reel in fixed and mobile service environments.

The 1185-2020-A is suited for commercial and industrial settings where extended hose runs and high flow rates are required. Typical applications include mobile lube trucks, fleet maintenance bays, industrial plant fluid distribution, and heavy-equipment service operations. The open drum slot design and low-profile outlet riser promote flat, even hose layering, reducing wear and eliminating kink points during repeated extension and retraction cycles. The reel weighs 78 pounds and measures 33 inches long, 20 inches wide, and 23 inches tall, making it compatible with standard skid, wall, and truck-bed mounting configurations.

Key Features

• Electroless nickel-plated steel in-line full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased structural strength and hose edge protection
• Exclusive low-profile outlet riser and open drum slot design delivers non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 0.25-inch steel A-frame base with integrated mounting pattern for fast installation and removal
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation under load
• CPC chip-resistant, rust-inhibiting powder coat finish for long service life in demanding environments

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and mobile fluid-delivery hose reel applications requiring 1.5-inch ID hose with up to 70 feet of capacity.

Installation Notes

Installation is typically performed by industrial mechanics or fluid-system technicians. Power down or depressurize the fluid system completely before connecting or disconnecting hose and swivel fittings. Secure the A-frame base to a structurally rated mounting surface using the integrated mounting pattern in the steel base. For motor-driven configurations, verify electrical supply voltage and motor compatibility before wiring, and follow applicable NEC guidelines for the installation environment.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 70 feet
• Unit Weight: 78 pounds
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Frame Material: 0.25-inch welded steel
• Swivel Finish: Electroless nickel-plated steel
• Finish: CPC powder coat
• UPC: 674255838925

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2020-A
