Coxreels 1185-1524 Hose Reel 1.5 in Id 75 Ft

Product Description

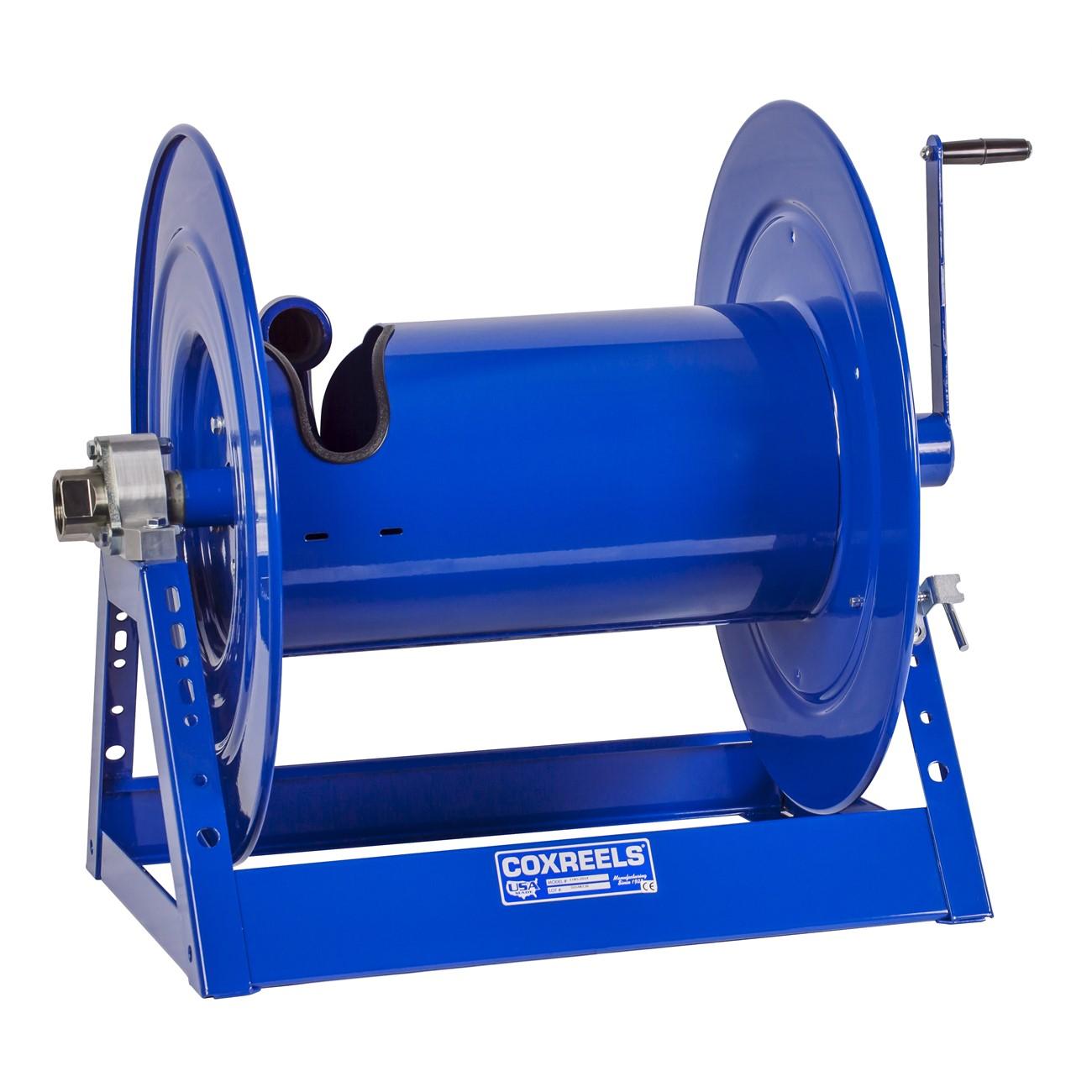

The COXREELS 1185-1524 is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery through large-diameter hose. Designed for demanding industrial and mobile applications, this reel handles a 1.5-inch inner diameter hose up to 75 feet in length. The all-welded steel A-frame base provides the structural rigidity needed to support the added weight of long, large-bore hose without flex or fatigue. An exclusive low-profile outlet riser and open drum slot design ensures a non-crimping, flat hose wrap every time. Licensed trade professionals installing high-flow water, petroleum, or industrial fluid systems will find this reel well suited to fixed and mobile mount configurations.

The 1185-1524 is intended for industrial service environments where high-volume hose delivery is required over extended lengths. Its open drum design and reinforced disc construction make it appropriate for permanent facility installations, service trucks, and mobile equipment where a reliable, mechanically retracted reel is needed. The direct hand crank allows fast mechanical retraction without electrical dependency, making it a practical choice for field service operations.

Key Features

• Low-profile outlet riser and open drum slot design eliminates hose crimping and promotes a flat, smooth wrap
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, durability, and operator safety
• One-piece, all CNC robotically welded 0.25-inch steel A-frame base for superior structural integrity without bolted joints
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition
• Long-handled locking pin secures reel position; direct hand crank enables easy mechanical retraction

Compatibility

Designed for use with 1.5-inch inner diameter hose up to 75 feet in length within the COXREELS 1185 Series hose reel platform, suitable for fixed and mobile industrial fluid delivery applications.

Installation Notes

Installation and mounting should be performed by a qualified technician familiar with industrial fluid handling equipment. Shut off all fluid supply and depressurize the hose assembly fully before connecting or servicing the reel. Mount to a structurally sound surface using the integrated base mounting pattern; ensure fasteners and surface ratings are appropriate for the reel weight of 81 pounds plus loaded hose. Consult applicable local codes and equipment manufacturer guidelines for hose compatibility and fluid service ratings.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 75 feet
• Weight: 81 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• UPC: 674255833562

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524
