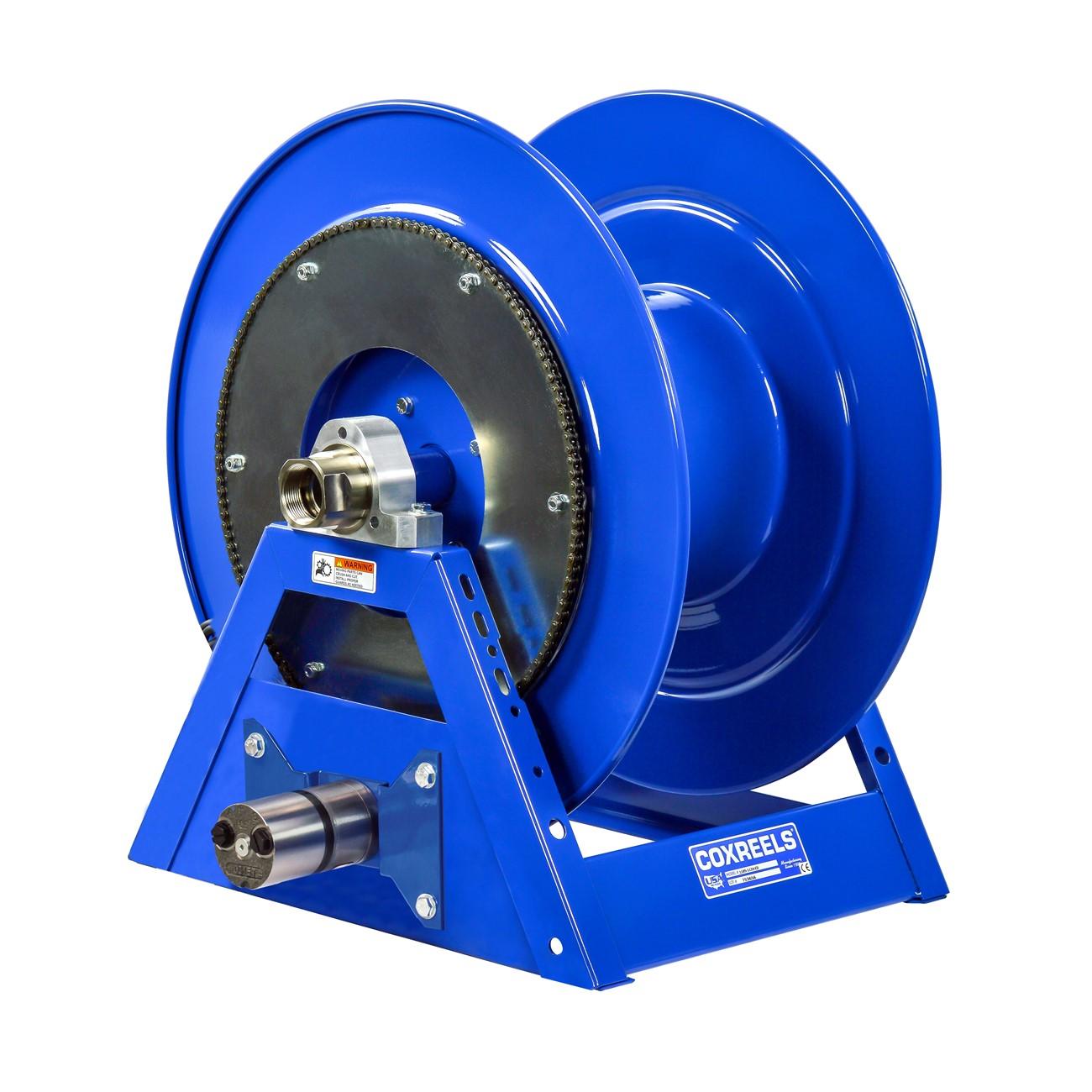

Coxreels 1185-1524-H Hose Reel 1.5 Inch Id 75 Ft

Product Description

The COXREELS 1185-1524-H is a heavy-duty hose reel from the 1185 Series, engineered for high-volume fluid delivery through long runs of large-diameter hose. Designed for both hand crank and hydraulic motor operation, it features a 1.5-inch inner diameter hose path and accommodates up to 75 feet of hose. The exclusive low-profile outlet riser and open drum slot design ensure a non-crimping, flat, smooth hose wrap that protects hose integrity over repeated cycles. The all-welded steel A-frame base provides structural rigidity suited for demanding mobile and stationary applications. Licensed tradespeople and fleet service technicians are the primary installers.

The 1185-1524-H suits industrial, municipal, and fleet maintenance operations where high-flow rates and long hose lengths are required. Its open drum construction and robust welded frame make it appropriate for mobile service vehicles, wash-down stations, and bulk fluid transfer setups. The unit ships as a single reel assembly and is compatible with standard NPT hose and fitting configurations common in heavy-duty service environments.

Key Features

• Low-profile outlet riser and open drum slot design prevent hose crimping and promote flat, even hose wrap
• In-line electroless nickel plated steel full-flow NPT swivel allows simple seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, and operator safety
• One-piece all-welded 0.25-inch steel A-frame base provides superior structural integrity compared to bolted designs
• Permanently lubricated horizontal surface mount bearings support smooth, low-effort rotation
• CPC powder coat finish resists chips, rust, and corrosion for long service life; hydraulic motor drive included

Compatibility

Designed as an OEM-style replacement or direct application fit for heavy-duty industrial and mobile hose reel installations requiring a 1.5-inch ID hose path and NPT swivel connections.

Installation Notes

Installation is typically performed by industrial mechanics or qualified service technicians familiar with high-volume fluid transfer equipment. Shut off all fluid supply and depressurize the hose and connected lines fully before mounting or servicing the reel. The mounting pattern is integrated into the steel base plate for straightforward attachment to truck beds, service frames, or fixed structures. Verify hydraulic motor supply connections and pressure ratings are compatible with the drive system before commissioning.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 75 feet
• Drive Type: Hand crank and hydraulic motor
• Swivel Type: Electroless nickel plated steel full-flow NPT in-line swivel
• Frame Construction: All-welded 0.25-inch steel A-frame
• Finish: CPC powder coat, chip and rust resistant
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 89 pounds
• UPC: 674255836846

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-H
