Coxreels 1185-1524-EF Hose Reel 1.5 in Id 75 Ft

Product Description

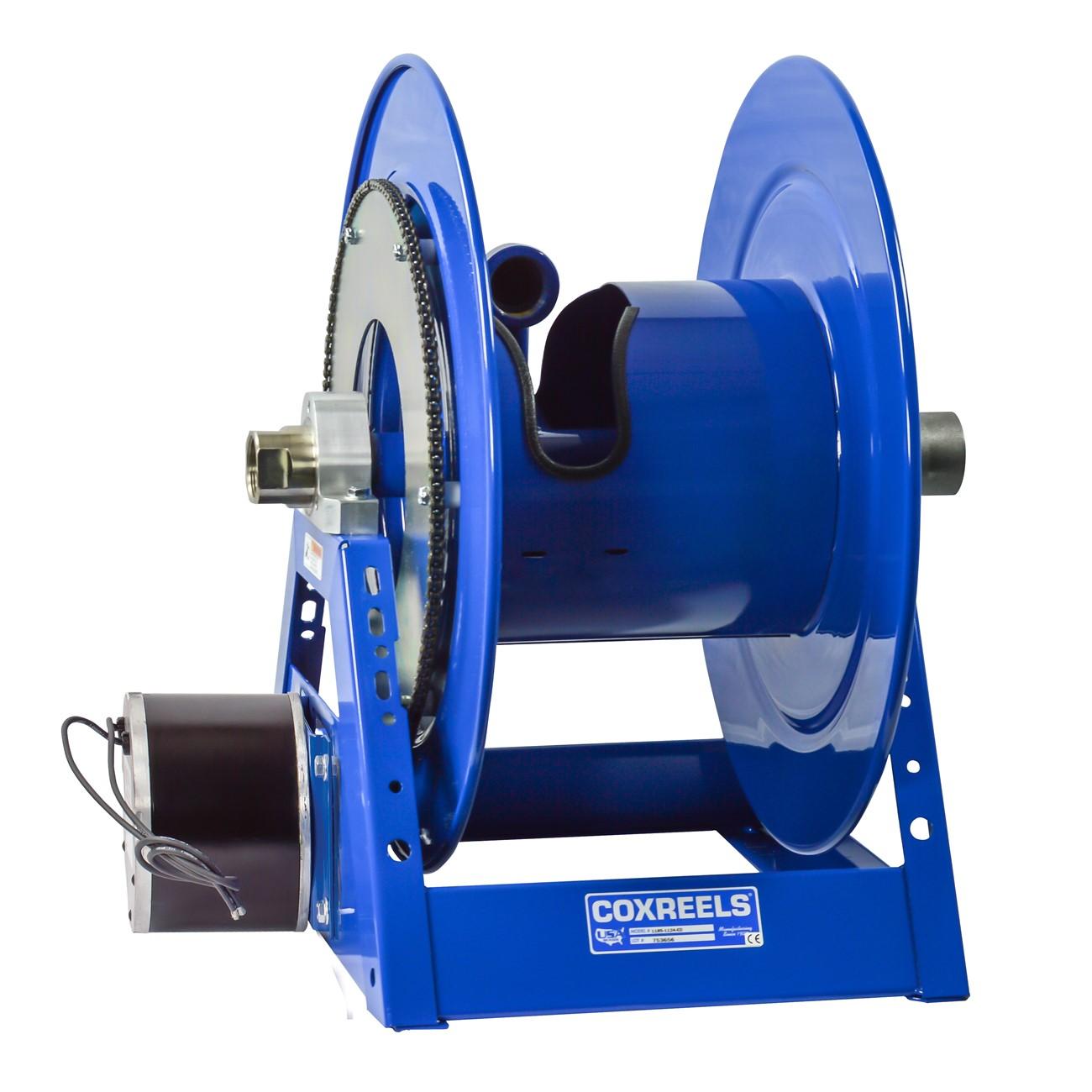

The COXREELS 1185-1524-EF is a heavy-duty motor-driven hose reel from the 1185 Series, built to handle long lengths of large-diameter hose where high-volume fluid delivery is required. The reel features a 1.5-inch inside diameter hose path and accommodates up to 75 feet of hose. Power comes from a 24-volt DC, 1/3 HP reversible electric motor. The all-welded steel A-frame base and CNC robotically spun ribbed discs give this reel the structural rigidity needed for demanding mobile and fixed installations. A licensed HVAC technician, plumber, or industrial service technician typically handles installation and commissioning of this unit.

The 1185-1524-EF is suited for applications requiring extended hose lengths and elevated flow volumes, including industrial fluid transfer, mobile service rigs, and large-scale wash-down or delivery setups. The open drum design and low-profile outlet riser promote a flat, non-crimping hose wrap, which is critical when running large-diameter hose repeatedly under load. The reel is appropriate for both stationary mounting and mobile vehicle or trailer installations where structural integrity under weight and vibration is essential.

Key Features

• 24-volt DC, 1/3 HP reversible motor for powered hose retrieval
• Exclusive low-profile outlet riser and open drum slot design prevent hose crimping and promote flat, even wrapping
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 1/4-inch steel A-frame base — not bolted — for superior structural rigidity
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in harsh environments
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series, intended for large-diameter hose applications requiring motor-driven retrieval in mobile or fixed industrial service environments.

Installation Notes

Installation of this hose reel should be performed by a qualified technician familiar with fluid handling equipment and low-voltage DC wiring. Disconnect and lock out all power sources before making electrical connections to the 24-volt DC motor. Ensure the mounting surface can support the reel weight of 94 pounds plus the added load of a fully charged hose. Consult applicable local codes and manufacturer mounting pattern guidelines when securing the A-frame base to mobile or stationary platforms.

Technical Specifications

• Hose Inside Diameter: 1.5 inches
• Hose Outside Diameter: 2.0625 inches
• Hose Capacity: 75 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 1/4-inch welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• Unit Weight: 94 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-EF
