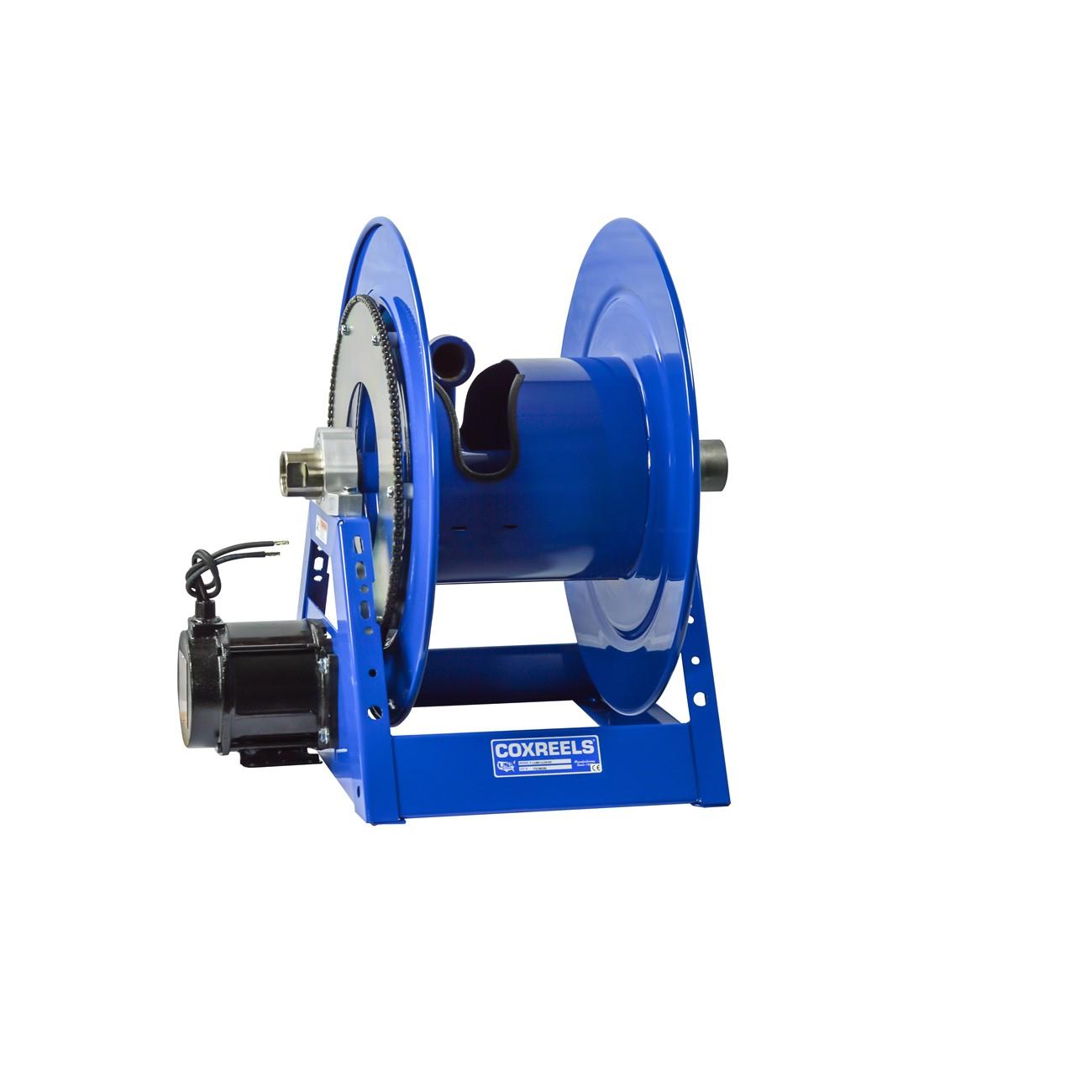

Coxreels 1185-1524-ED Hose Reel 1.5 in Id 75 Ft

Product Description

The COXREELS 1185-1524-ED is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery through large-diameter hose. It features a 1.5-inch inner diameter hose passage and accommodates hose up to 75 feet in length. The unit ships at 107 pounds and measures 29.5 inches long by 25 inches wide by 26.5 inches tall. A 12V DC, 0.5 HP explosion-proof reversible motor handles powered retrieval. The all-welded steel A-frame base and open drum design keep hose flat and uncrimped during both payout and retrieval. Licensed trades and industrial maintenance professionals are the primary installers of this reel class.

This reel is suited for demanding applications that require moving large volumes of fluid through long hose runs. The open drum slot and low-profile outlet riser promote a non-crimping, flat hose wrap, which matters when running large-diameter hose under load. The explosion-proof motor rating makes it appropriate for use in environments where flammable vapors may be present. Its mounting pattern is integrated into the steel base, supporting installation on fixed surfaces as well as mobile platforms such as service trucks and trailers.

Key Features

• 12V DC, 0.5 HP explosion-proof reversible motor for powered hose retrieval in hazardous environments
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 0.25-inch steel A-frame base provides superior structural integrity over bolted alternatives
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanent lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chipping and rust for long service life in mobile and industrial settings

Compatibility

Designed for use with 1.5-inch inner diameter hose up to 75 feet in length. Part of the COXREELS 1185 Series for large-diameter, high-volume hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and low-voltage DC wiring. Disconnect and lock out all power and fluid supply before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the integrated base mounting pattern. Verify that the 12V DC power supply circuit is properly rated and fused before connecting the motor leads.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 75 feet
• Motor: 12V DC, 0.5 HP, explosion-proof reversible
• Frame Construction: 0.25-inch CNC robotically welded steel A-frame
• Finish: CPC chip-resistant, rust-inhibiting powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 107 pounds
• UPC: 674255833753

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-ED
