Coxreels 1185-1524-ED-BUXX Hose Reel 1.5 in Id 12V

Product Description

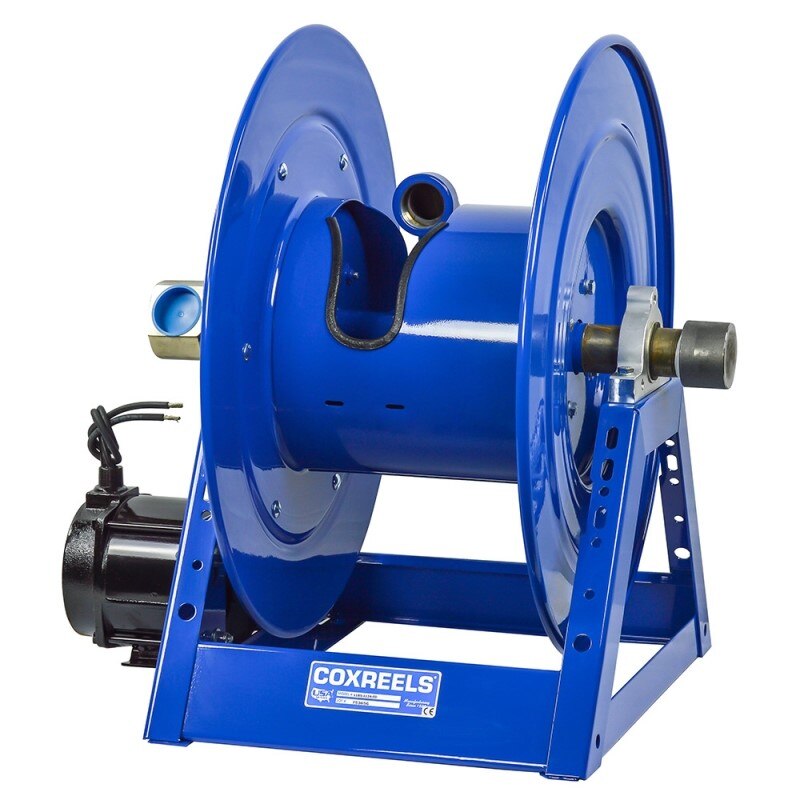

The COXREELS 1185-1524-ED-BUXX is a heavy-duty, motor-driven hose reel built for high-volume fluid delivery applications requiring long hose runs with large-diameter hose. It operates on a 12-volt DC, 1/2 HP explosion-proof reversible motor and accepts hose with a 1.5-inch inner diameter and a 2.0625-inch outer diameter. The reel features an all-welded steel A-frame base and CNC robotically spun ribbed discs with rolled edges. It is installed by HVAC, industrial, and mobile service technicians who need a durable, high-flow reel solution in demanding field environments.

This reel is suited for mobile service units, fleet vehicles, and fixed-mount industrial or commercial service bays where large-diameter hose must be managed reliably. The open drum slot design and low-profile outlet riser allow hose to wrap flat without crimping, supporting consistent flow and extended hose service life. The unit ships as a single assembly and is designed for both stationary and mobile installation scenarios where high-volume fluid transfer is required.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures flat, smooth hose wrap
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Long-lasting CPC powder coat finish rated for chip resistance and rust inhibition
• Permanently lubricated horizontal surface-mount bearings for smooth rotation

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for applications requiring large-diameter, high-volume hose management in mobile or fixed-mount service configurations.

Installation Notes

Installation is typically performed by licensed industrial, fleet, or mechanical service technicians. Disconnect and lock out all electrical power and fluid supply lines before mounting or servicing the reel. Secure the A-frame base to a structurally rated surface using fasteners appropriate for the load rating of the reel and its maximum hose-plus-fluid weight. Verify that the 12V DC power circuit is properly fused and wired in accordance with applicable electrical codes before energizing the motor.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 107 pounds
• UPC: 674255854529

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-ED-BUXX
