Coxreels 1185-1524-E Hose Reel 1.5 in Id 75 Ft Motor Driven

Product Description

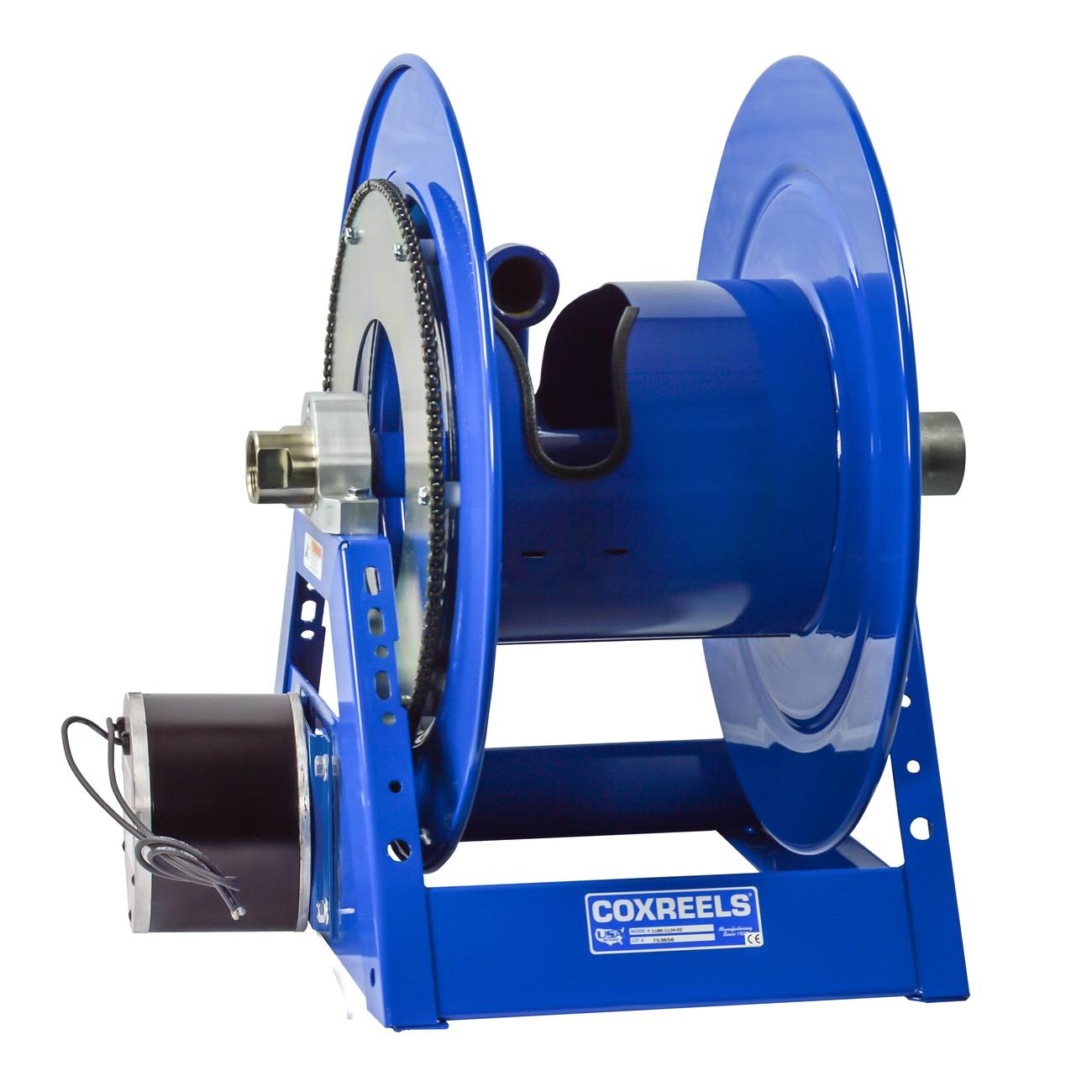

The COXREELS 1185-1524-E is a heavy-duty motor-driven hose reel from the 1185 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery applications. It features a 1.5-inch ID hose inlet and accommodates hose up to 75 feet in length. Power comes from a 12-volt DC, 1/3 HP reversible electric motor for controlled pay-out and retrieval. The reel weighs 94 pounds and is constructed around an all-welded, one-piece CNC robotically welded 0.25-inch steel A-frame base, providing the structural rigidity needed for demanding stationary or mobile installations. HVAC, industrial, and fleet service technicians are the primary installers of this unit.

The 1185-1524-E is suited for applications requiring delivery of large fluid volumes through wide-bore hose, including mobile service trucks, shop service bays, irrigation supply lines, and industrial process lines. The open drum slot design and exclusive low-profile outlet riser ensure the hose wraps flat and smooth without crimping, preserving hose integrity over repeated use cycles. Its sturdy base mounting pattern simplifies installation and removal from vehicle mounts or fixed service points.

Key Features

• 12-volt DC, 1/3 HP reversible electric motor for powered hose retrieval and pay-out
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• One-piece CNC robotically welded 0.25-inch steel A-frame base — welded, not bolted — for superior structural strength
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• Long-lasting CPC powder coat finish that is chip-resistant and rust-inhibiting

Compatibility

Designed as an OEM-style replacement or direct-fit reel for large-diameter hose applications requiring a 1.5-inch ID inlet and up to 75 feet of hose capacity in the COXREELS 1185 Series platform.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and low-voltage DC wiring. Disconnect and lock out all power sources before servicing the motor or electrical connections, and shut off the fluid supply line before attaching or removing hose. The base mounting pattern is designed for direct fastening to vehicle beds, service bay floors, or fixed mounting surfaces — verify the mounting surface can support the 94-pound reel weight plus hose load. Consult applicable local codes and manufacturer guidelines for proper hose fitting torque and fluid system pressure ratings before placing the unit in service.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Capacity: 75 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 0.25-inch steel, CNC robotically welded
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 94 pounds
• Sold As: Each
• UPC: 674255833760

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-E
