Coxreels 1185-1524-C Hose Reel 1.5 in Id 75 Ft

Product Description

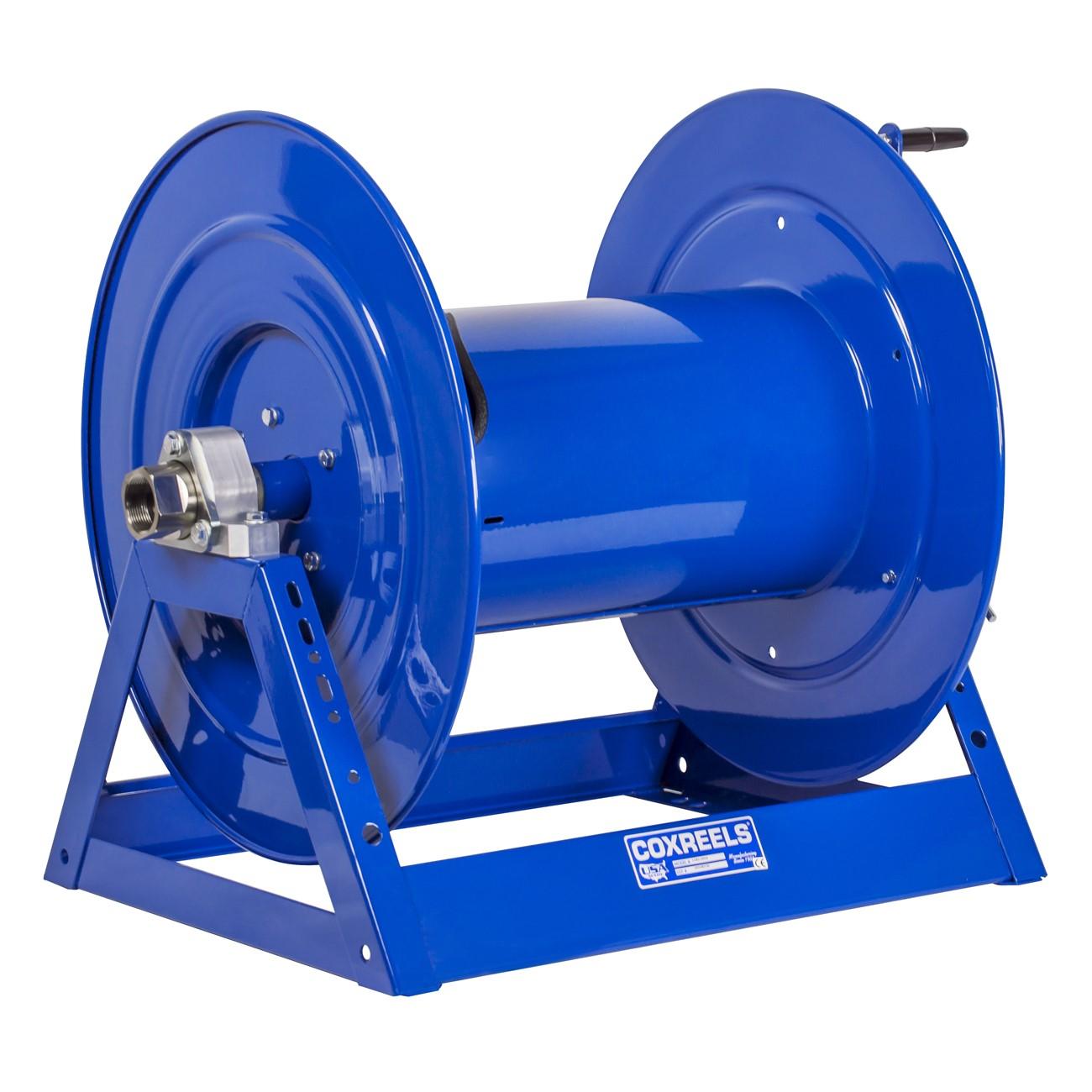

The COXREELS 1185-1524-C is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery through long runs of large-diameter hose. It features a 1.5-inch inner diameter hose path with an outer diameter of 2.0625 inches and accommodates up to 75 feet of hose. The reel is constructed around a one-piece all-CNC-robotically-welded 0.25-inch steel A-frame base that is fully welded, not bolted, for maximum structural integrity. An exclusive low-profile outlet riser and open drum slot design produces a non-crimping, flat smooth hose wrap on every retraction. Installed by industrial maintenance techs, mobile service crews, and fleet service professionals where dependable large-bore hose management is required.

The 1185-1524-C is suited for demanding fixed and mobile applications that require delivery of high flow volumes through large-diameter hose. Its open drum design and reinforced disc construction make it appropriate for use in industrial plants, fleet service bays, agricultural operations, and mobile service trucks where the extra weight of a fully loaded large-bore hose demands a structurally robust reel platform. The front bevel-geared crank and permanent lubricated bearings keep retraction manageable even under load.

Key Features

• One-piece all-CNC-robotically-welded 0.25-inch steel A-frame base for superior structural strength in fixed and mobile applications
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth layering
• In-line electroless nickel-plated steel full-flow NPT swivel allows simple seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanent lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chips and rust; long-handled locking pin secures reel position; front bevel-geared crank for mechanical retraction

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series, accommodating hose with a 1.5-inch inner diameter up to 75 feet in length for large-diameter, high-volume delivery applications.

Installation Notes

Installation is typically performed by industrial maintenance technicians or qualified service professionals. Power down or depressurize the connected fluid system completely before mounting or servicing the reel. The mounting pattern is located in the steel base for straightforward attachment and detachment. Verify that all hose fittings and swivel connections are fully seated and leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 75 feet
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 84 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-C
