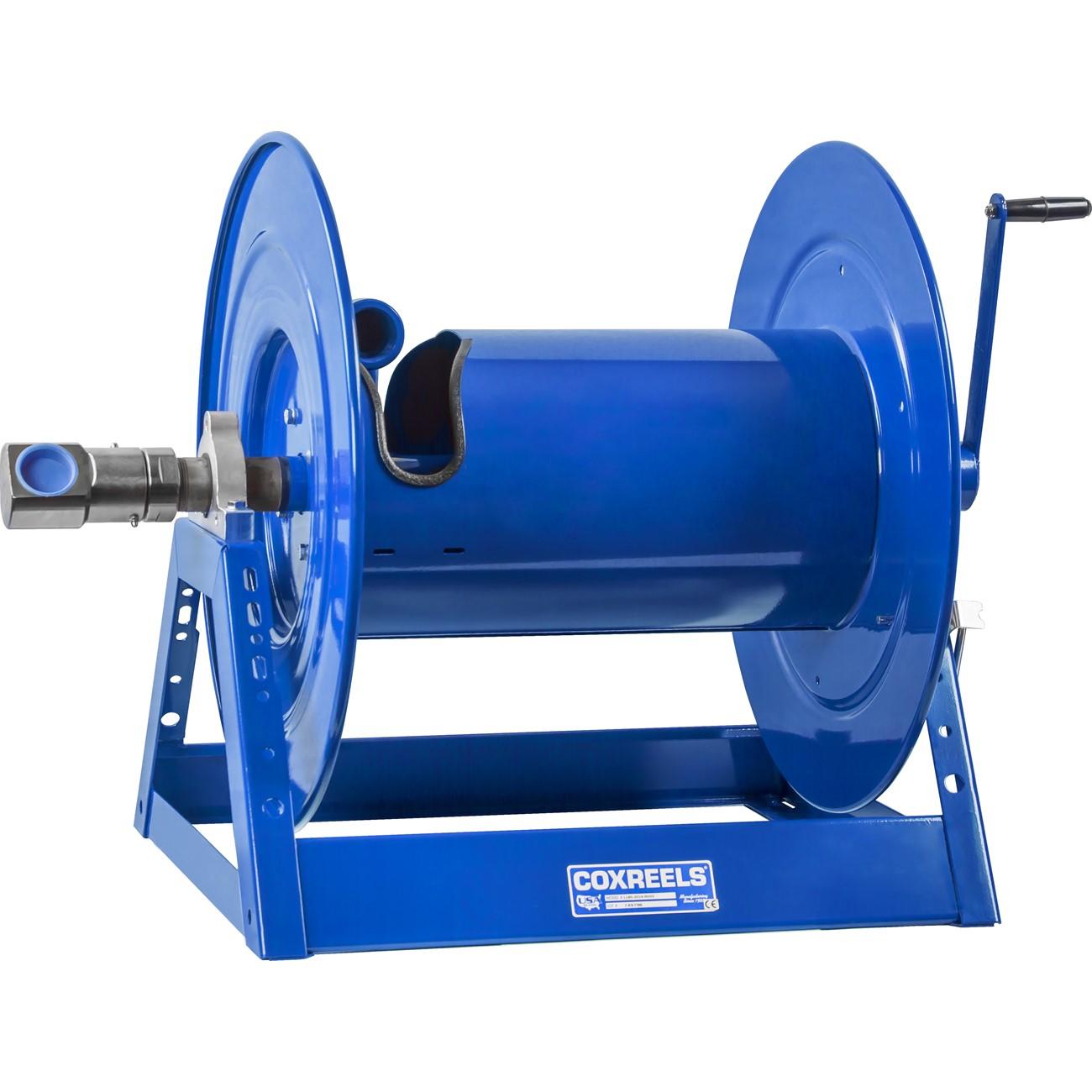

Coxreels 1185-1524-BUXX Hose Reel 1-1/2 Inch Id Hand Crank

Product Description

The COXREELS 1185-1524-BUXX is a heavy-duty hand crank hose reel engineered for high-volume fluid delivery through large-diameter hose. Built on the 1185 Series platform, it features a 1-1/2 inch ID hose inlet and a 2-1/16 inch OD, making it suited for applications that demand significant flow capacity over long hose runs. The all-welded steel A-frame base, CNC robotically spun ribbed discs, and electroless nickel plated full-flow swivel combine to handle the substantial weight and stress of large-bore hose without compromising operational performance. Licensed trade professionals install this reel in stationary and mobile service environments where reliable mechanical retraction and hose protection are critical requirements.

The 1185-1524-BUXX is designed for industrial, commercial, and mobile service applications where long lengths of large-diameter hose must be managed efficiently. The open drum slot and exclusive low-profile outlet riser ensure a non-crimping, flat hose wrap across the full drum width, preserving hose integrity over repeated cycles. It is well suited for fluid transfer operations in fleet maintenance, industrial facilities, and contractor service vehicles where both volume delivery and structural durability are priorities.

Key Features

• Electroless nickel plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base offers superior structural integrity with a built-in mounting pattern for easy installation and removal
• Permanently lubricated horizontal surface mount bearings support smooth, low-effort drum rotation
• CPC powder coat finish is chip resistant and rust inhibiting for long service life in demanding environments
• Long-handled locking pin secures the reel position; direct hand crank provides mechanical retraction without auxiliary power

Compatibility

Designed as an OEM-style reel for use with 1-1/2 inch ID large-diameter hose assemblies in hand crank or motor-driven configurations within the COXREELS 1185 Series platform.

Installation Notes

Installation is typically performed by licensed mechanics, industrial maintenance technicians, or plumbing professionals. Before servicing or mounting, relieve all system pressure and drain the hose completely. The base mounting pattern accepts standard fastener layouts for both fixed and mobile mount surfaces. Follow applicable facility safety codes and equipment manufacturer guidelines when securing the reel to a vehicle or stationary structure.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 81 pounds
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel Material: Electroless nickel plated steel
• Bearing Type: Permanently lubricated horizontal surface mount
• Retraction Method: Direct hand crank
• UPC: 674255846470

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-BUXX
