Coxreels 1185-1524-AB Hose Reel 1.5 in Id 75 Ft

Product Description

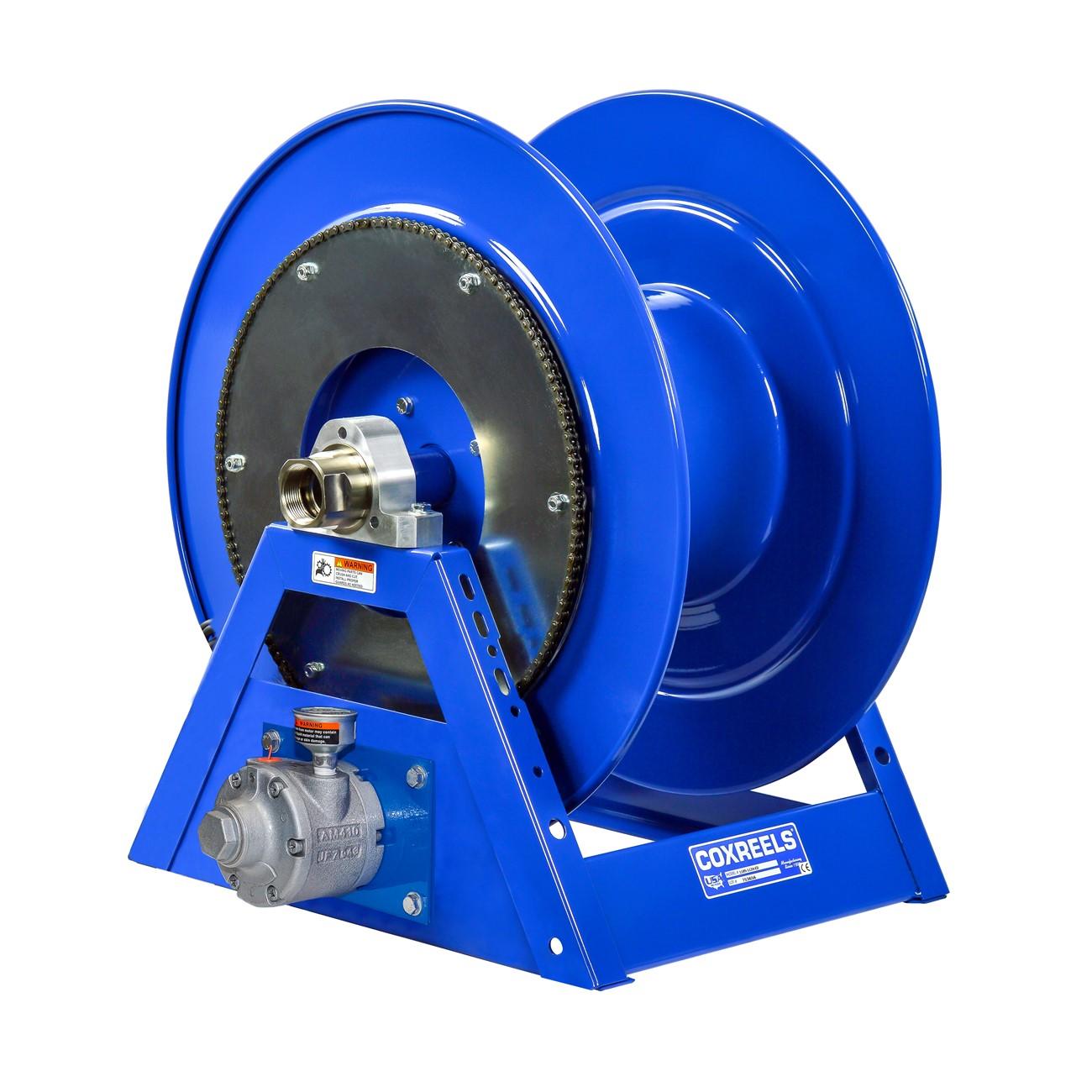

The COXREELS 1185-1524-AB is a heavy-duty hose reel from the 1185 Series, engineered for both hand crank and motor-driven operation. It accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, with a 75-foot length capacity. The open drum design and exclusive low-profile outlet riser work together to deliver a non-crimping, flat smooth hose wrap, protecting hose integrity under repeated use. At 89 pounds, this reel is built for demanding environments where high-volume fluid delivery and structural durability are required. Licensed HVAC, plumbing, and industrial service contractors are the primary installers of this unit.

The 1185-1524-AB is suited for applications requiring long runs of large-diameter hose with high flow volume. Its all-welded steel A-frame base and motor-drive capability make it a practical choice for mobile service units, fleet vehicles, and fixed industrial installations. The unit ships as a single assembly and is designed for straightforward mounting using the integrated base pattern, minimizing downtime during installation or reel changeouts.

Key Features

• Accepts 1.5-inch ID hose up to 75 feet in length for high-volume delivery applications
• Exclusive low-profile outlet riser and open drum slot design prevent hose crimping and ensure flat, smooth wrap
• One-piece CNC robotically welded 0.25-inch steel A-frame base for superior structural strength without bolted joints
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for enhanced durability and operator safety
• Aluminum body 6-vane air motor with CPC powder coat finish that resists chipping and rust

Compatibility

Designed as an OEM-style replacement or direct-use reel for large-diameter hose applications in the COXREELS 1185 Series product family.

Installation Notes

Installation is typically performed by qualified plumbing, industrial, or mechanical service technicians. Before mounting, ensure the mounting surface can support the reel weight of 89 pounds plus the fully loaded hose assembly. Power down any connected motor supply before making fluid or electrical connections. Follow all applicable local codes and manufacturer torque guidelines for NPT swivel fittings during hose attachment.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 75 feet
• Weight: 89 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Frame Material: 0.25-inch welded steel
• Swivel Finish: Electroless nickel-plated steel
• Motor Type: Aluminum body 6-vane air motor
• Finish: CPC powder coat
• Unit of Measure: Each
• UPC: 674255833739

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-AB
