Coxreels 1185-1524-A Hose Reel 1.5 in Id 75 Ft

Product Description

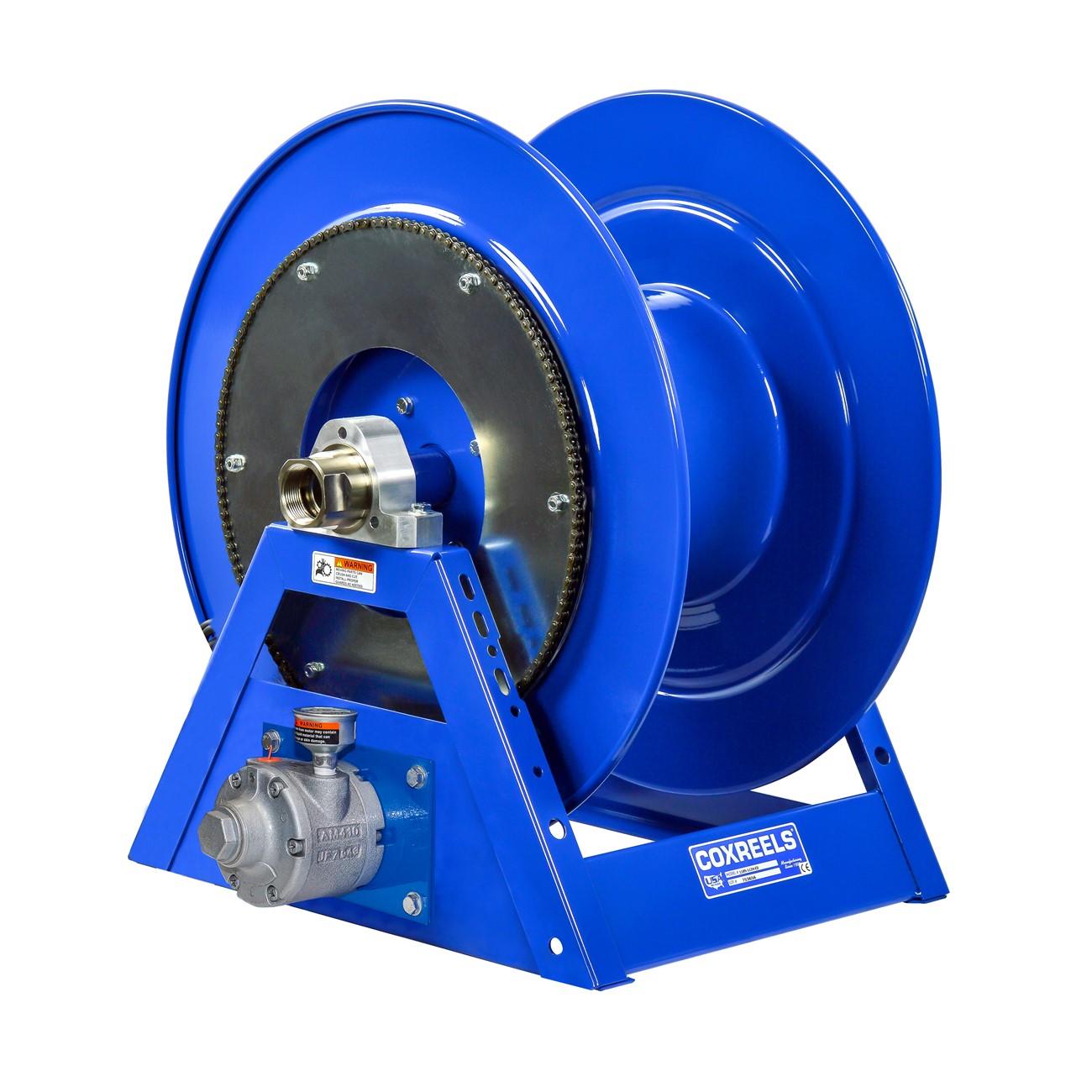

The COXREELS 1185-1524-A is a heavy-duty hose reel from the 1185 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. Available in hand crank and motor-driven configurations, this reel accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, with a 75-foot length capacity. The all-welded steel A-frame base and CNC robotically spun discs give it the structural rigidity needed for demanding mobile and stationary applications. Weighing 89 pounds and measuring 29.5 inches long by 25 inches wide by 26.5 inches tall, it is sized for industrial-grade use where standard reels fall short. Licensed technicians and service crews working with high-flow hose assemblies are the primary installers.

The 1185-1524-A is suited for applications requiring high-volume hose delivery across industrial, commercial, and mobile service environments. The open drum slot design and low-profile outlet riser allow the hose to wrap flat and smooth without crimping, which is critical when running large-diameter hose under pressure. The motor-driven option makes it practical for fleet service vehicles, wash bays, or fixed-station setups where frequent deployment and retraction is required. The mounting pattern is built into the steel base, allowing for straightforward installation on vehicle beds, walls, or service platforms.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 0.25-inch steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated horizontal surface-mount bearings for smooth, consistent rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1185 Series, suitable for hand crank or motor-driven hose reel applications requiring a 1.5-inch ID hose connection.

Installation Notes

Installation should be performed by a qualified technician familiar with high-volume hose reel systems. Depressurize and drain all fluid from the hose and supply line before mounting or servicing the reel. Secure the reel to a flat, load-bearing surface using the integrated base mounting pattern and appropriately rated fasteners. Verify that all swivel and hose connections are properly torqued and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 75 feet
• Unit Weight: 89 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255833722

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-A
