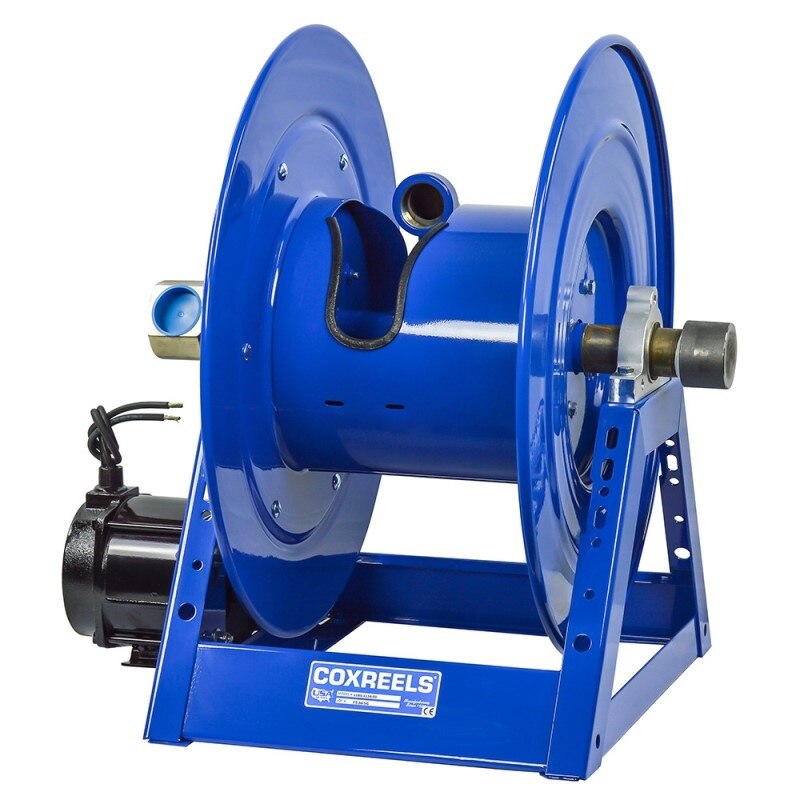

Coxreels 1185-1524-A-BUXX Hose Reel 1-1/2 Inch Id

Product Description

The COXREELS 1185-1524-A-BUXX is a heavy-duty hand crank and motor driven hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. The reel features a 1-1/2 inch inner diameter hose path and a 2-1/16 inch outer diameter profile. An exclusive low-profile outlet riser combined with an open drum slot design keeps hose wrapping flat and smooth without crimping. The all-welded CNC robotically fabricated 12-gauge steel A-frame base delivers the structural rigidity needed to support the extra weight of large-diameter hose, including in mobile and demanding field environments. Licensed HVAC, plumbing, and fluid handling technicians will find this reel suited for high-flow service work.

The 1185-1524-A-BUXX fits applications where increased hose volume and extended reach are required. The open drum design accommodates long hose lengths while the motor drive option reduces operator fatigue during repeated deployment and retrieval cycles. The reel is built for stationary and mobile installations, making it appropriate for service trucks, shop bays, and fixed fluid delivery stations. Its mounting pattern is integrated into the steel base for straightforward installation and removal without specialized tooling.

Key Features

• Low-profile outlet riser and open drum slot design prevents hose crimping and ensures flat, smooth hose wrap
• CNC robotically welded one-piece 12-gauge steel A-frame base for superior structural strength — not bolted
• Electroless nickel plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated horizontal surface mount bearings for smooth, easy rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Aluminum body 4-vane air motor included for motor-driven operation

Compatibility

The 1185-1524-A-BUXX is part of the COXREELS 1185 Series, designed for use with large-diameter hose requiring a 1-1/2 inch ID connection in high-volume hand crank or motor driven reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and applicable safety codes. Depressurize and drain any connected hose or fluid system before mounting or servicing the reel. The integrated base mounting pattern accommodates standard fastener layouts — ensure the mounting surface is rated to support the reel weight plus the loaded hose assembly. Verify NPT swivel connections are properly sealed with thread sealant appropriate for the fluid service before returning the system to operation.

Technical Specifications

• Hose Inner Diameter: 1-1/2 inches
• Hose Outer Diameter: 2-1/16 inches
• Drive Type: Hand crank and motor driven
• Motor Type: Aluminum body 4-vane air motor
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel: Electroless nickel plated steel, 90-degree full-flow NPT with ball bearings
• Finish: CPC powder coat, chip and rust resistant
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 89 pounds
• UPC: 674255854154

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1524-A-BUXX
