Coxreels 1185-1124 Hose Reel 1.5 Inch Id 50 Ft

Product Description

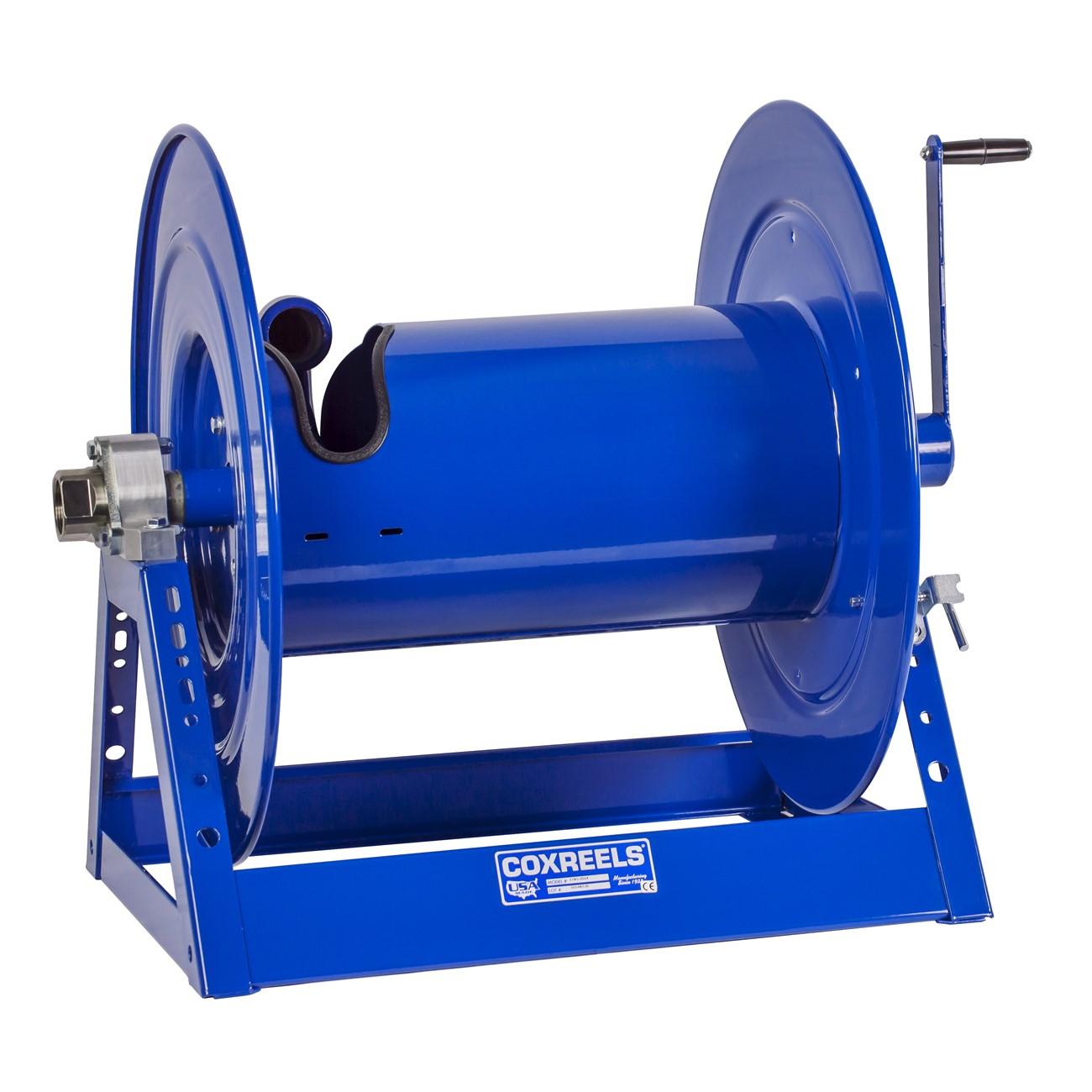

The COXREELS 1185-1124 is a heavy-duty hand crank hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Part of the 1185 Series, this reel accommodates hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter at a 50-foot length capacity. The all-welded steel A-frame base provides structural rigidity to handle the added weight of large-diameter hose without flexing or shifting during operation. CNC robotically spun and ribbed discs, rolled edges, and an exclusive low-profile outlet riser work together to eliminate hose crimping and maintain a flat, smooth wrap on every retraction. Installed by industrial maintenance techs and mobile service professionals.

The 1185-1124 is suited for demanding applications where standard small-bore reels cannot deliver the required flow volume. Typical uses include mobile lube trucks, industrial wash-down stations, bulk fluid transfer, and heavy equipment service bays. The open drum slot design and low-profile riser reduce hose stress at the point of exit, extending hose service life. Direct hand crank retraction and a long-handled locking pin make this reel practical in environments where power-driven retraction is not available or required.

Key Features

• 1.5-inch ID hose capacity with low-profile outlet riser for non-crimping, flat hose wrap
• All CNC robotically welded 0.25-inch steel one-piece A-frame base for superior structural strength
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long-term durability
• Direct hand crank retraction with long-handled locking pin to secure reel position

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1185 Series for applications requiring 1.5-inch ID large-diameter hose handling.

Installation Notes

Installation is typically performed by industrial or mobile service technicians familiar with large-bore fluid transfer systems. Shut off all fluid supply and depressurize the hose completely before mounting or connecting the reel. The mounting pattern is located in the steel base for straightforward installation and detachment. Ensure the mounting surface is rated to support the loaded reel weight and consult applicable facility or vehicle safety standards before securing to mobile equipment.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 50 feet
• Frame Material: 0.25-inch welded steel
• Swivel Material: Electroless nickel plated steel
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 76 pounds
• UPC: 674255833555

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124
