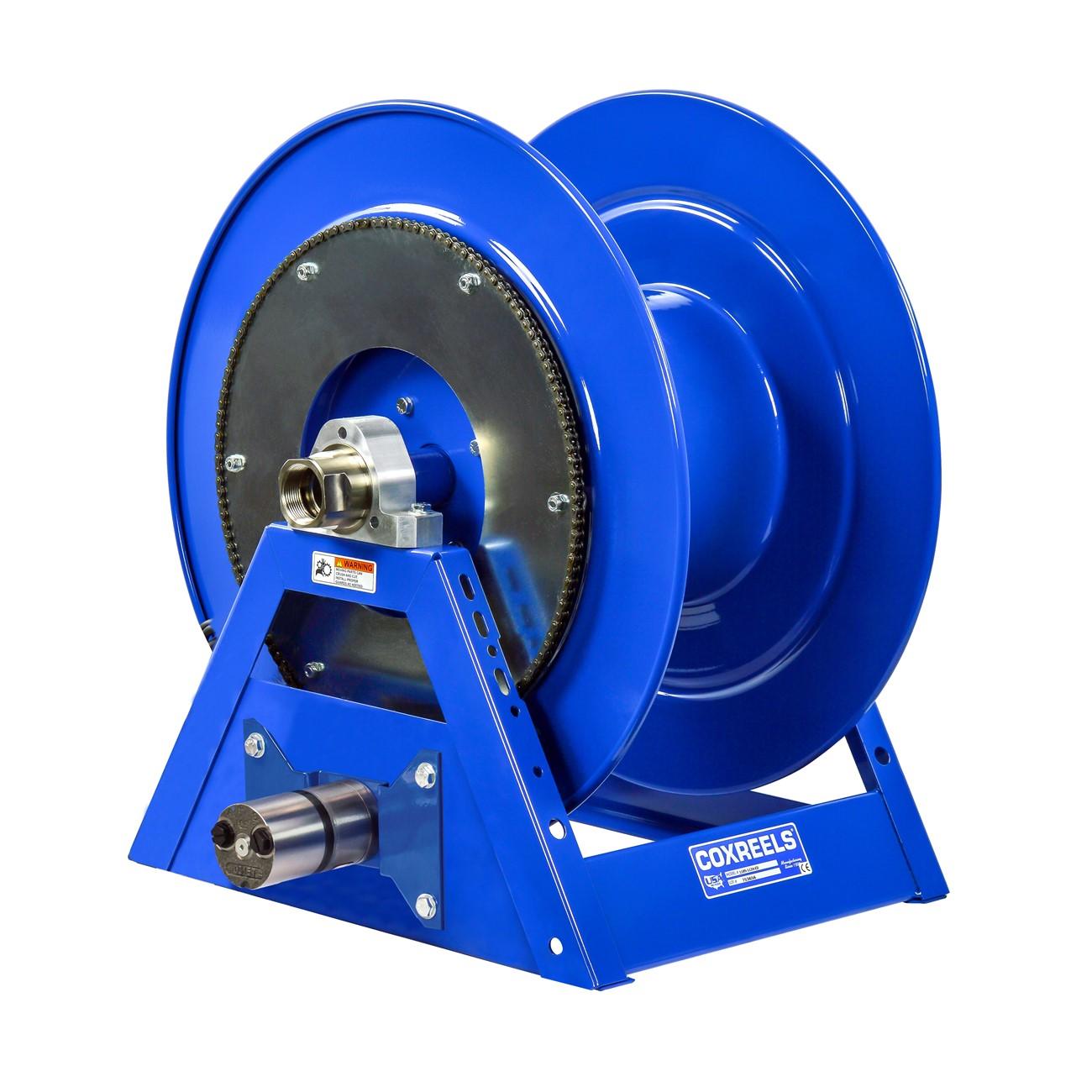

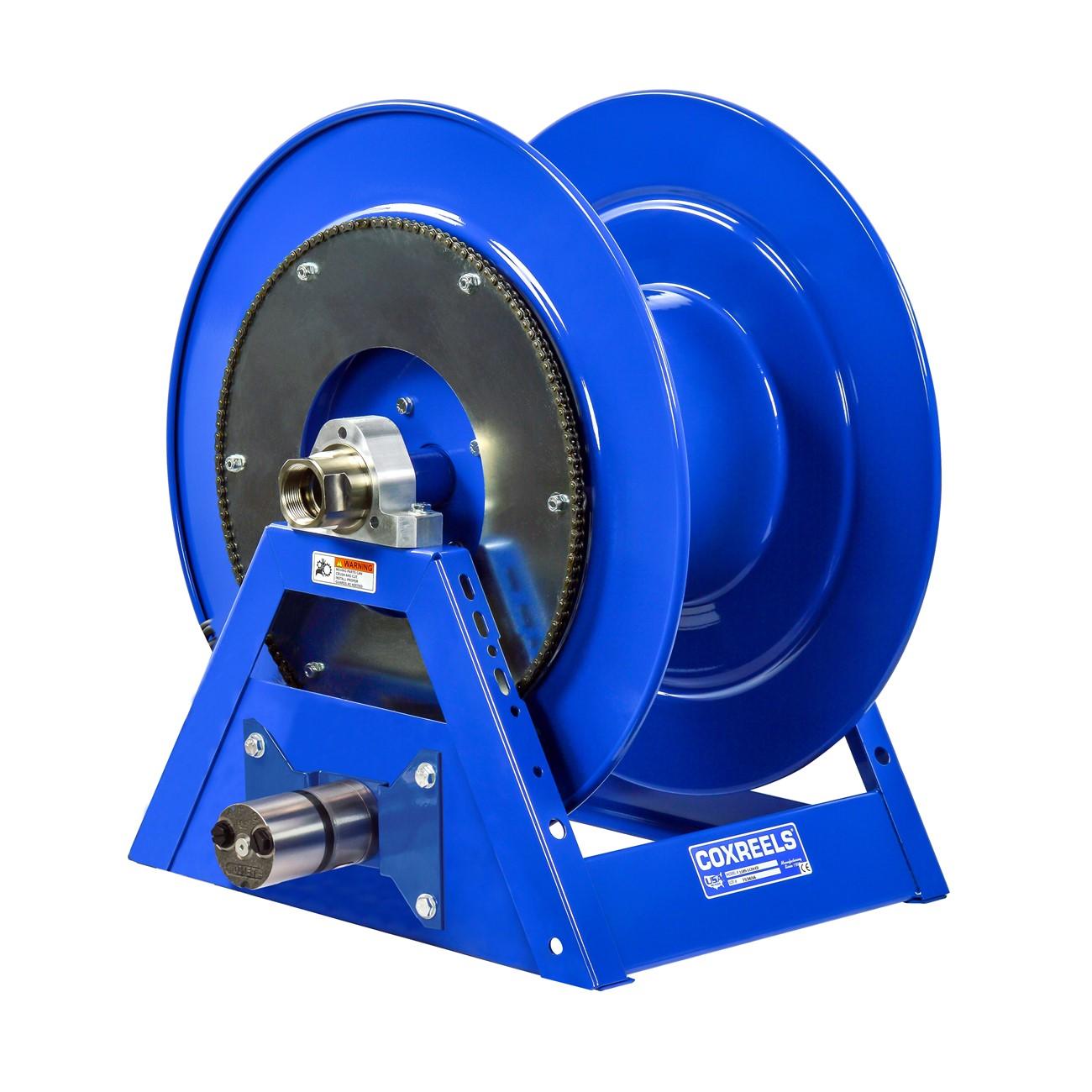

Coxreels 1185-1124-H Hose Reel 1.5 in Id 50 Ft Motor Driven

Product Description

The COXREELS 1185-1124-H is a heavy-duty motor-driven hose reel from the 1185 Series, engineered for high-volume fluid delivery through large-diameter hose. It features a 1.5-inch ID hose path with a 2.0625-inch OD and accommodates up to 50 feet of hose. The all-welded steel A-frame base, CNC robotically spun and ribbed discs, and exclusive low-profile outlet riser work together to deliver a non-crimping, flat smooth hose wrap under load. Licensed HVAC, plumbing, and industrial service technicians working with high-flow applications will find this reel built to handle the extra hose weight without compromising rotation or structural integrity.

The 1185-1124-H is suited for demanding mobile and stationary service applications where large-diameter hose must be deployed and retracted reliably. The open drum slot design keeps hose wrap flat and reduces kinking during repeated use. The hydraulic motor drive reduces manual effort on long hose runs, making this reel appropriate for truck-mount or fixed-station service setups in industrial, commercial, and heavy-duty trade environments.

Key Features

• Hydraulic motor drive for powered hose retrieval on large-diameter, high-weight hose runs
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wrap
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 0.25-inch steel A-frame base for superior structural integrity — no bolted joints
• In-line electroless nickel plated steel full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CPC powder coat finish — chip resistant and rust inhibiting for extended service life
• Permanently lubricated horizontal surface mount bearings for consistent, easy rotation

Compatibility

Designed as an OEM-style replacement or direct-fit solution for large-diameter hose reel applications within the COXREELS 1185 Series platform.

Installation Notes

Installation is typically performed by industrial service technicians or fleet mechanics. Disconnect and depressurize the hydraulic supply line before mounting or servicing the motor drive assembly. Use the steel base mounting pattern for secure attachment to the vehicle bed or fixed station surface. Consult applicable local codes and the hydraulic system manufacturer specifications before connecting the motor supply.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Capacity: 50 feet
• Drive Type: Hydraulic motor
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 82 pounds
• Swivel Type: In-line electroless nickel plated steel full-flow NPT
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124-H
