Coxreels 1185-1124-EF Hose Reel 1.5 in Id 50 Ft Motor Driven

Product Description

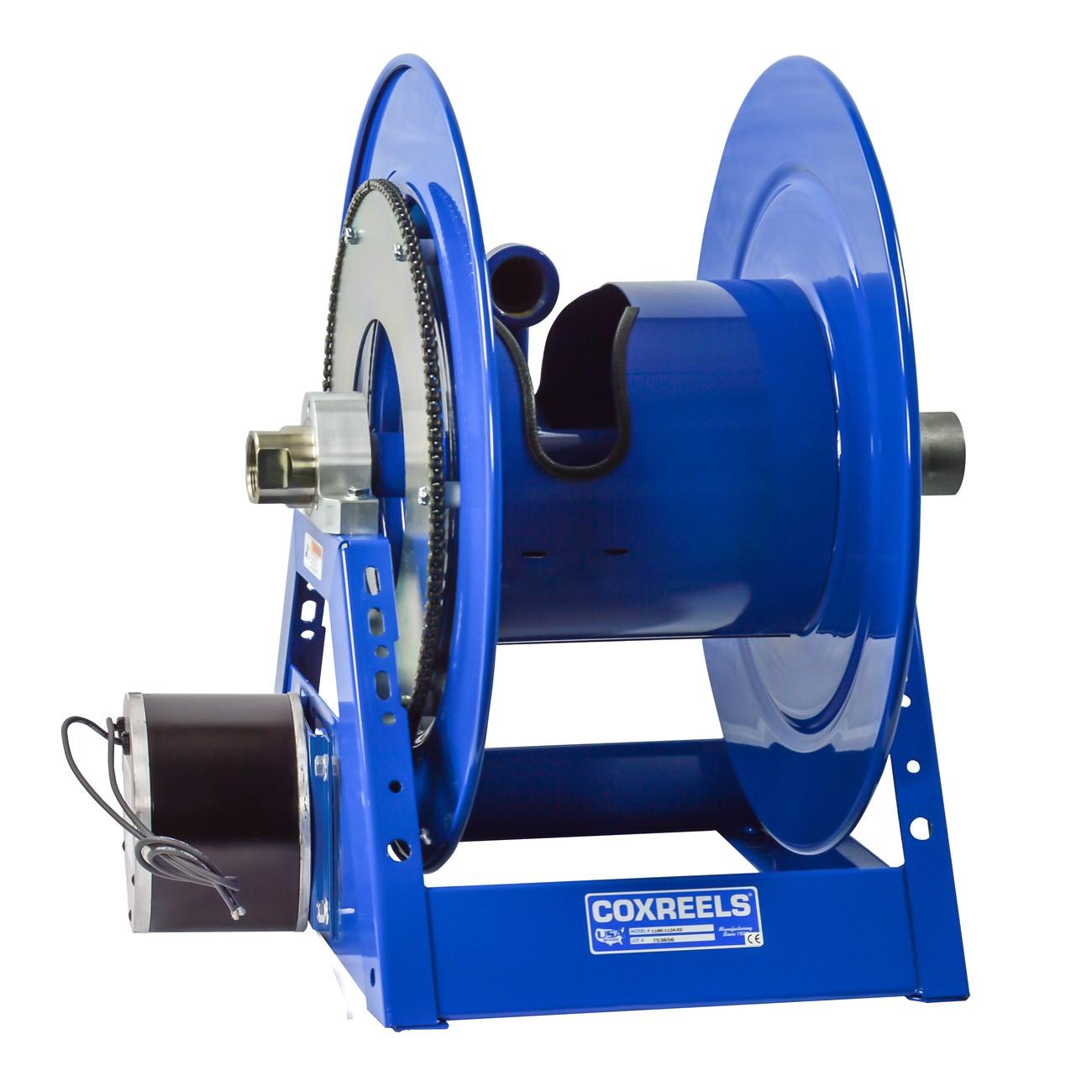

The COXREELS 1185-1124-EF is a heavy-duty motor-driven hose reel from the 1185 Series, built for high-volume fluid delivery applications requiring long runs of large-diameter hose. It features a 1.5-inch inner diameter hose path and accommodates up to 50 feet of hose. The unit runs on a 24-volt DC, 1/3 HP reversible electric motor and includes a hand crank as well. An all-welded steel A-frame base and CNC robotically spun disc construction give this reel the structural rigidity needed to handle the added weight of large-bore hose without performance loss. Licensed HVAC, plumbing, and industrial service contractors are the primary installers of this equipment.

The 1185-1124-EF is suited for mobile service rigs, shop installations, and stationary applications where large volumes of fluid or air must be delivered through extended hose lengths. The open drum slot and low-profile outlet riser design promote a flat, non-crimping hose wrap that protects hose integrity during repeated use. This reel targets commercial and industrial environments where hose longevity and reliable high-flow delivery are critical to daily operations.

Key Features

• 24-volt DC, 1/3 HP reversible electric motor for powered hose retrieval
• 1.5-inch inner diameter, 2.0625-inch outer diameter hose path for high-volume flow
• Exclusive low-profile outlet riser and open drum slot for flat, non-crimping hose wrap
• One-piece all-welded 0.25-inch steel A-frame base for superior structural strength
• CNC robotically spun and ribbed discs with rolled edges for durability and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance without removing reel from mount
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and mobile service applications requiring large-diameter hose management in the COXREELS 1185 Series configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial reel mounting and low-voltage DC electrical connections. Power down all electrical circuits before wiring the 24-volt DC motor. Secure the reel to a structurally adequate surface using the mounting pattern integrated into the steel base. Verify hose connections at the NPT swivel are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 50 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 0.25-inch welded steel
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 89 pounds
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• UPC: 674255852624

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124-EF
