Coxreels 1185-1124-C Hose Reel 1.5 in Id 50 Ft

Product Description

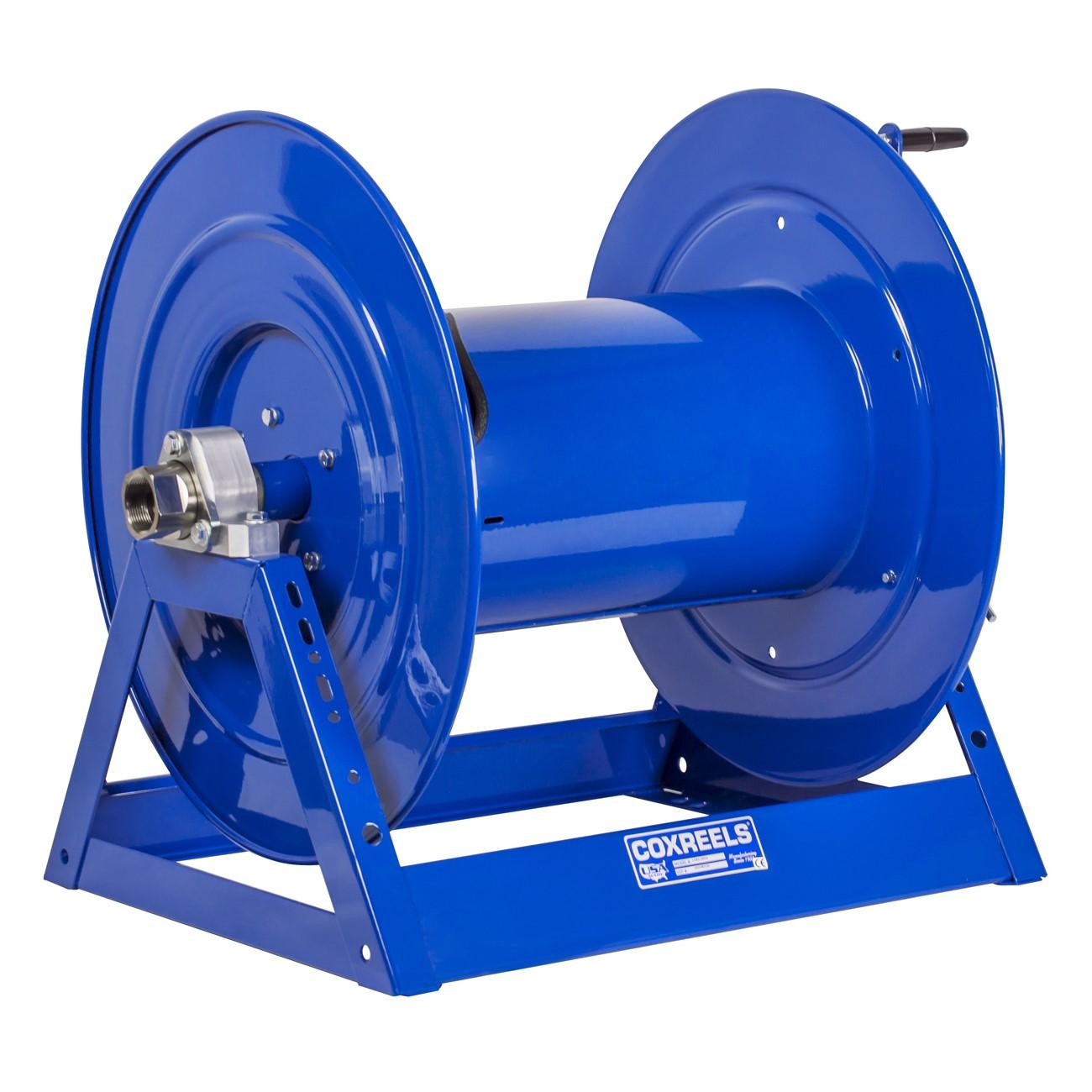

The COXREELS 1185-1124-C is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Part of the COXREELS 1185 Series, this reel features an all-welded steel A-frame base and an open drum design with a low-profile outlet riser that promotes a flat, non-crimping hose wrap. The CNC-spun ribbed discs add structural rigidity while protecting the hose and the operator. At 79 pounds, the unit is engineered to handle the added weight of large-diameter hose without compromising performance in demanding mobile or fixed installations. Licensed contractors and service technicians in industrial, municipal, and commercial settings are the primary installers.

The 1185-1124-C is suited for commercial and industrial environments where high-flow delivery through large-diameter hose is required. Its 1.5-inch inner diameter and 50-foot hose capacity make it appropriate for applications such as water transfer, petroleum delivery, chemical dispensing, and similar high-volume fluid handling tasks. The reel's sturdy frame and mobile-compatible construction support both stationary mounting and vehicle or equipment-mounted deployment. The front bevel-geared crank allows mechanical retraction without power, and the locking pin secures the drum position during service or transport.

Key Features

• Open drum design with exclusive low-profile outlet riser prevents hose crimping and promotes flat, smooth hose wrap
• All CNC robotically welded 0.25-inch steel A-frame base — one piece, not bolted — for superior structural strength
• CNC robotically spun and ribbed discs with rolled edges for hose protection, operator safety, and long-term durability
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition; front bevel-geared crank and long-handled locking pin included

Compatibility

Designed as an OEM-style reel for use with large-diameter industrial hose assemblies in high-volume fluid transfer applications; consult COXREELS documentation to confirm hose end fitting and motor drive compatibility for your specific configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and applicable safety codes. Before mounting or servicing, shut off and depressurize all connected fluid lines. Secure the reel to a flat, load-rated mounting surface using the integrated base mounting pattern. Verify swivel fittings and NPT connections are properly sealed and torqued to fitting manufacturer specifications before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 50 feet
• Weight: 79 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Frame Material: 0.25-inch welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UOM: Each
• UPC: 674255833692

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124-C
