Coxreels 1185-1124-BUXX Storage Hose Reel 1.5 Inch Id

Product Description

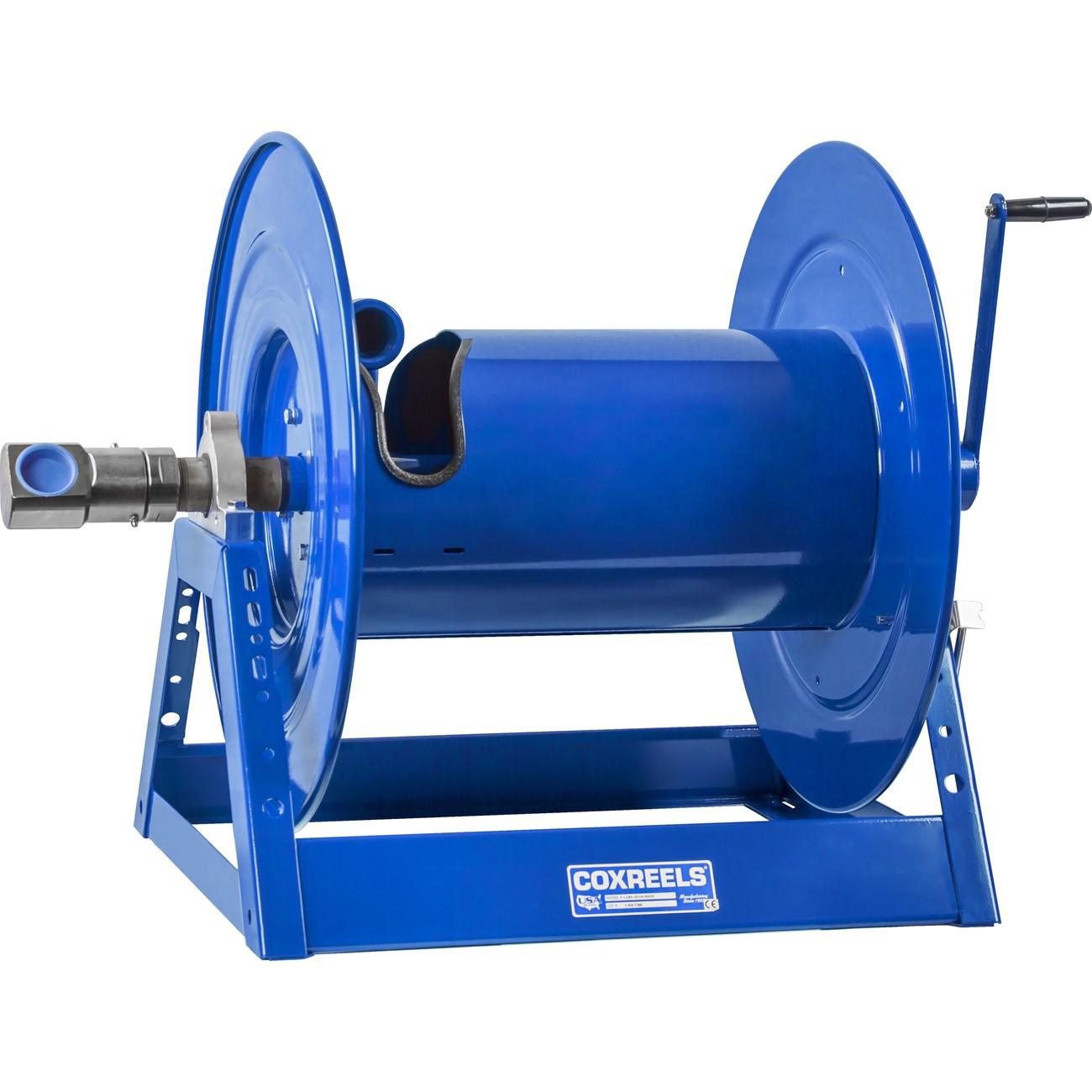

The COXREELS 1185-1124-BUXX is a heavy-duty storage hose reel built for industrial and trade applications requiring reliable, high-cycle hose management. The reel features CNC robotically spun and ribbed discs with rolled edges for structural strength, operator safety, and hose protection. A direct hand crank provides mechanical retraction, and the all-welded steel A-frame base delivers a rigid mount without bolted joints. The electroless nickel-plated steel swivel includes full-flow NPT threading and ball bearings for smooth rotation. At 76 pounds, this is a substantial unit suited for stationary or mobile installation in demanding service environments.

This reel is designed for storage and retrieval of long-run materials including hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain. It is applicable in industrial facilities, fleet maintenance bays, agricultural operations, and construction sites where a durable, high-capacity reel is required. The low-profile outlet riser and open drum slot provide a non-crimping, flat smooth hose wrap across the full drum width. Installation suits either fixed stationary mounts or mobile unit configurations.

Key Features

• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for consistent, easy rotation
• Long-handled locking pin, direct hand crank, and chip-resistant CPC powder coat finish for long-term field durability

Compatibility

Designed as an OEM-style replacement or direct-install storage reel for industrial and trade hose management systems requiring a 1.5-inch ID inlet configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial reel mounting practices. Power down or depressurize any connected fluid or pneumatic line before mounting or servicing the reel. The integrated base mounting pattern allows direct fastening to stationary surfaces or mobile platforms using standard hardware. Verify swivel thread compatibility with the supply line before final connection.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 76 pounds
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Retraction Method: Direct hand crank
• Mount Type: Horizontal surface mount, stationary or mobile
• UPC: 674255833623

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124-BUXX
