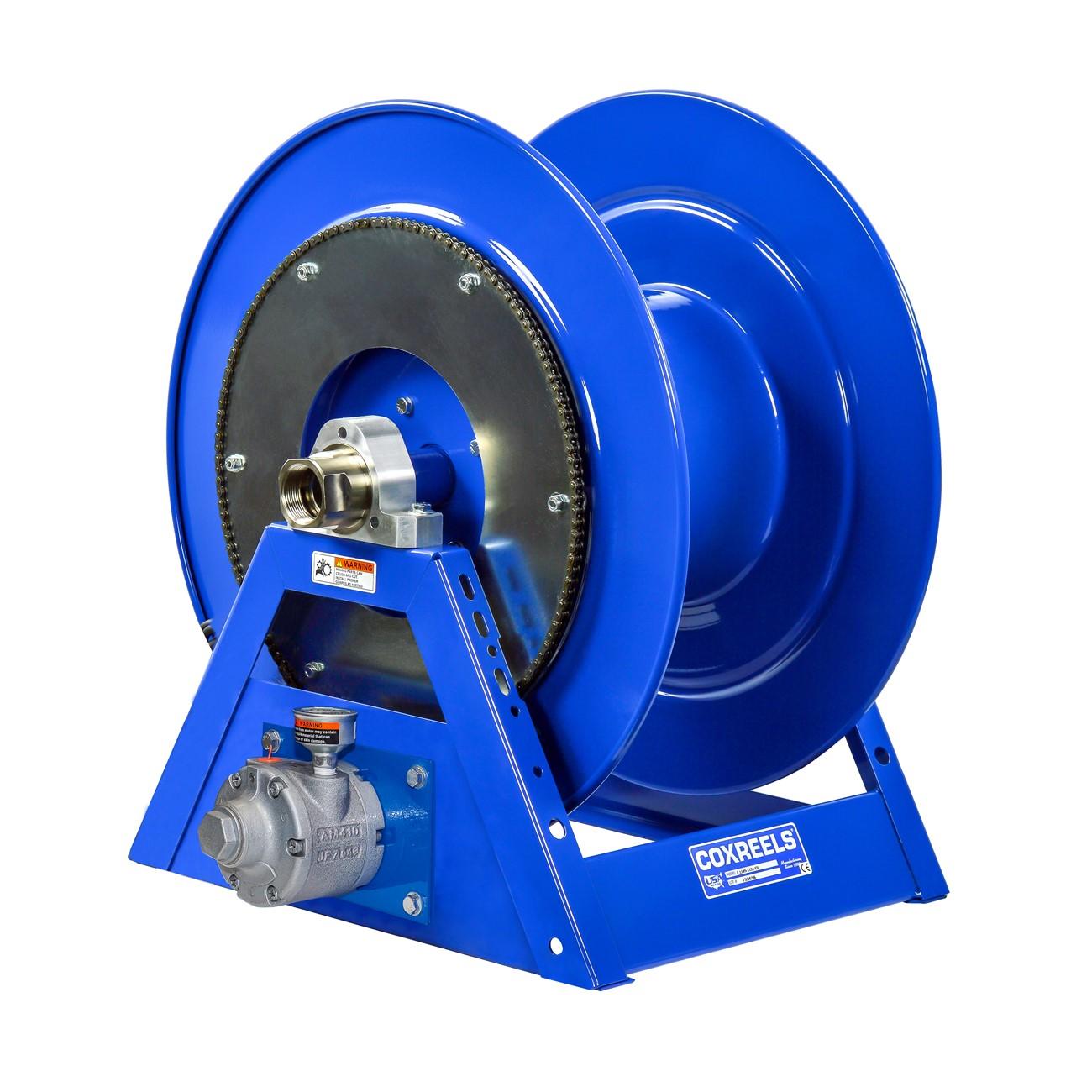

Coxreels 1185-1124-AB Hose Reel 1.5 in Id 50 Ft Motor Driven

Product Description

The COXREELS 1185-1124-AB is a heavy-duty hose reel from the 1185 Series, built for high-volume fluid delivery applications requiring long runs of large-diameter hose. This reel features an aluminum body air motor drive with a 6-vane design for powered retraction and a hand crank option for manual operation. The hose path uses an exclusive low-profile outlet riser and open drum slot design that keeps the hose wrapping flat and smooth without crimping. The all-welded steel A-frame base provides the structural rigidity needed to support heavy hose loads, including in demanding mobile applications. Licensed HVAC, plumbing, and industrial service professionals typically specify this reel for bulk fluid transfer or high-flow air delivery setups.

The 1185-1124-AB is intended for applications that demand high flow rates and extended hose lengths. The 1.5-inch ID inlet and 2.0625-inch OD dimensions suit large-diameter industrial hose rated for high-volume delivery. The reel accommodates up to 50 feet of hose and is suited for both stationary and mobile service rigs. Its open drum construction and heavy-gauge disc design make it well-suited for environments where durability and hose protection are critical, such as fleet service bays, industrial plants, and mobile maintenance vehicles.

Key Features

• Aluminum body air motor with 6-vane design for powered hose retraction
• Low-profile outlet riser and open drum slot provide a non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 0.25-inch steel A-frame base — no bolted joints
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance without removing reel from mount
• CPC powder coat finish resists chips and rust for long service life
• Permanently lubricated horizontal surface mount bearings for smooth rotation

Compatibility

Designed as an OEM-style replacement or direct-fit reel for high-volume industrial and mobile service applications requiring 1.5-inch ID large-diameter hose management.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer or compressed air system requirements. Depressurize the supply line completely before connecting or disconnecting hose fittings. The mounting pattern is located in the steel base — use fasteners appropriate for the mounting surface and load rating of the reel at 84 pounds. Verify air motor supply pressure is within the range specified by the operating system before energizing the motor drive.

Technical Specifications

• Hose Inside Diameter (ID): 1.5 inches
• Hose Outside Diameter (OD): 2.0625 inches
• Hose Length: 50 feet
• Drive Type: Air motor (aluminum body, 6-vane) with hand crank
• Frame Material: 0.25-inch steel, CNC robotically welded
• Swivel Material: Electroless nickel plated steel, full-flow NPT
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Bearings: Permanently lubricated horizontal surface mount
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 84 pounds
• UPC: 674255833647

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124-AB
