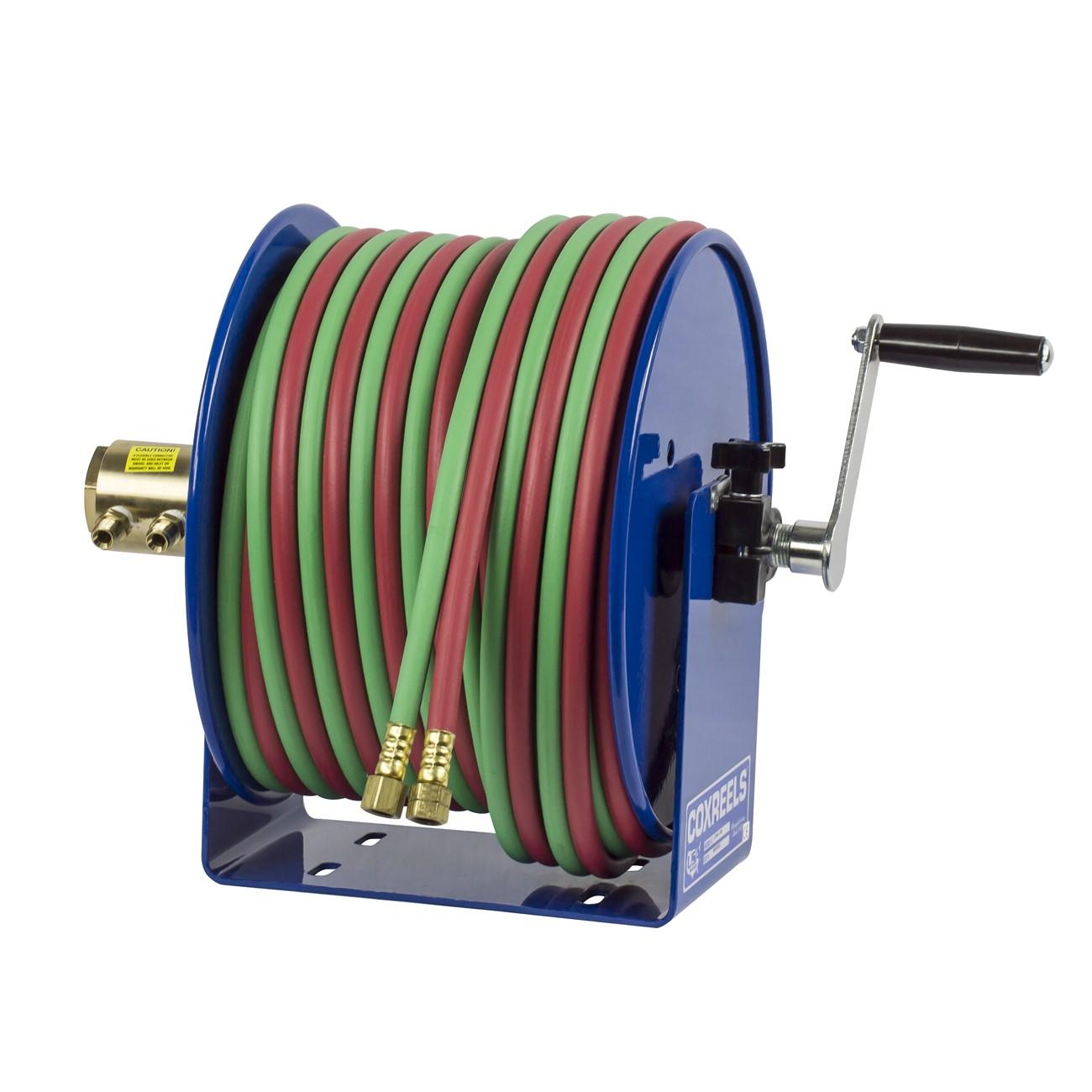

Coxreels 117WT-1-200 Welding Hose Reel 1/4 in 200 Ft

Product Description

The COXREELS 117WT-1-200 is a hand-crank welding gas hose reel from the 100W Series, designed for managing welding gas supply hose in commercial and industrial work environments. It accepts 1/4 inch ID hose up to 200 feet and retracts manually via a direct hand crank. The frame is fabricated from heavy-gauge steel in a one-piece U-shaped design, keeping the unit compact and lightweight without sacrificing rigidity. An external 90-degree full-flow dual-ported brass swivel with Viton seals delivers both inlet and outlet connections from the same side of the reel, eliminating the need to dismount the unit for hose connections. All models in this series are supplied without hose.

The 117WT-1-200 is suited for welding stations, fabrication shops, and industrial maintenance applications where welding gas hose management is required. The compact footprint makes it practical for both fixed wall-mount and portable cart installations. It is appropriate for use with common welding gases where a 1/4 inch ID hose and brass swivel components are compatible with the gas being used. This reel is intended for professional installation and daily use in commercial and industrial settings.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections on the same side, no dismounting required
• One-piece heavy-gauge all-steel U-shaped frame for compact, rigid construction
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• CPC powder coat finish resists chips and rust for long service life
• Composite bearing supports smooth rotation; direct hand crank provides mechanical retraction without power

Compatibility

Designed as an OEM-style replacement or new-installation welding gas hose reel for commercial and industrial applications requiring 1/4 inch ID hose up to 200 feet in length. Supplied less hose.

Installation Notes

Installation is typically performed by a qualified welding equipment technician or industrial maintenance professional. Shut off all gas supply valves and verify zero pressure in the hose before mounting or connecting the reel. Follow applicable federal, state, and local compressed gas and welding safety codes when routing and securing hose connections. Do not exceed the hose or fitting ratings for the specific welding gas in use.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Capacity: 200 feet
• Retraction Type: Hand Crank
• Swivel Type: External 90-degree full-flow dual-ported brass with Viton seals
• Frame Material: Heavy-gauge all-steel U-shaped one-piece construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 68 pounds
• UPC: 674255851559

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117WT-1-200
