Coxreels 117WL-1-200 Welding Hose Reel 200 Ft Hand Crank

Product Description

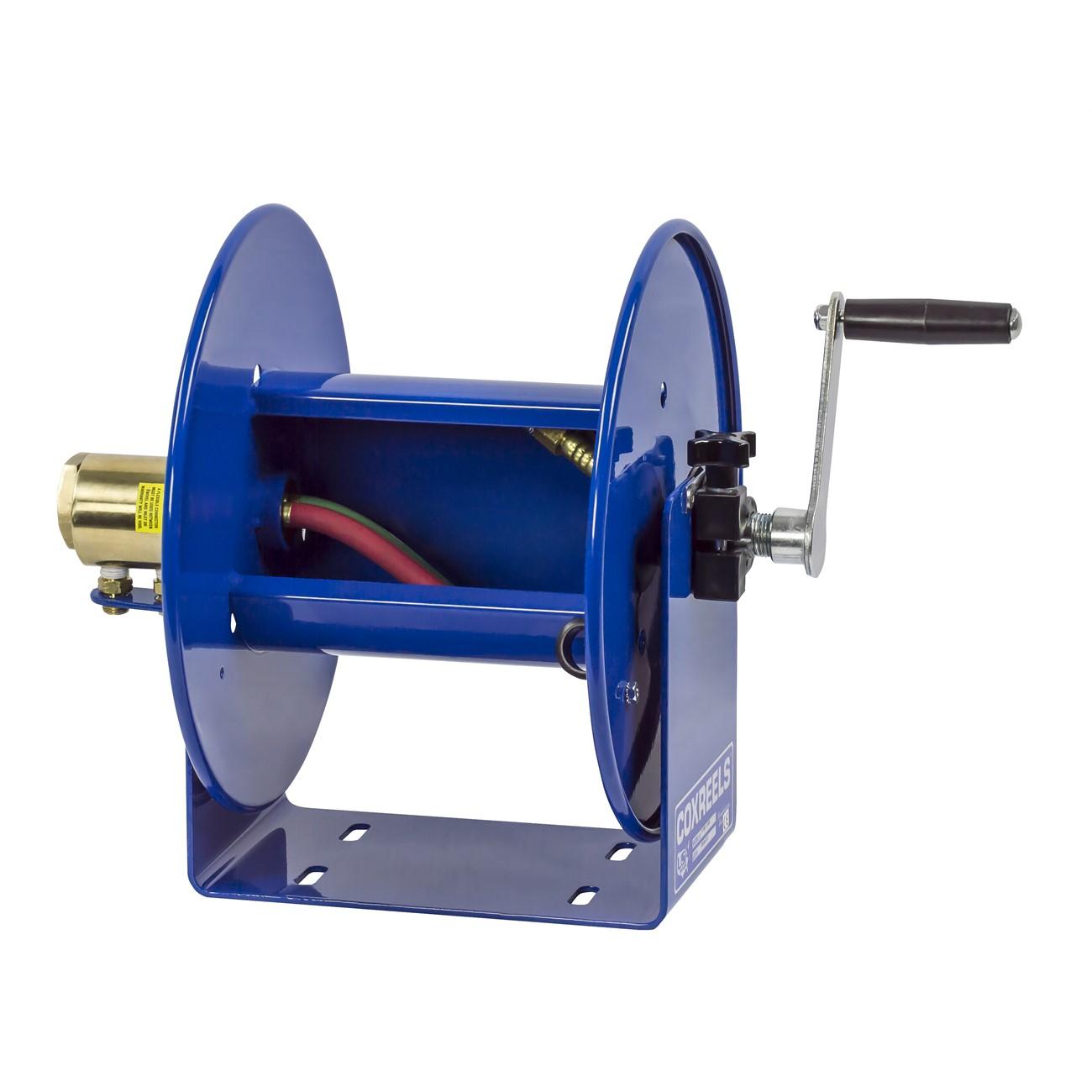

The COXREELS 117WL-1-200 is a hand crank welding gas hose reel from the 100W Series, designed for storing and dispensing welding gas hose in commercial and industrial environments. Built on a one-piece heavy-gauge steel U-shaped frame, it accepts 1/4-inch ID hose up to 200 feet in length. The reel ships without hose. An external 90-degree dual-ported brass swivel with VITON seals handles the gas connection, and an adjustable tension brake controls draw speed and prevents free-wheeling. Licensed trade professionals and welding service technicians are the primary installers.

The 117WL-1-200 is suited for welding shops, fabrication facilities, and industrial service environments where welding gas lines need organized, retractable storage. The compact U-frame footprint makes it practical in tight bays or on portable carts. Both inlet and outlet connections are accessible from the same side of the reel, eliminating the need to dismount the unit during hose connection or disconnection. All listed models are supplied without hose.

Key Features

• External 90-degree full-flow dual-ported brass swivel with VITON seals — both connections accessible from one side
• One-piece heavy-gauge all-steel U-shaped frame for compact, durable mounting
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage
• CPC powder coat finish — chip resistant and rust inhibiting for long service life
• Composite bearing for smooth rotation with direct hand crank retraction

Compatibility

Designed as an OEM-style welding gas hose reel for 1/4-inch ID hose applications up to 200 feet in commercial and industrial welding service settings.

Installation Notes

Installation is typically performed by a qualified welding technician or pipefitter familiar with compressed gas plumbing. Shut off all gas supply valves and relieve line pressure before connecting or disconnecting fittings at the swivel. Secure the reel to a fixed surface or mounting bracket rated for the unit weight before pressurizing the system. Follow all applicable codes and compressed gas safety standards for your jurisdiction.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Maximum Hose Length: 200 feet
• Retraction Method: Hand Crank
• Swivel Material: Brass with VITON Seals
• Frame Construction: All Steel
• Finish: CPC Powder Coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 30 pounds
• Sold As: Each (hose not included)

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117WL-1-200
