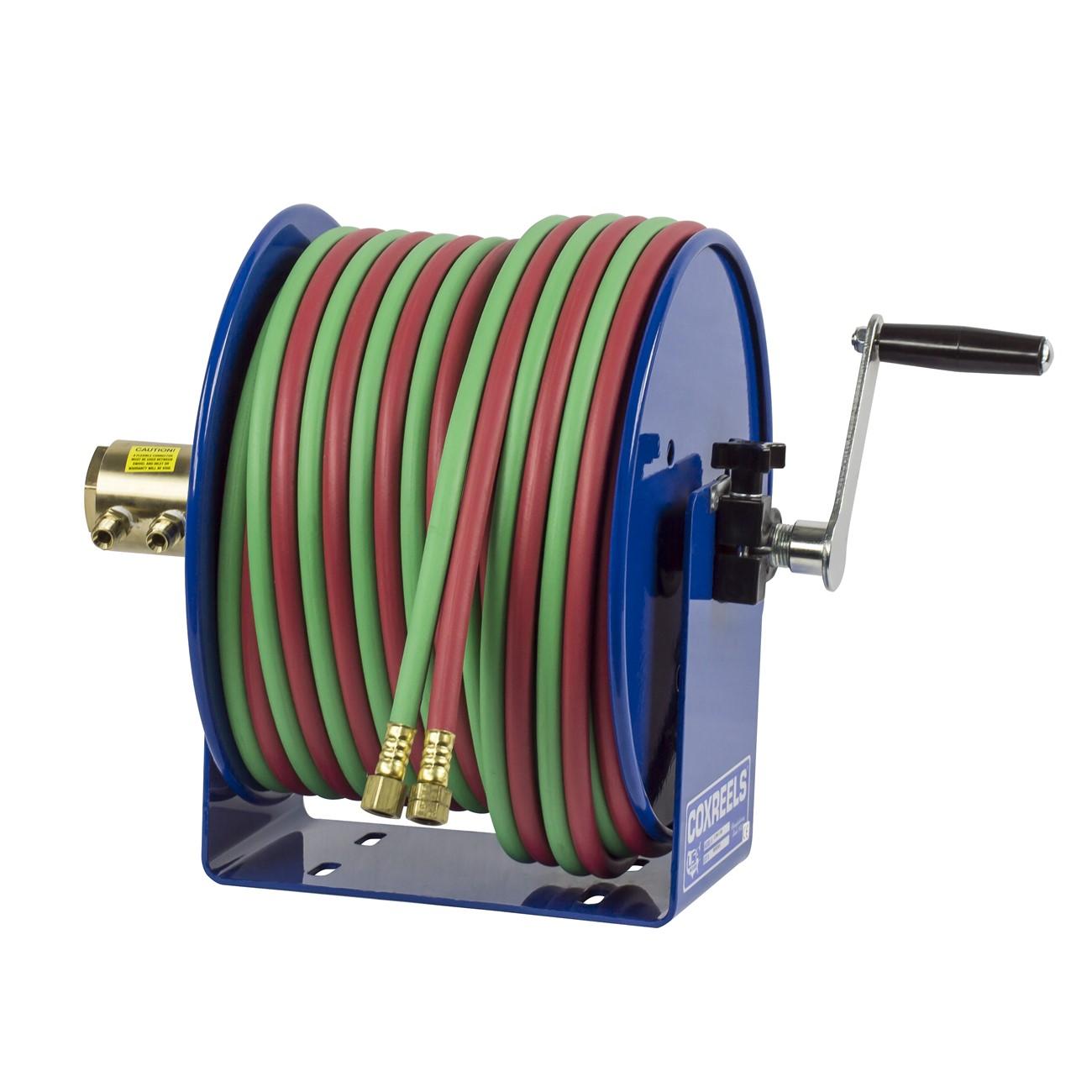

Coxreels 117W-1-200 Welding Hose Reel 200 Ft Hand Crank

Product Description

The COXREELS 117W-1-200 is a hand crank welding gas hose reel from the 100W Series, built for commercial and industrial environments where reliable gas hose management is required. The reel features a solid one-piece heavy-gauge all-steel U-shaped frame and CNC robotically spun ribbed discs with rolled edges for strength and hose protection. It accepts 1/4 inch ID hose up to 200 feet in length. The external 90-degree full-flow dual-ported brass swivel with Viton seals provides both inlet and outlet connections from the same side of the reel, eliminating the need to dismount the unit for connections. Licensed welding and gas professionals typically install this reel in shops, fabrication facilities, and industrial service bays. All models are supplied without hose.

The 117W-1-200 is designed for welding gas service in commercial and industrial settings. Its compact, lightweight profile makes it suitable for wall, bench, or overhead mounting in tight spaces. The adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage. The CPC powder coat finish resists chips and rust for long service life in demanding shop environments. This reel is a practical fit for welding supply stations, fabrication shops, and maintenance facilities where organized, safe hose routing is a daily requirement.

Key Features

• 1/4 inch ID capacity with 200 ft hose length capacity
• External 90-degree dual-ported brass swivel with Viton seals — both connections accessible from the same side
• Solid one-piece heavy-gauge all-steel U-shaped frame for durability and compact footprint
• CNC robotically spun ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls draw speed and prevents free-wheeling
• CPC powder coat finish resists chips and rust in heavy-duty environments
• Direct hand crank with composite bearing for smooth mechanical retraction

Compatibility

Designed for welding gas hose service applications in commercial and industrial settings using 1/4 inch ID hose up to 200 feet. Supplied less hose — compatible hose must be sourced separately and rated for welding gas service.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas systems and applicable safety codes. Shut off all gas supply at the source before mounting or connecting the reel. The U-shaped frame supports wall, bench, or overhead mounting — use fastener hardware rated for the mounting surface load. Do not exceed the rated hose ID or length capacity, and verify that all connected hose and fittings are rated for the gas type in use.

Technical Specifications

• Hose ID: 1/4 inch
• Maximum Hose Length: 200 ft
• Swivel Type: External 90-degree full-flow dual-ported brass with Viton seals
• Frame Material: Steel
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 68 pounds
• Drive Type: Hand crank
• UPC: 674255851542

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 117W-1-200
