Coxreels 1175-6-50 Hose Reel 1 Inch Id 50 Ft

Product Description

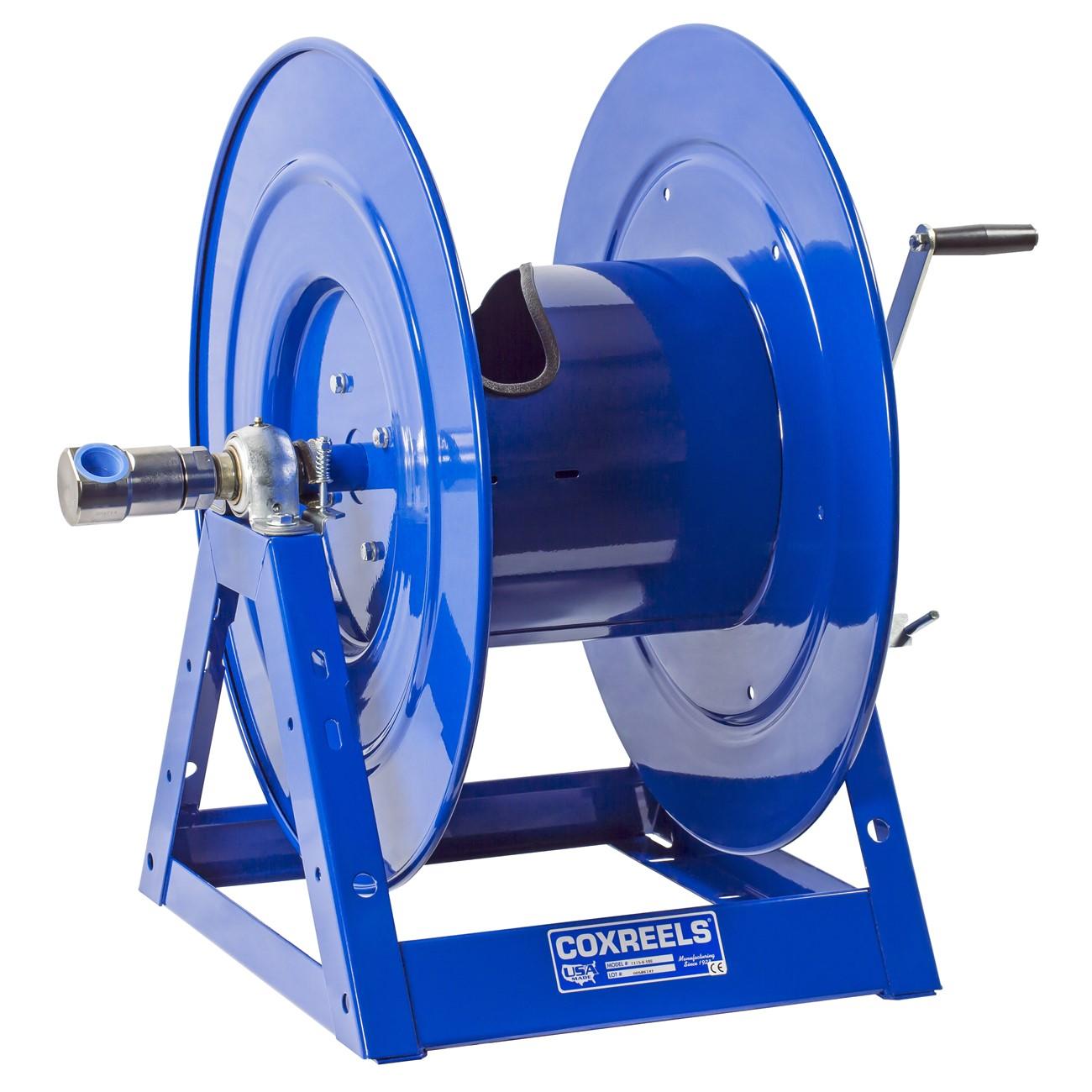

The COXREELS 1175-6-50 is a heavy-duty hand crank hose reel from the 1175 Series, engineered for industrial and commercial applications where larger hose capacities and greater hose diameters are required. It accepts hose with a 1-inch ID and 1-7/16-inch OD, with a 50-foot hose capacity. The reel is built on a one-piece all-welded 12-gauge steel A-frame base and features a CNC robotically spun disc design with an exclusive low-profile outlet riser and open drum slot for smooth, non-crimping hose wraps. Licensed contractors and industrial maintenance professionals specify this reel for high-demand fluid transfer setups.

The 1175-6-50 is suited for industrial, commercial, and heavy-duty trade service environments where larger hose diameters and longer hose runs are standard. Typical applications include fleet maintenance shops, manufacturing facilities, construction sites, and commercial service bays. The reel accommodates hand crank mechanical retraction and is also available in motorized configurations within the 1175 Series. Its mounting pattern is built directly into the steel base frame for straightforward installation and removal.

Key Features

• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity — no bolted joints
• Low-profile outlet riser and open drum slot design delivers flat, even, non-crimping hose wraps around the drum
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free operation
• CPC powder coat finish resists chipping and rust; adjustable tension brake prevents free-wheeling during payout

Compatibility

Designed as an OEM-style replacement and direct-application hose reel for industrial and commercial fluid transfer systems requiring 1-inch ID hose with up to 50-foot hose capacity.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed plumbing and mechanical contractors. Shut off and depressurize the fluid supply line completely before mounting or connecting the reel. Secure the reel to a structurally adequate surface using the mounting pattern in the steel base. Follow applicable codes and the manufacturer's instructions for inlet connection torque and swivel fitting assembly.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 50 feet
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Retraction Method: Direct hand crank (motorized option available in series)
• Finish: CPC chip-resistant powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 67 pounds
• UPC: 674255826427

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50
