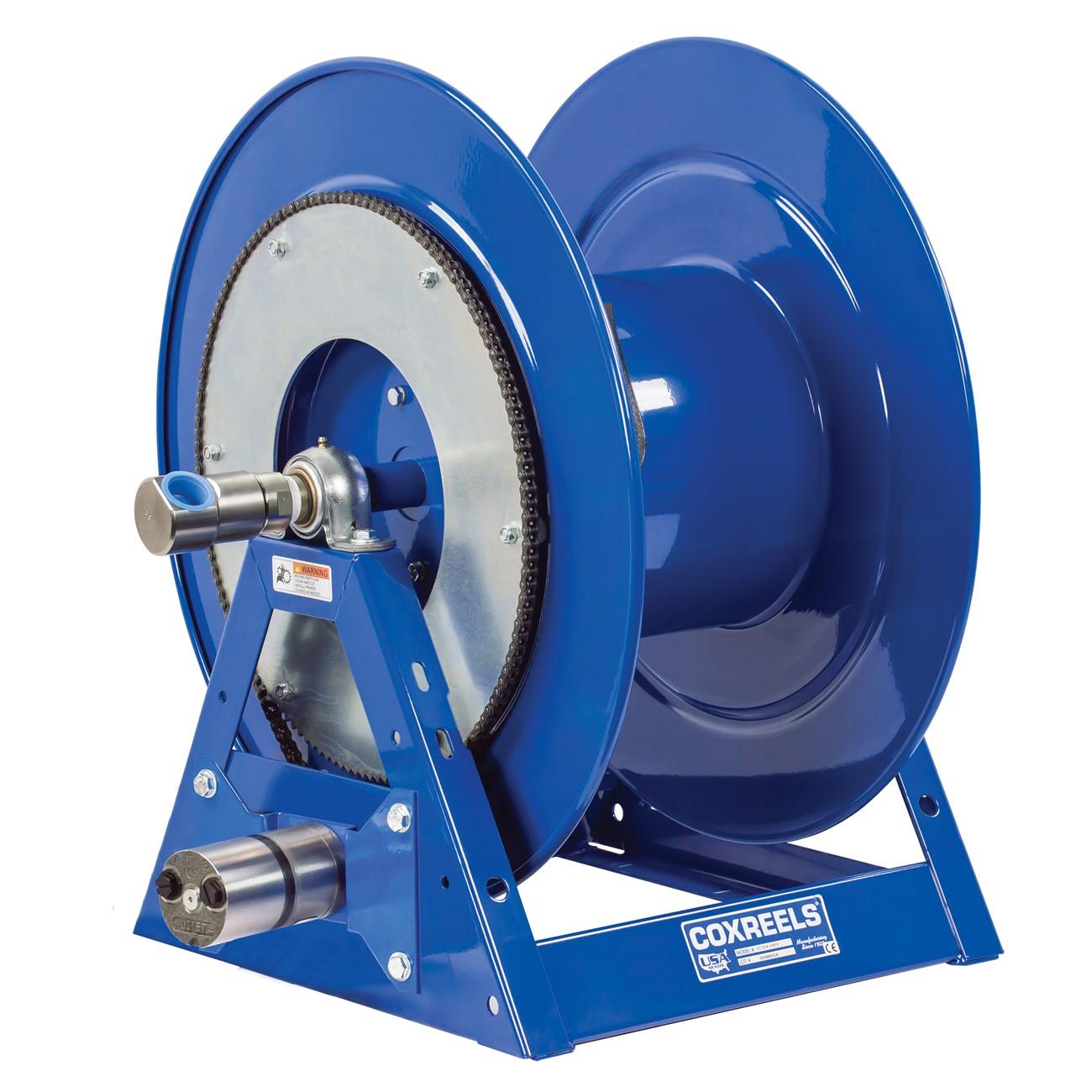

Coxreels 1175-6-50-H Hose Reel 1 Inch Id 50 Ft

Product Description

The COXREELS 1175-6-50-H is a heavy-duty hose reel from the 1175 Series, designed for demanding industrial and commercial hose management applications. It accommodates 1 inch inner diameter hose up to 50 feet in length and features a hydraulic motor drive alongside a hand crank option. The reel is built on a one-piece all-welded 12-gauge steel A-frame base, providing rigid, reliable structure for stationary or vehicle-mounted service. CNC robotically spun and ribbed discs with rolled edges protect hose integrity and operator safety throughout daily use. A nickel-plated steel 90-degree full-flow NPT swivel simplifies seal maintenance without removing the reel from its mount.

The 1175-6-50-H suits trade professionals in industrial maintenance, hydraulic service, lubrication systems, and heavy equipment service environments. The larger 1175 Series chassis is purpose-built for bigger hose diameters and higher capacities compared to lighter-duty reel platforms. Typical installations include service bays, fleet maintenance facilities, and fixed lube stations where consistent hose retrieval and a clean, flat wrap are required. A licensed mechanic or fluid-power technician is the typical installer for hydraulic-motor-driven reel configurations.

Key Features

• Hydraulic motor drive with hand crank option for flexible operation
• 1 inch ID hose capacity up to 50 feet
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish for long-lasting chip and rust resistance

Compatibility

Designed as an OEM-style replacement or direct-fit reel for industrial hose management systems requiring 1 inch ID hose with up to 50 feet of capacity in hand crank or hydraulic motor configurations.

Installation Notes

Installation is typically performed by a qualified fluid-power technician or licensed mechanic. Depressurize and drain all hydraulic or fluid lines before connecting or disconnecting hose fittings. Secure the A-frame base to a flat, rigid mounting surface using the integrated mounting pattern in the steel base. Verify that hydraulic motor supply and return lines meet the system pressure and flow requirements before startup.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 50 feet
• Drive Type: Hydraulic motor with hand crank
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Frame Material: 12-gauge steel, one-piece all-welded
• Finish: CPC powder coat
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 73 pounds
• UPC: 674255841932

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-50-H
